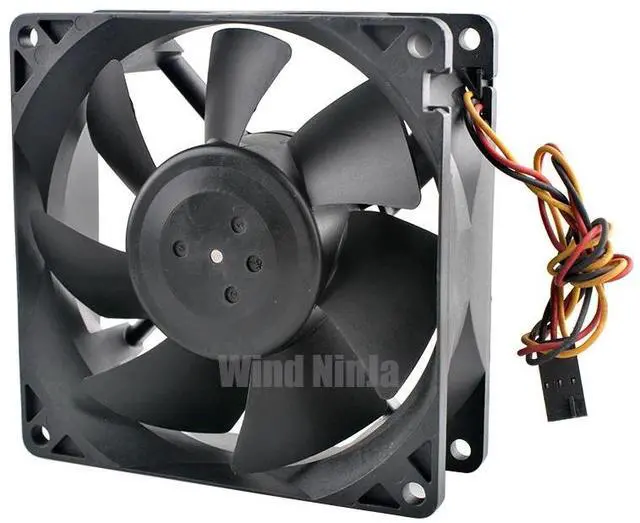

M35172-57 TA350DC 92mm x 92mm x 32mm DC12V 0.55A Silent Cooling Fan with Resistor Temperature Control for Server Chassis

Model: TA350DC/M35172-57
G3DEL Features: Temperature control probe (automatic speed adjustment)
Dimensions: 92x92x32mm (90x90x32mm)
Bearing: Double ball bearing
Voltage: 12V
Current: 0.55A
Speed: 1300~3600 RPM Automatic speed control
Airflow: 24.2 ~ 68.23
CFM Noise: 16~ 42.7 dBA
Note: Although the current is 0.55A, it will not reach this value under normal circumstances. If high-speed operation is required, short-circuit the two pins of the temperature control elementthat is, connect the two pins. The fan will run at full speed, with high speed, large airflow, and high noise.
Temperature control reference values: Low
speed state: At an ambient temperature of 25 degrees Celsius, the speed is automatically set to 1300 rpm, the airflow is 24.30 CFM, and the noise level is 16.5 dB.
High-speed operation: At an ambient temperature of 55 degrees Celsius, the fan speed is 3600 rpm, the airflow is 68.23 CFM, and the noise level is 42.7 dB.
Other operation: The fan automatically adjusts its speed based on the temperature sensor reading under different ambient temperatures, providing a corresponding automatic speed control.
