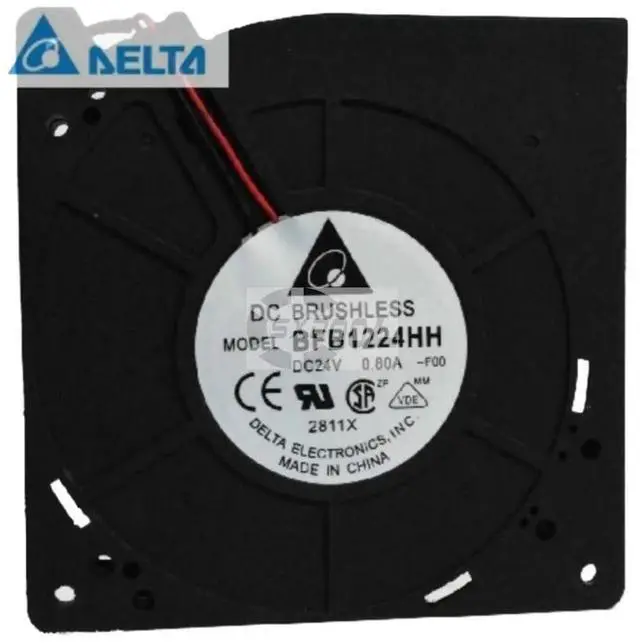

Suitable for BFB1224HH blower 12032 24V 0.80A centrifugal cooling servers, inverters, and PC chassis (120x120x32mm).
- Brandfor Fan Model: BFB1224HH - foo Dimensions: 120 * 120 * 32MM Pitch: 105mm Bearing: High-precision double ball bearing Voltage: 24V Starting Voltage: 16V Operating Voltage: 7.0-27.6V Current: 0.8A Power: 19.2W Speed: 2800RPM/250RPM Noise: 54dB A Airflow: 32.49CFM Cable Length: 10cm Wiring: 2P interface supports two-wire speed control. Fan frame: Injection molded, PBT+30% glass fiber, VO grade flame retardant. Fan blades: Injection molded, PBT+30% glass fiber, VO grade flame retardant. Fan rotation direction: Counterclockwise when viewed from the blade direction; Operating temperature: -10 to +70; Storage temperature: -40 to +70; Power range: ±15% of rated power; Insulation resistance: >500 megohms; Withstand voltage: Leakage current 0.5mA, 500V/1 minute; Service life: 80,000 hours at ambient temperature 25; Applications: Inverters, chassis cooling, power supply fan modification, water cooling auxiliary, game console cooling, high reliability server applications.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Brandfor Fan Model: BFB1224HH - foo
Dimensions: 120 * 120 * 32MM
Pitch: 105mm
Bearing: High-precision double ball bearing
Voltage: 24V
Starting Voltage: 16V
Operating Voltage: 7.0 - 27.6V
Current: 0.8A
Power: 19.2W
Speed: 2800RPM/250RPM
Noise: 54dB
A Airflow: 32.49CFM
Cable Length: 10cm
Wiring: 2P interface supports two-wire speed control.
Fan frame: Injection molded, PBT+30% glass fiber, VO grade flame retardant.
Fan blades: Injection molded, PBT+30% glass fiber, VO grade flame retardant.
Fan rotation direction: Counterclockwise when viewed from the blade direction;
Operating temperature: -10 to +70;
Storage temperature: -40 to +70;
Power range: ±15% of rated power;
Insulation resistance: >500 megohms;
Withstand voltage: Leakage current 0.5 mA, 500V/1 minute;
Service life: 80, 000 hours at ambient temperature 25;
Applications: Inverters, chassis cooling, power supply fan modification, water cooling auxiliary, game console cooling, high reliability server applications.
Dimensions: 120 * 120 * 32MM
Pitch: 105mm
Bearing: High-precision double ball bearing
Voltage: 24V
Starting Voltage: 16V
Operating Voltage: 7.0 - 27.6V
Current: 0.8A
Power: 19.2W
Speed: 2800RPM/250RPM
Noise: 54dB
A Airflow: 32.49CFM
Cable Length: 10cm
Wiring: 2P interface supports two-wire speed control.
Fan frame: Injection molded, PBT+30% glass fiber, VO grade flame retardant.
Fan blades: Injection molded, PBT+30% glass fiber, VO grade flame retardant.
Fan rotation direction: Counterclockwise when viewed from the blade direction;
Operating temperature: -10 to +70;
Storage temperature: -40 to +70;
Power range: ±15% of rated power;
Insulation resistance: >500 megohms;
Withstand voltage: Leakage current 0.5 mA, 500V/1 minute;
Service life: 80, 000 hours at ambient temperature 25;
Applications: Inverters, chassis cooling, power supply fan modification, water cooling auxiliary, game console cooling, high reliability server applications.
