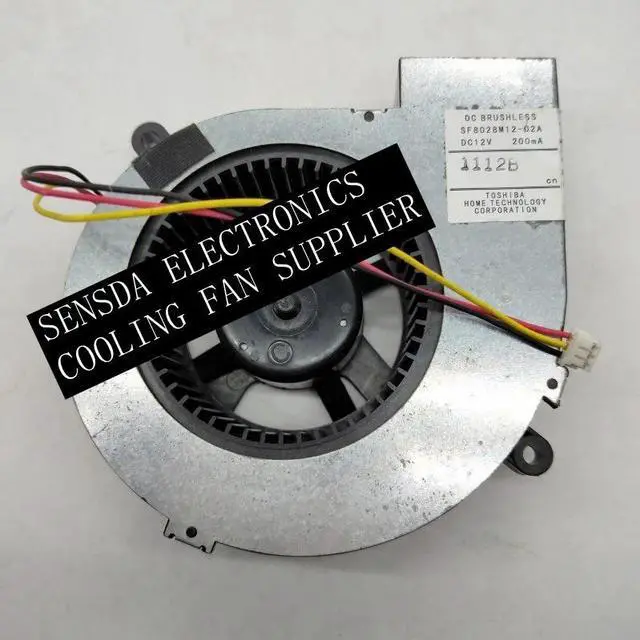

Projector blower EH-TW3300C SF8028M12-02A 200mA, cooling fan 8028 12V
- C-E01C Turbine Fan Voltage: DC5V-12V Current: 0.13A Current: 200mA Model: SF8028M12-02A Dimensions: 70x78x28mm Wiring: Three-wire system, positive and negative terminals, speed sensor wire. The main control chip uses the LB11861 dedicated fan driver IC, which can control the speed change through external signals and uses a Hall sensor. It has built-in low-loss, high-speed soft-switching function and motor protection function.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
C-E01C Turbine Fan Voltage: DC5V-12V
Current: 0.13A
Current: 200mA
Model: SF8028M12-02A
Dimensions: 70x78x28mm
Wiring: Three-wire system, positive and negative terminals, speed sensor wire. The main control chip uses the LB11861 dedicated fan driver IC, which can control the speed change through external signals and uses a Hall sensor. It has built-in low-loss, high-speed soft-switching function and motor protection function.
Current: 0.13A
Current: 200mA
Model: SF8028M12-02A
Dimensions: 70x78x28mm
Wiring: Three-wire system, positive and negative terminals, speed sensor wire. The main control chip uses the LB11861 dedicated fan driver IC, which can control the speed change through external signals and uses a Hall sensor. It has built-in low-loss, high-speed soft-switching function and motor protection function.
