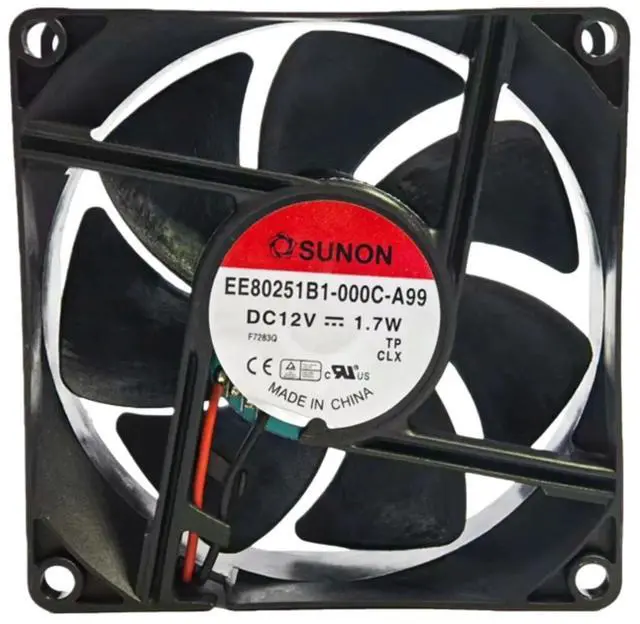

Suitable for EE80251B1-000C-A99 8025 12V DC ball bearing cooling fan, dimensions 80x80x25mm, airflow 51CFM, speed 3000RPM, 2-pin high-speed interface.

Product Description: High
Speed (51 CFM): This fan boasts speeds up to 3000 RPM, providing exceptional cooling for servers, 3D printers, and high-power electronic devices. Dual Ball
Bearings (Long Life): Utilizes high-precision, long-life imported ball bearings. Superior to sliding bearings, ideal for continuous operation.
Quiet Operation (34 dBA): Achieves a balance between high power and relatively low noise in its class.
Reliable Insulation (Class B): Enameled wire with Class B insulation, suitable for a wide operating temperature range.
Technical

Specifications

:
Model: EE80251B1-000-G99
Dimensions: 80 x 80 x 25 mm (8025)
Voltage: 12V
DC Current: 0.14A
Power: 1.7W
Speed: 3000 rpm (10%)
Airflow: 51
CFM Noise: 34 dB
Bearing Type: Dual
Ball Bearing Weight: 90g
Connection: Wire-connected (compatible with 2-pin) (Application
Scenarios) Wide Applications: IT
Equipment: Server racks, network switches, NAS enclosures, workstations/PCs.
Industrial Use: PLC control cabinets, laser equipment, power supplies, CNC machine tools.
DIY and Hobby Projects: 3D printer cooling, high-power amplifiers, electronic enclosures.
Audio/Video Equipment: Projectors, power amplifiers.
