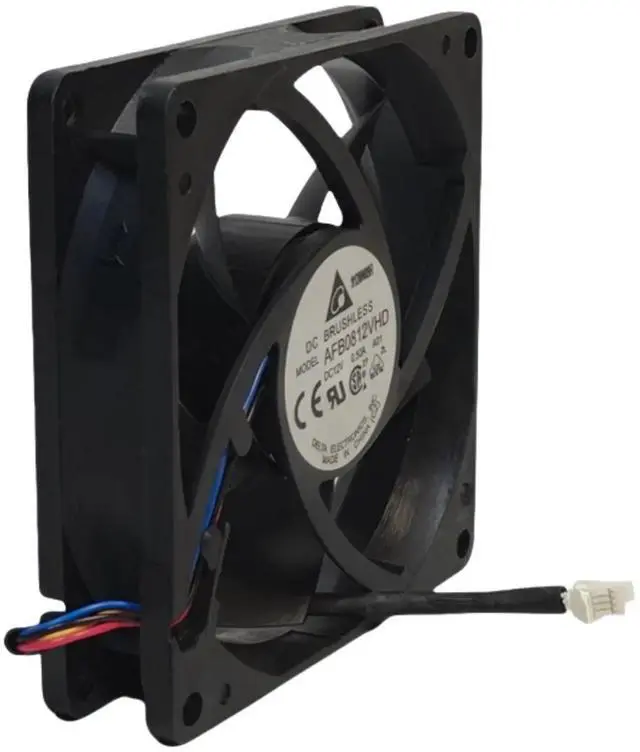

An 80mm fan (80x80x20mm) for the AFB0812VHD, a dual ball bearing cooling fan - 12V 0.5A 6200RPM high-speed PWM chassis fan.

Product Description: The AFB0812VHD is an industrial-grade 80x80x20mm axial fan designed for superior cooling performance in PCs and servers. It is specifically designed for efficient cooling of computer cases, power supplies, servers, and network equipment. Featuring dual ball bearings and a 4-pin PWM control, it delivers up to 6200 RPM of airflow while maintaining excellent performance and low noise.
Key Features: 80x80x20mm standard size compatible with most PC cases and coolers. 12V DC, 0.5A, 4-pin PWM interface allows for precise speed adjustment via motherboard/controller. 6200 RPM high speed provides optimal airflow for CPUs, GPUs, and power supplies. Dual ball bearings lifespan exceeding 50, 000 hours (3 times that of sliding bearings). 11cm cable length flexible installation with a standard 4-pin connector. Low noise (28 dB) optimized blade design for quiet operation.
Technical

Specifications

:
Model: AFB0812VHD (OEM)
Dimensions: 80x80x20mm (8020 standard)
Voltage: 12V DC 10%
Current: 0.5A
Speed: 6200
RPM (10%) Bearing Type: Dual ball bearing
Connector: 4-pin PWM (Ground + 12V + Tachometer + PWM control)
Cable Length: 11cm
Airflow: ~38 CFM
Static Pressure: 3.5 mmHO
Noise: 28 dB (A)
Certifications: RoHS and CE compliant.
Applications: PC and Server Cooling Suitable for chassis, power supplies, and heatsinks. Network Equipment Routers, switches, and NAS systems. Industrial Electronics Cooling for power supplies and control cabinets.
