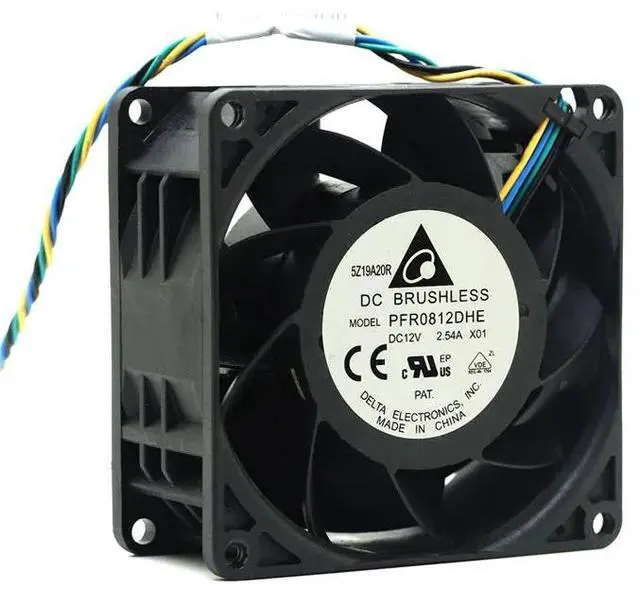

8038 Powerful 8cm/80mm Fan for PFR0812DHE Server Cooling Fan DC 12V 2.54A 80x80x38mm 4-Wire PWM Heatsink
- Model: pfr0812dhe; Dimensions: 80×80×38mm; Voltage: DC12V; Function: Supports 4-wire PWM speed control; Current: 2.54A (nominal current); Plug: Standard 4P plug, mainboard cable length approximately 40cm; Speed: 9500rpm; Wind speed: 14m/s; Air volume: 165cfm; Power: 39.6W; Noise: 52dB; Fan frame: Injection molded, PBT + 30% glass fiber + VO grade flame retardant; Fan blades: Injection molded, PBT + 30% glass fiber + VO grade flame retardant; Fan rotation direction: Counterclockwise from the direction of the fan blades; Operating temperature: -10 to +70; Storage temperature: -40 to +70; Bearing: High-precision ball bearing; Power supply range: Rated power ±15%. Insulation resistance: greater than 500 megohms; Withstand voltage: leakage current 0.5mA, 500V/1 minute; Operating life: 10,000 hours at 25 ambient temperature.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model: pfr0812dhe;
Dimensions: 80×80×38mm;
Voltage: DC12V;
Function: Supports 4-wire PWM speed control;
Current: 2.54A (nominal current);
Plug: Standard 4P plug, mainboard cable length approximately 40cm;
Speed: 9500rpm;
Wind speed: 14m/s;
Air volume: 165cfm;
Power: 39.6W;
Noise: 52dB;
Fan frame: Injection molded, PBT + 30% glass fiber + VO grade flame retardant;
Fan blades: Injection molded, PBT + 30% glass fiber + VO grade flame retardant;
Fan rotation direction: Counterclockwise from the direction of the fan blades;
Operating temperature: -10 to +70;
Storage temperature: -40 to +70;
Bearing: High-precision ball bearing;
Power supply range: Rated power ±15%.
Insulation resistance: greater than 500 megohms;
Withstand voltage: leakage current 0.5 mA, 500V/1 minute;
Operating life: 10, 000 hours at 25 ambient temperature.
Dimensions: 80×80×38mm;
Voltage: DC12V;
Function: Supports 4-wire PWM speed control;
Current: 2.54A (nominal current);
Plug: Standard 4P plug, mainboard cable length approximately 40cm;
Speed: 9500rpm;
Wind speed: 14m/s;
Air volume: 165cfm;
Power: 39.6W;
Noise: 52dB;
Fan frame: Injection molded, PBT + 30% glass fiber + VO grade flame retardant;
Fan blades: Injection molded, PBT + 30% glass fiber + VO grade flame retardant;
Fan rotation direction: Counterclockwise from the direction of the fan blades;
Operating temperature: -10 to +70;
Storage temperature: -40 to +70;
Bearing: High-precision ball bearing;
Power supply range: Rated power ±15%.
Insulation resistance: greater than 500 megohms;
Withstand voltage: leakage current 0.5 mA, 500V/1 minute;
Operating life: 10, 000 hours at 25 ambient temperature.
