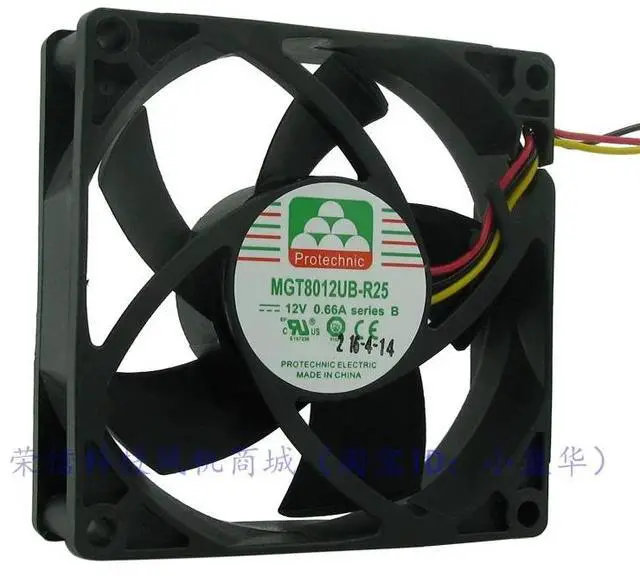

MGT8012UB-R25 8025 DC12V 0.66A 7.92W 80*80*25mm Three-wire cooling fan 4800RPM blower
- Product Model: mgt8012ub-r25 Operating Voltage Range: DC 4.0-13.8V Input Voltage: DC 12V Input Current: 0.66A Input Power: 7.92W Rated Speed: 4800 rpm Maximum Airflow: 68.88 CFM (cubic feet/minute) = 1.951 m³/minute (cubic meters/minute) Maximum Air Pressure: 0.361 inh²o (inches/water column) = 9.17 mmh²o (millimeters/water column) Operating Noise: 45.2 dBA Product Dimensions: 80 * 80 * 25MM Conductor/Connector: Standard three-pin positive and negative conductors, bare wire interface, wire length approximately 30cm. For custom plug processing, please contact customer service. Net Weight: 90 grams. Bearing Type: Ball bearing. Customized Functions: Automatic restart and current lockout protection. Motor protection, stall protection, reverse connection protection. Safety Certifications: UL, TUV, CE. Frame/blade material: PBT. Operating temperature range: -10 to 70, service life under normal conditions is approximately 50,000 hours. Applications: Suitable for multiple fields.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Model: mgt8012ub-r25 Operating
Voltage Range: DC 4.0 - 13.8V
Input Voltage: DC 12V
Input Current: 0.66A
Input Power: 7.92W
Rated Speed: 4800 rpm
Maximum Airflow: 68.88 CFM (cubic feet/minute) = 1.951 m³/minute (cubic meters/minute) Maximum
Air Pressure: 0.361 inh²o (inches/water column) = 9.17 mmh²o (millimeters/water column)
Operating Noise: 45.2 dBA
Product Dimensions: 80 * 80 * 25MM
Conductor/Connector: Standard three-pin positive and negative conductors, bare wire interface, wire length approximately 30cm. For custom plug processing, please contact customer service.
Net Weight: 90 grams.
Bearing Type: Ball bearing.
Customized Functions: Automatic restart and current lockout protection. Motor protection, stall protection, reverse connection protection.
Safety Certifications: UL, TUV, CE.
Frame/blade material: PBT.
Operating temperature range: -10 to 70, service life under normal conditions is approximately 50, 000 hours.
Applications: Suitable for multiple fields.
Voltage Range: DC 4.0 - 13.8V
Input Voltage: DC 12V
Input Current: 0.66A
Input Power: 7.92W
Rated Speed: 4800 rpm
Maximum Airflow: 68.88 CFM (cubic feet/minute) = 1.951 m³/minute (cubic meters/minute) Maximum
Air Pressure: 0.361 inh²o (inches/water column) = 9.17 mmh²o (millimeters/water column)
Operating Noise: 45.2 dBA
Product Dimensions: 80 * 80 * 25MM
Conductor/Connector: Standard three-pin positive and negative conductors, bare wire interface, wire length approximately 30cm. For custom plug processing, please contact customer service.
Net Weight: 90 grams.
Bearing Type: Ball bearing.
Customized Functions: Automatic restart and current lockout protection. Motor protection, stall protection, reverse connection protection.
Safety Certifications: UL, TUV, CE.
Frame/blade material: PBT.
Operating temperature range: -10 to 70, service life under normal conditions is approximately 50, 000 hours.
Applications: Suitable for multiple fields.
