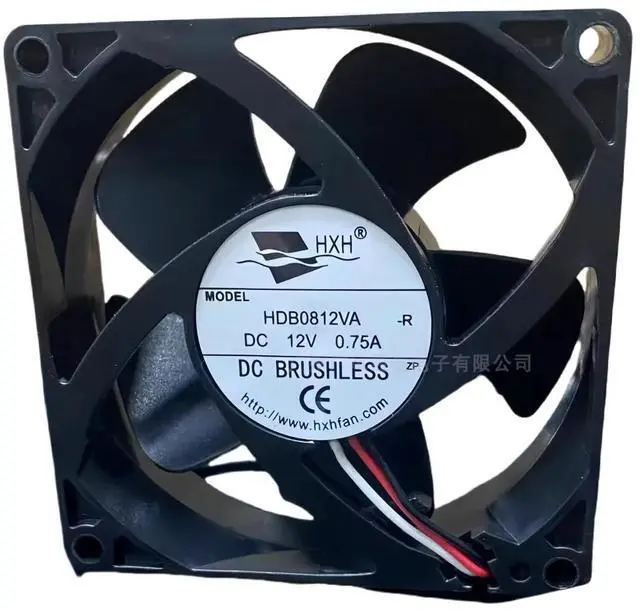

Main image of HXH HDB0812VA-P 12V 0.75A Waterproof Cooling Fan - 80x80x25mm, 5014RPM, 66CFM, Dual Ball Bearings, IP68 Protection Rating, PWM Control, Suitable for PCs

Shop All Traditions (Generic) Products | Visit Jiujishangmao Store

HXH HDB0812VA-P 12V 0.75A Waterproof Cooling Fan - 80x80x25mm, 5014RPM, 66CFM, Dual Ball Bearings, IP68 Protection Rating, PWM Control, Suitable for PCs

Product Description: Key Features: Military-grade waterproof IP68 certified (can be submerged in 1 meter of water for 30 minutes), ideal for humid environments and outdoor equipment. Dual ball bearings 50,000-hour lifespan (tested at 40), performance is 3 times that of sliding bearings. PWM precise control 4-wire intelligent speed control (blue = temperature signal, yellow = speed feedback). Industrial-grade airflow Up to 66 CFM airflow at 11.7 mmHO pressure, far exceeding standard chassis fans. Superior performance -10~60 operating temperature range, withstands sandstorms (MIL-STD-810G tested). Technical Specifications: Model: HXH HDB0812VA-P Dimensions: 80 x 80 x 25 mm (8025 standard) Voltage: DC 12V (10%) Current: Nominal: 0.55A Actual: 0.59A (Measured value) Power: 7.08W Speed: 5014 RPM (10%) Airflow: 66 CFM (112 m³/h) Static Pressure: 11.7 mmHO (115 Pa) Noise: 52 dBA Wiring: Black: Ground Red: +12V Yellow: Tachometer Blue: PWM signal Bearing: Dual ball bearing (NSK, Japan) Humidity Range: 5%~95% RH (non-condensing) Weight: 93.6g Blade Specifications: 7 blades, 37mm hub Application Areas: Outdoor Computers Mining Machines/Edge Computing (Rainy Areas) Marine Electronic Equipment Marine Radar Cooling, Fish Finders Factory Automation CNC Coolant Atomization Environment DIY Project Water-cooled Overclocking PC Package List: 1 x HXH HDB0812VA-P Waterproof Fan

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Product Description: Key
Features: Military-grade waterproof IP68 certified (can be submerged in 1 meter of water for 30 minutes), ideal for humid environments and outdoor equipment. Dual ball bearings 50, 000-hour lifespan (tested at 40), performance is 3 times that of sliding bearings. PWM precise control 4-wire intelligent speed control (blue = temperature signal, yellow = speed feedback). Industrial-grade airflow Up to 66 CFM airflow at 11.7 mmHO pressure, far exceeding standard chassis fans. Superior performance -10~60 operating temperature range, withstands sandstorms (MIL-STD-810G tested).
Technical

Specifications

:
Model: HXH
HDB0812VA-P Dimensions: 80 x 80 x 25 mm (8025 standard)
Voltage: DC 12V (10%)
Current:
Nominal: 0.55A
Actual: 0.59A (Measured value)
Power: 7.08W
Speed: 5014
RPM (10%) Airflow: 66 CFM (112 m³/h)
Static Pressure: 11.7 mmHO (115
Pa) Noise: 52 dBA
Wiring:
Black: Ground
Red: +12V
Yellow: Tachometer
Blue: PWM signal
Bearing: Dual ball bearing (NSK, Japan)
Humidity Range: 5%~95% RH (non-condensing)
Weight: 93.6 g Blade

Specifications

: 7 blades, 37mm hub
Application Areas: Outdoor Computers Mining Machines/Edge Computing (Rainy Areas) Marine Electronic Equipment Marine Radar Cooling, Fish Finders Factory Automation CNC Coolant Atomization Environment DIY Project Water-cooled Overclocking PC
Package List: 1 x HXH HDB0812VA-P Waterproof Fan
