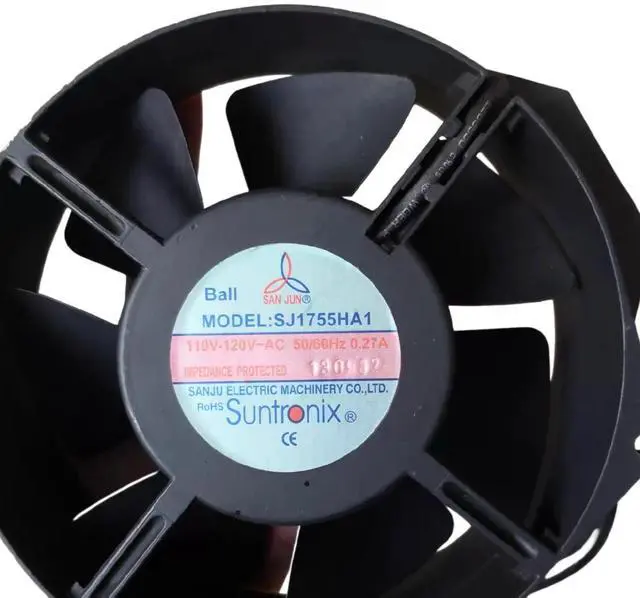

Suitable for SJ1755HA1 172x150x55mm 110V 0.27A 31W ball bearing cooling fan 3350RPM 280CFM industrial inverter cabinet

Product Description: The SJ1755HA1 is a 172mm AC cooling fan designed for industrial applications requiring reliable airflow and durability. Featuring a ball bearing construction, it delivers a powerful 280 CFM airflow and a wide operating temperature range, providing efficient cooling for inverters, control cabinets, and electronic equipment.
Key Features:
1. Powerful Airflow Output 280 CFM airflow at speeds up to 3350 RPM for effective heat dissipation.
2. Ball Bearings Up to 60, 000 hours of service life at 40°C, ensuring stable performance.
3. Stable AC Operation Rated at 110V, 0.27A, 31W for reliable industrial cooling applications.
4. Wide Temperature Tolerance Range Operates efficiently in harsh environments from -20°C to +85°C.
5. Industrial-Grade Quality Metal frame and plastic fan blades with plug-in terminals for easy
installation.

Specifications

:
Model: SJ1755HA1
Dimensions: 172 x 150 x 55 mm
Voltage: AC 110V
Current/Power: 0.27A / 31W
Speed: 3350
RPM Airflow: 280 CFM
Static Pressure: 0.55 inH2O
Noise: 54 dB (A)
Bearing Type: Ball
Bearing Weight: 860 g
Service Life: 60, 000 hours (at 40°C)
Temperature Range: -20°C to +85°C
Connector: Plug-in
Terminal Frame: Metal Frame, Plastic
Blades Applications: Frequency Inverters and Industrial Power Supplies Control Cabinets and Automation Systems Server Racks and Data Center Cooling Telecommunications and Networking Equipment Industrial Machinery and Electronic Equipment Housings
