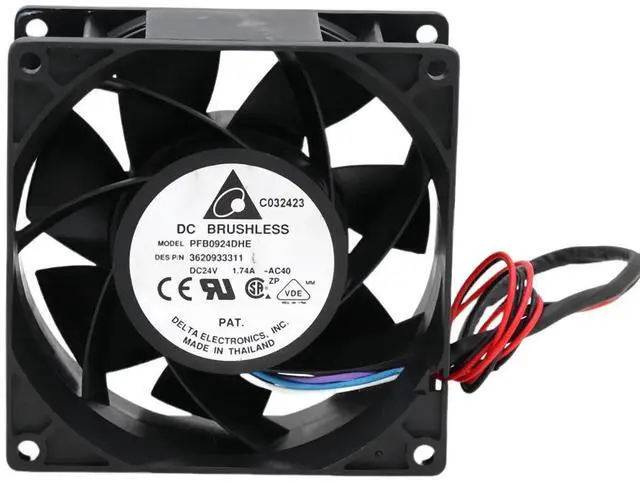

high-speed DC 24V fan for PFB0924DHE, measuring 92mm x 92mm x 38mm, with a current of 1.74A and a speed of 8000RPM, suitable for cooling fans in welding machines and servers. Part number 3620927311.
- Product Model: PFB0924DHE [Dimensions]: 92 x 92 x 38mm [Rated Voltage]: DC24V [Voltage Range]: DC12.0-26.5V [Input Power: 34.8W [Input Current: 1.74A [Rated Speed: 8000RPM Temperature Range: -25 to 60 [Lifespan: 25 L10 Lifespan 40,000 hours [Bearings]: Maintenance-free double ball bearings [Rotation Method]: Air exhausts from the bracket, rotor rotates counterclockwise [Wiring]: + Red - Blue Signal: White Speed Control: Purple [Maximum Airflow: 297.4 m³/h 175.03CFM [Minimum Pressure: 0 to 192Pa [Noise Level: 66.5dB [Material: Glass Fiber Reinforced Plastic] PBT shell, PA blades, environmentally certified [Function Description]: Electronically commutated external rotor DC fan, includes all electronic components [Weight]: 250g
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Model: PFB0924DHE
[Dimensions]: 92 x 92 x 38mm [Rated
Voltage]: DC24V [Voltage
Range]: DC 12.0 - 26.5V [Input
Power: 34.8W [Input
Current: 1.74A [Rated
Speed: 8000RPM
Temperature Range: -25
to 60 [Lifespan: 25 L10 Lifespan 40, 000
hours [Bearings]: Maintenance-free double ball bearings [Rotation
Method]: Air exhausts from the bracket, rotor
rotates counterclockwise [Wiring]: + Red -
Blue Signal: White
Speed Control: Purple [Maximum
Airflow: 297.4 m³/h 175.03CFM [Minimum
Pressure: 0 to 192Pa [Noise
Level: 66.5
dB [Material: Glass Fiber Reinforced Plastic] PBT shell, PA blades, environmentally certified [Function
Description]: Electronically commutated external rotor DC fan, includes
all electronic components [Weight]: 250g
[Dimensions]: 92 x 92 x 38mm [Rated
Voltage]: DC24V [Voltage
Range]: DC 12.0 - 26.5V [Input
Power: 34.8W [Input
Current: 1.74A [Rated
Speed: 8000RPM
Temperature Range: -25
to 60 [Lifespan: 25 L10 Lifespan 40, 000
hours [Bearings]: Maintenance-free double ball bearings [Rotation
Method]: Air exhausts from the bracket, rotor
rotates counterclockwise [Wiring]: + Red -
Blue Signal: White
Speed Control: Purple [Maximum
Airflow: 297.4 m³/h 175.03CFM [Minimum
Pressure: 0 to 192Pa [Noise
Level: 66.5
dB [Material: Glass Fiber Reinforced Plastic] PBT shell, PA blades, environmentally certified [Function
Description]: Electronically commutated external rotor DC fan, includes
all electronic components [Weight]: 250g
