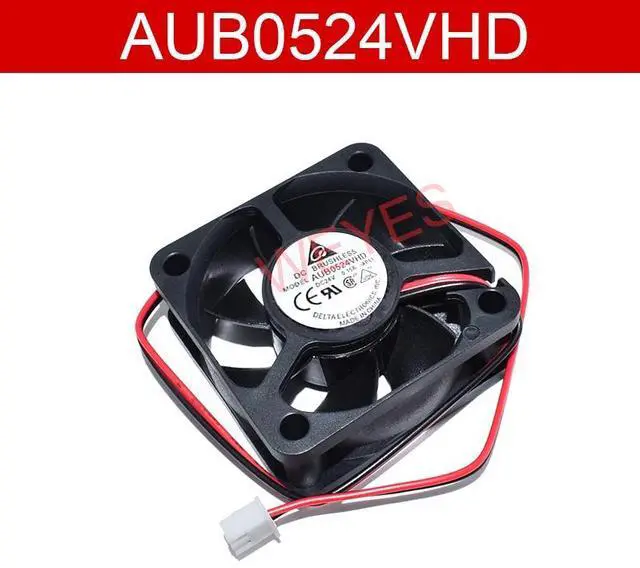

Suitable for AUB0524VHD 5020 DC24V 0.15A two-wire 50*50*20mm inverter cooling fan
- Suitable for AUB0524VHD-AP51 5020 DC24V 0.15A dual-wire 50*50*20mm inverter cooling fan. Dimensions: 50 * 50 * 20mm. Bearing: Dual ball bearing. Standard voltage: 24V. Current: 0.15A. Power: 3.6W. Speed: 5000RPM. Airflow: 11.8CFM. Wire diameter: 2 wires. Wire length: 8 cm. Optimal continuous operating time: 80,000 hours. Service life: 80,000 hours (relative humidity 25%, 45% ~ 85%). Fan frame: Injection molded, PBT + 30% glass fiber + VO grade flame retardant. Fan: Injection molded, PBT + 30% glass fiber + VO grade flame retardant. Fan rotation direction: Counterclockwise from the fan blades. Operating temperature: -10 to +70. Storage temperature: -40 to +70; Bearing: High-precision ball bearing; Power supply range: ±15% of rated power supply; Insulation resistance: greater than 500 megohms; Withstand voltage: 0.5mA drain current, 500V/1 minute; Operating life: 80,000 hours at ambient temperature 25.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Suitable for AUB0524VHD-AP51 5020 DC24V 0.15A dual-wire 50*50*20mm inverter cooling fan.
Dimensions: 50 * 50 * 20mm.
Bearing: Dual ball bearing.
Standard voltage: 24V.
Current: 0.15A.
Power: 3.6W.
Speed: 5000RPM.
Airflow: 11.8CFM.
Wire diameter: 2 wires.
Wire length: 8 cm.
Optimal continuous operating time: 80, 000 hours.
Service life: 80, 000 hours (relative humidity 25%, 45% ~ 85%).
Fan frame: Injection molded, PBT + 30% glass fiber + VO grade flame retardant.
Fan: Injection molded, PBT + 30% glass fiber + VO grade flame retardant.
Fan rotation direction: Counterclockwise from the fan blades.
Operating temperature: -10 to +70.
Storage temperature: -40 to +70;
Bearing: High-precision ball bearing;
Power supply range: ±15% of rated power supply;
Insulation resistance: greater than 500 megohms;
Withstand voltage: 0.5 mA drain current, 500V/1 minute;
Operating life: 80, 000 hours at ambient temperature 25.
Dimensions: 50 * 50 * 20mm.
Bearing: Dual ball bearing.
Standard voltage: 24V.
Current: 0.15A.
Power: 3.6W.
Speed: 5000RPM.
Airflow: 11.8CFM.
Wire diameter: 2 wires.
Wire length: 8 cm.
Optimal continuous operating time: 80, 000 hours.
Service life: 80, 000 hours (relative humidity 25%, 45% ~ 85%).
Fan frame: Injection molded, PBT + 30% glass fiber + VO grade flame retardant.
Fan: Injection molded, PBT + 30% glass fiber + VO grade flame retardant.
Fan rotation direction: Counterclockwise from the fan blades.
Operating temperature: -10 to +70.
Storage temperature: -40 to +70;
Bearing: High-precision ball bearing;
Power supply range: ±15% of rated power supply;
Insulation resistance: greater than 500 megohms;
Withstand voltage: 0.5 mA drain current, 500V/1 minute;
Operating life: 80, 000 hours at ambient temperature 25.
