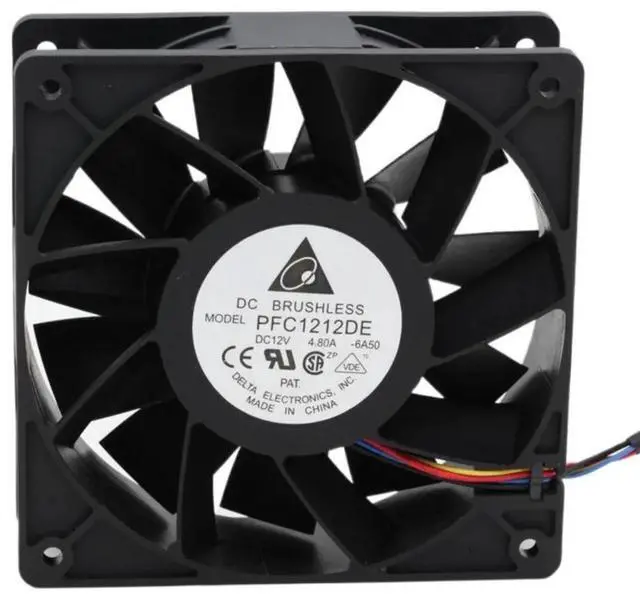

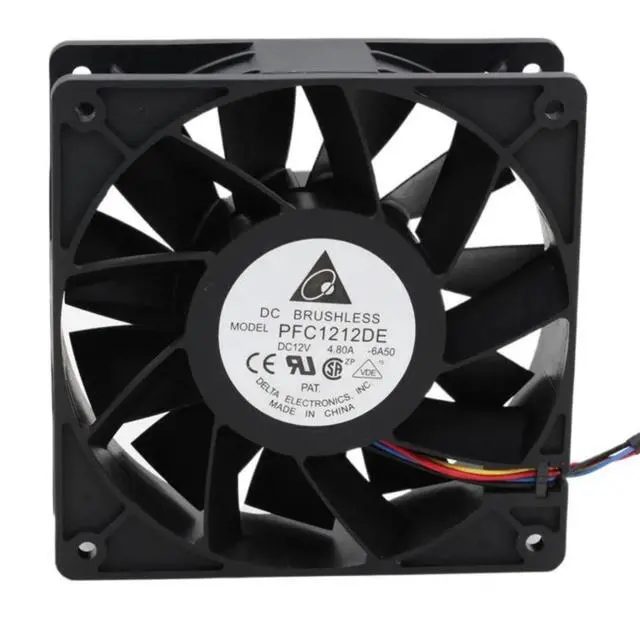

PFC1212DE 120mm 12038 12V 4.8A 7000RPM High-speed air pressure cooling fan, suitable for rack-mounted axial flow high-power coolers (4 wire 4 pin).
- Model: PFC1212DE (4wire 4Pin) Dimensions: 120x120x38MM Voltage: DC12V Current: Nominal 4.8A Airflow: 252.85CFM (7.16m³/min) Air Pressure: 1.412 in H2O (351.7 Pa) Weight: 0.351kg Noise: 66.5 dB(a) Power: 57.6W Speed Control: Supports motherboard PWM speed control Speed: 7500 RPM below 12V Fan Frame: Injection molded, glass fiber + VO PBT + 30% flame retardant; Fan Blades: Injection molded, glass fiber + VO PBT + 30% flame retardant; Fan rotation direction: counterclockwise from the fan blade direction; Operating temperature: -10 to +70; Storage temperature: -40 to +70; Bearing: high-precision ball bearing; Power range: rated power ±15%; Insulation resistance: greater than 500 milliohms; Withstand voltage: out-of-phase leakage current 0.5mA, 500V/1 minute; Service life: 80,000 hours at ambient temperature 25.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model: PFC1212DE (4wire 4Pin)
Dimensions: 120x120x38MM
Voltage: DC12V
Current: Nominal 4.8A
Airflow: 252.85CFM ( 7.16 m³/min)
Air Pressure: 1.412 in H2O ( 351.7
Pa) Weight: 0.351 kg
Noise: 66.5 dB (a)
Power: 57.6W
Speed Control: Supports motherboard PWM speed control
Speed: 7500 RPM below 12V
Fan Frame: Injection molded, glass fiber + VO PBT + 30% flame retardant;
Fan Blades: Injection molded, glass fiber + VO PBT + 30% flame retardant;
Fan rotation direction: counterclockwise from the fan blade direction;
Operating temperature: -10 to +70;
Storage temperature: -40 to +70;
Bearing: high-precision ball bearing;
Power range: rated power ±15%;
Insulation resistance: greater than 500 milliohms;
Withstand voltage: out-of-phase leakage current 0.5 mA, 500V/1 minute;
Service life: 80, 000 hours at ambient temperature 25.
Dimensions: 120x120x38MM
Voltage: DC12V
Current: Nominal 4.8A
Airflow: 252.85CFM ( 7.16 m³/min)
Air Pressure: 1.412 in H2O ( 351.7
Pa) Weight: 0.351 kg
Noise: 66.5 dB (a)
Power: 57.6W
Speed Control: Supports motherboard PWM speed control
Speed: 7500 RPM below 12V
Fan Frame: Injection molded, glass fiber + VO PBT + 30% flame retardant;
Fan Blades: Injection molded, glass fiber + VO PBT + 30% flame retardant;
Fan rotation direction: counterclockwise from the fan blade direction;
Operating temperature: -10 to +70;
Storage temperature: -40 to +70;
Bearing: high-precision ball bearing;
Power range: rated power ±15%;
Insulation resistance: greater than 500 milliohms;
Withstand voltage: out-of-phase leakage current 0.5 mA, 500V/1 minute;
Service life: 80, 000 hours at ambient temperature 25.
