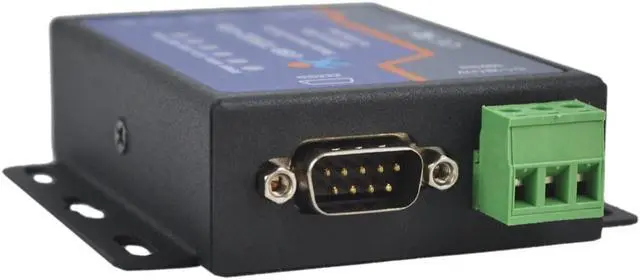

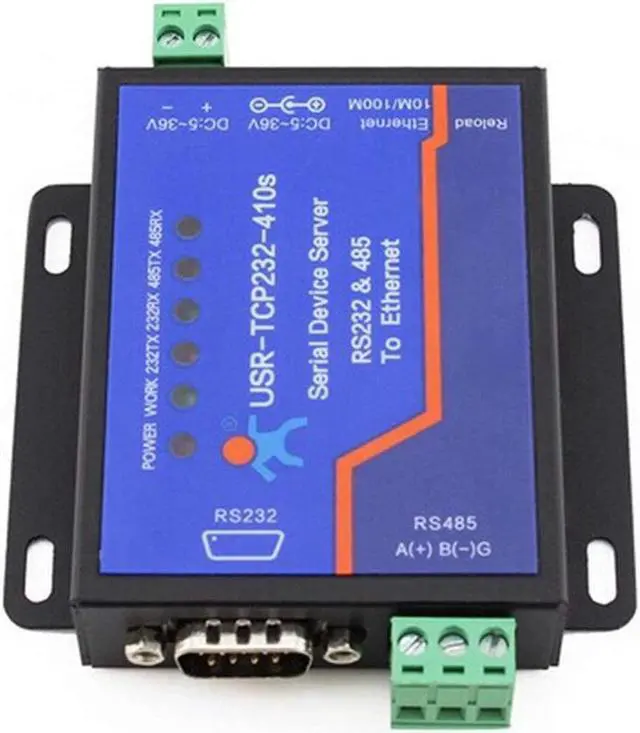

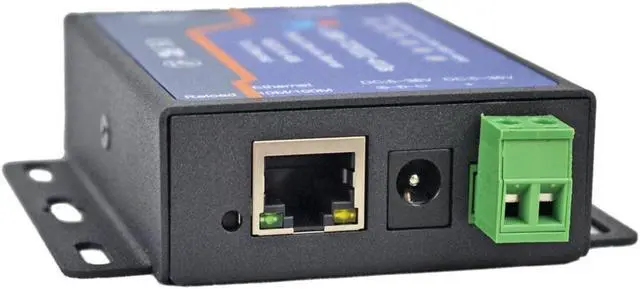

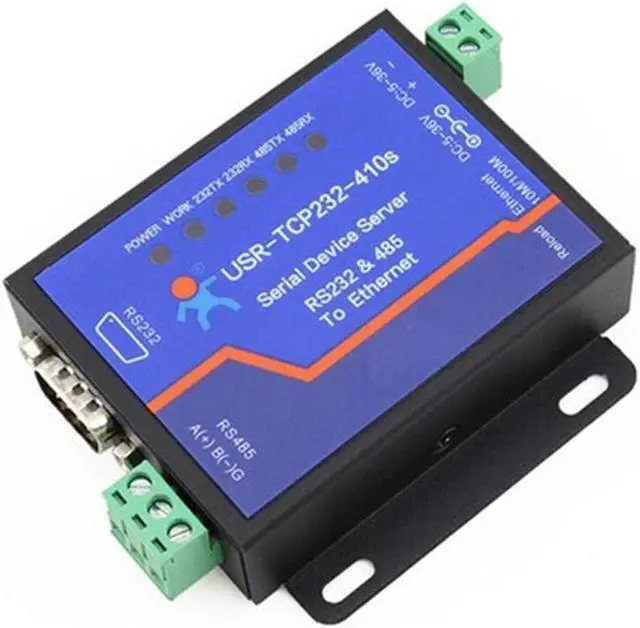

USR-TCP232-410s RS232 / RS485 Serial to Ethernet Adapter/IP Device Server Ethernet Converter Support DHCP/DNS
- Dual Serial Device Server: Cpu: Cortex-M4 120Mhz, Serial RS485 & RS232 to Ethernet Server, 2 Serial Ports: 1 Port is RS232, 1 Port is RS485, 1 RJ45 Ethernet Port. Support RS232 & RS485 Working at The Same Time.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Dual Serial Device Server: Cpu: Cortex-M4 120Mhz, Serial RS485 & RS232 to Ethernet Server, 2 Serial Ports: 1 Port is RS232, 1 Port is RS485, 1 RJ45 Ethernet Port. Support RS232 & RS485 Working at The Same Time.
Data Link Protocol: Ip£¬Tcp£¬Udp£¬Dhcp£¬Dns£¬Http£¬Arp£¬Icmp£¬Web Socket£¬Httpd Client.
Speed: 10 / 100 Mbps, Mdi / Mdix Cross Direct Automatic Switching, Baud Rate: Rs-232£º600Bps ~ 230. 4Kbps£¬Rs-485£º600Bps ~ 1Mbps; 1.5Kv Electromagnetic Isolation, Shell Isolation Protection; Anti-Static 2Kv, Lightning Protection.
Configure Via Web Browser or Virtual Com Software Interface; Working Temperature: -40 ~ 85¡ãC, Power Consumption: < 1W.

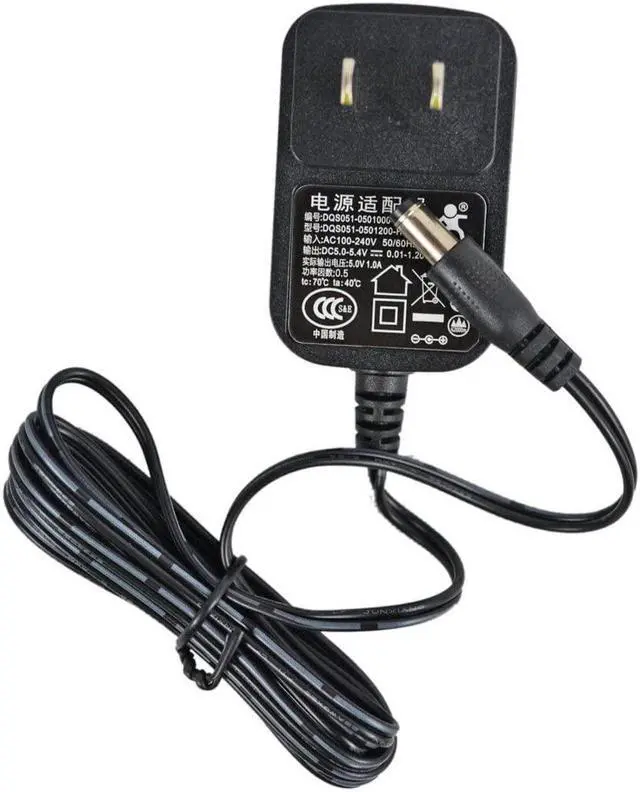

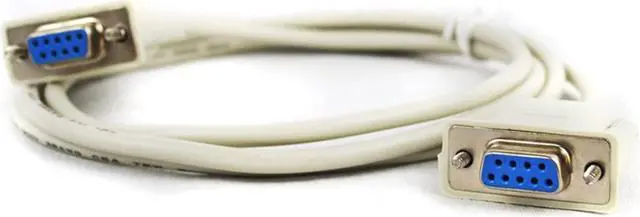

What's in The Box: 1 x Dual Serial Device Server, 1 x 5V 1A Power Supply, 1 x Female to Female Serial Cable.
Data Link Protocol: Ip£¬Tcp£¬Udp£¬Dhcp£¬Dns£¬Http£¬Arp£¬Icmp£¬Web Socket£¬Httpd Client.
Speed: 10 / 100 Mbps, Mdi / Mdix Cross Direct Automatic Switching, Baud Rate: Rs-232£º600Bps ~ 230. 4Kbps£¬Rs-485£º600Bps ~ 1Mbps; 1.5Kv Electromagnetic Isolation, Shell Isolation Protection; Anti-Static 2Kv, Lightning Protection.
Configure Via Web Browser or Virtual Com Software Interface; Working Temperature: -40 ~ 85¡ãC, Power Consumption: < 1W.
What's in The Box: 1 x Dual Serial Device Server, 1 x 5V 1A Power Supply, 1 x Female to Female Serial Cable.
