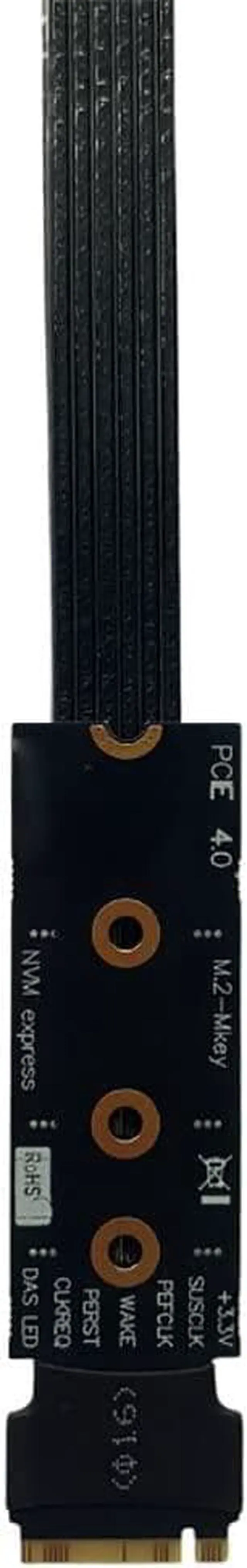

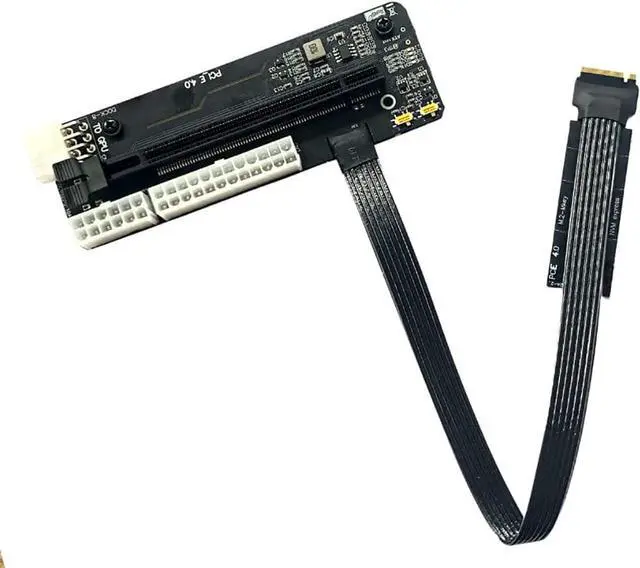

R43SG GEN4 M.2 M-Key to PCIE X16 4.0 External Graphics Card Stand Bracket Compatible with NVME SSD NUC Host Expansion Card Graphics Dock (30cm)

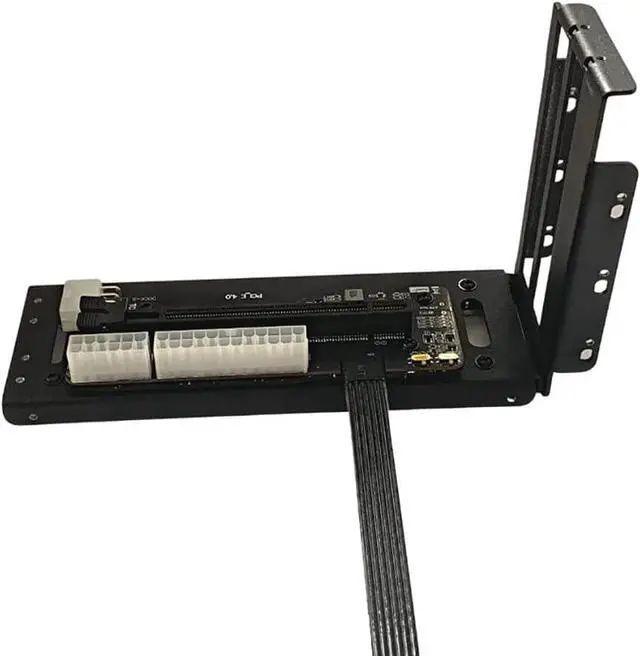

Supports NVME-compatible PCIE X4 4.0, Support USB4 hard disk box, To achieve the rate of PCIE 4.0, the base is upgraded to a metal bracket, the slot uses a gen*4 connector, and the cable uses a silver-plated cable.
Compatible with Thunderbolt-3 hard drive enclosures,Compatible with Thunderbolt-4 hard drive enclosures.
The external graphics card will give priority to the external screen. The internal screen may be limited by the processing method of the CPU, resulting in large losses. At present, the 10th generation CPU is friendly to the PCIE channel and Thunderbolt-compatible interface, and the performance of the internal screen is considerable.
The DC power supply is forcibly powered on, and it will still supply power to the external devices when it is turned off. The DC supports a maximum power supply of 120W. Please pay attention to the power consumption of the external devices.
The NUC host has an external adapter graphics card or a Gigabit 10 Gigabit network card for soft routing.
Laptops or hosts with nv·me-compatible solid-state hard disk interfaces can be disassembled to connect the adapter cable, and the external devices can be disassembled, so there is no need to disassemble the main device.
After this device is connected to an external screen, it can maximize the performance of 95% of the graphics card (PCIE X4 4.0). The MAC-compatible internal screen has a GPU acceleration option, which can be used for the internal screen.
