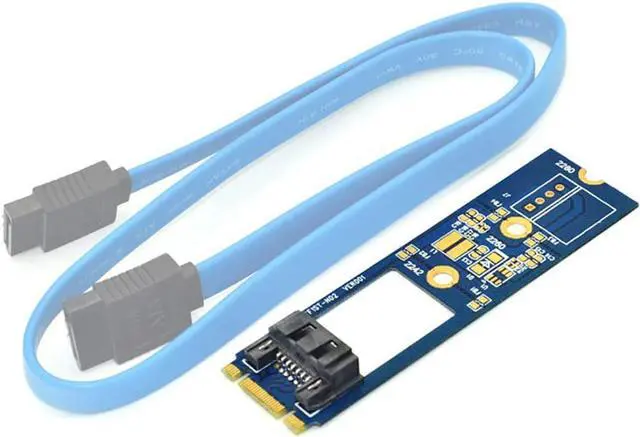

M.2 to SATA 7Pin Adapter Card M.2 Key B-M to SATA3.0 Converter Board for M2 NGFF 2242 2260 2280 SDD
- Adjustable Convertion: M.2 to SATA3.0 adapter card can convert M.2 NGFF interface to SATA interface, there are 4 fixed holes on the board, 22*42mm, 22*60mm, 22*80mm respectively.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Adjustable Convertion: M.2 to SATA3.0 adapter card can convert M.2 NGFF interface to SATA interface, there are 4 fixed holes on the board, 22*42mm, 22*60mm, 22*80mm respectively.

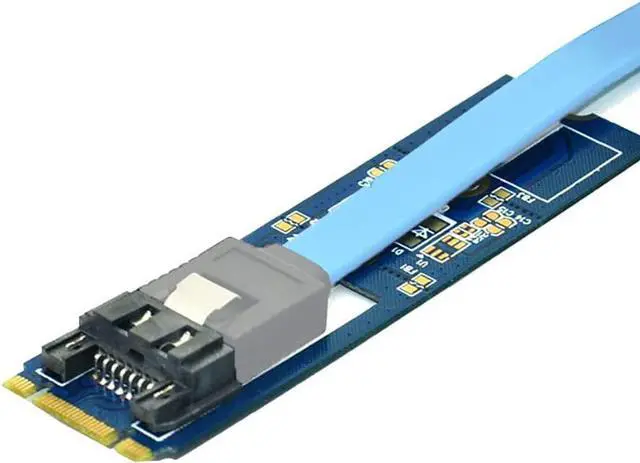

Intended Usage: To convert SATA signal from M.2 NGFF to SATA 7PIN, connect 2.5" mechanical HDD or SSD to increase HDD capacity.

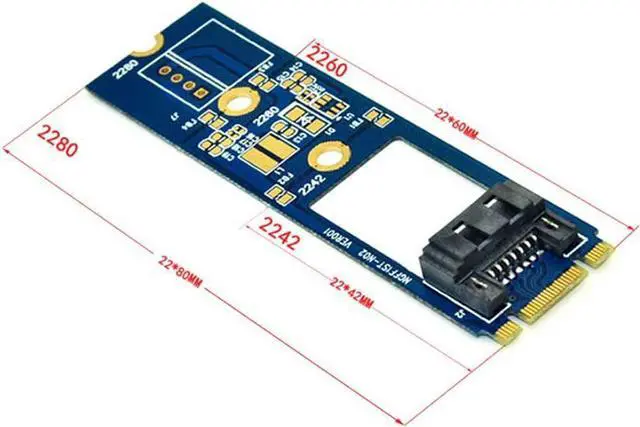

Support Size: The Adapter supports SSD sizes 2242 2260 2280, the default is 2280 if you want to use a different size, just cut the V-CUT line along the middle of the PCB.
Support System: Compatible with WinXP/Vista/Win7/Win8 32bit/64bit MAC10.8 or above.
Warm Tips: This adapter card only supports SATA protocol M.2 interface (KEY-B interface), it does not support PCI-E protocol or NVME protocol, please check if your interface is SATA protocol before purchasing.( Cable not included).
Intended Usage: To convert SATA signal from M.2 NGFF to SATA 7PIN, connect 2.5" mechanical HDD or SSD to increase HDD capacity.
Support Size: The Adapter supports SSD sizes 2242 2260 2280, the default is 2280 if you want to use a different size, just cut the V-CUT line along the middle of the PCB.
Support System: Compatible with WinXP/Vista/Win7/Win8 32bit/64bit MAC10.8 or above.
Warm Tips: This adapter card only supports SATA protocol M.2 interface (KEY-B interface), it does not support PCI-E protocol or NVME protocol, please check if your interface is SATA protocol before purchasing.( Cable not included).
