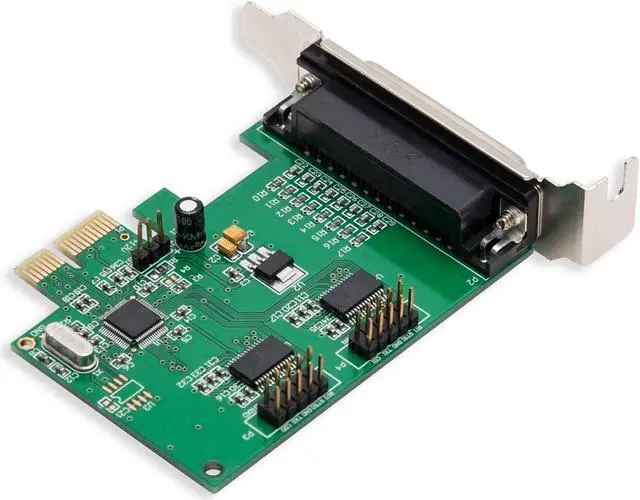

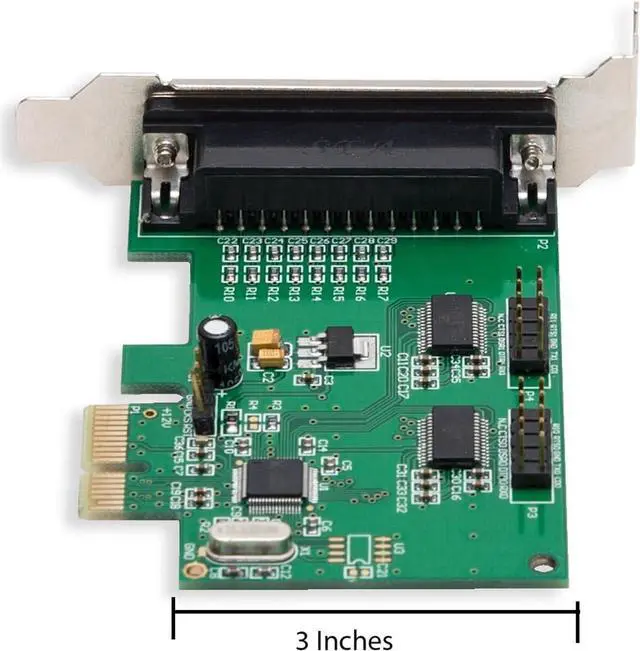

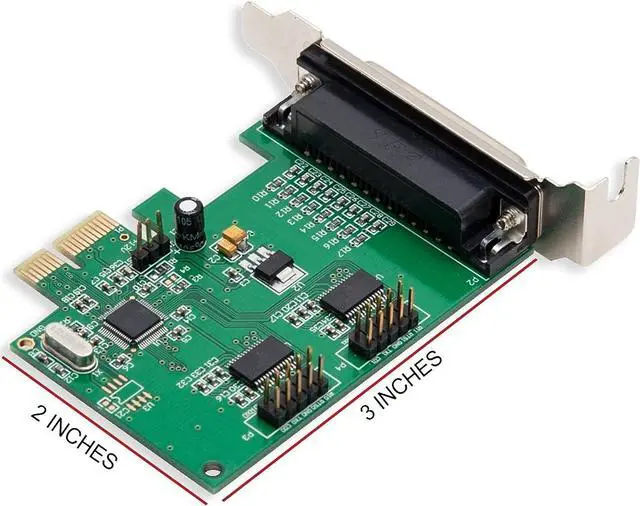

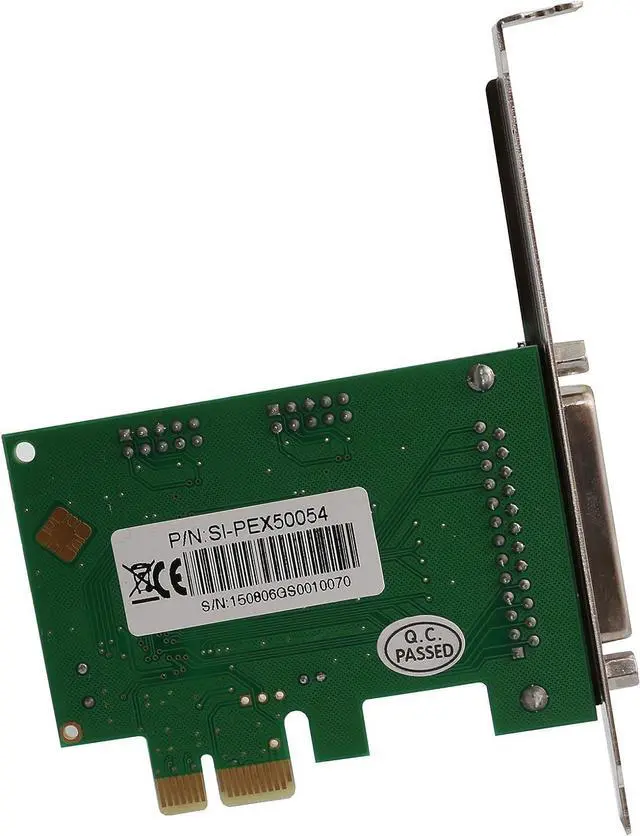

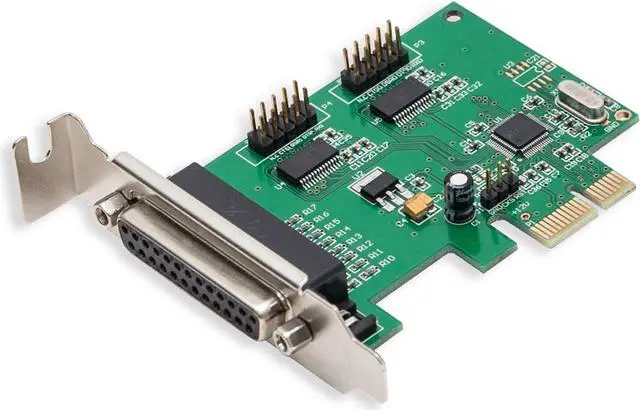

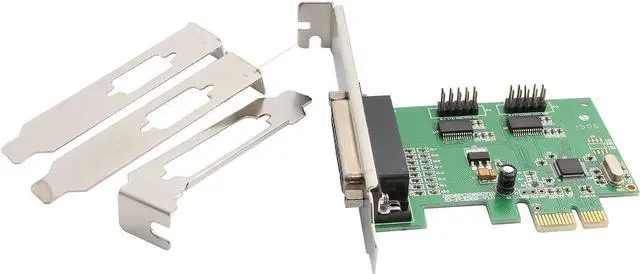

I/O Crest 2 Port Serial COM DB9 RS-232 and 1 Port DB25 Printer Lpt1 Port PCI-E 1.0 X1 Card WCH382 Chipset
- PCI-E Specification Revision 1.0A
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
PCI-E Specification Revision 1.0A
Support for D1, D2, and D3hot and D3cold
Compatible UART: 16C450/550/extended 550
Bi-directional speeds from 50bps to 16Mbps/port
Supports hardware/software flow control
Fully Compliant with PCI-e Base Specification, Revision 1.0a
Support for D1, D2, D3hot and D3cold
Utilizes 100-Mhz Differential PCI-e Common Reference Clock
Custom BAUD Rates Supported with External Clock or by Programming Internal PLL
5, 6, 7, 8 and 9-bit Serial Format Support
Support MODEM Signals CTS, DSR, RI, DCD, the DTR, RTS, Convert RS232 Level
IEEE1284 Parallel Port: Multi-mode IEEE 1284 Compliant Controller (SPP, Nibble, Byte, PS/2, EPP, ECP)
Faster Data Rates up to 1.5Mbps for Parallel Port
Support for D1, D2, and D3hot and D3cold
Compatible UART: 16C450/550/extended 550
Bi-directional speeds from 50bps to 16Mbps/port
Supports hardware/software flow control
Fully Compliant with PCI-e Base Specification, Revision 1.0a
Support for D1, D2, D3hot and D3cold
Utilizes 100-Mhz Differential PCI-e Common Reference Clock
Custom BAUD Rates Supported with External Clock or by Programming Internal PLL
5, 6, 7, 8 and 9-bit Serial Format Support
Support MODEM Signals CTS, DSR, RI, DCD, the DTR, RTS, Convert RS232 Level
IEEE1284 Parallel Port: Multi-mode IEEE 1284 Compliant Controller (SPP, Nibble, Byte, PS/2, EPP, ECP)
Faster Data Rates up to 1.5Mbps for Parallel Port
