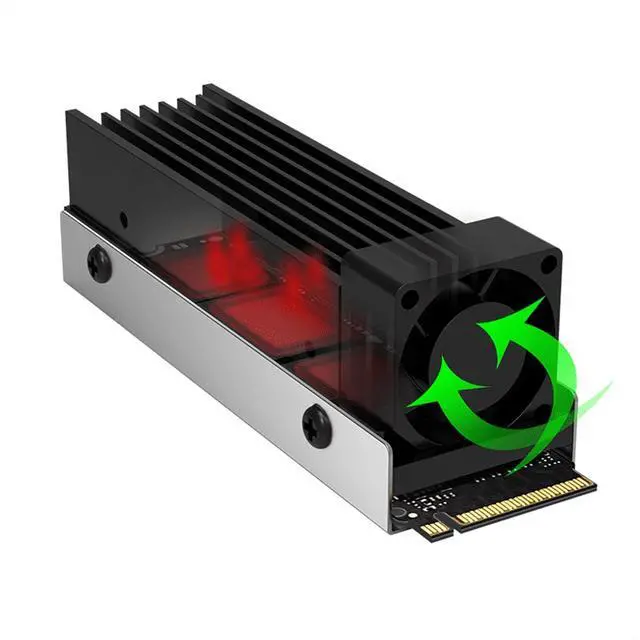

M.2 SSD NVMe Heat Sink M2 2280 Solid State Disk Air Circulation Radiator with Fan Aluminum Heatsink Thermal Pad Cooler

Model: M.2-TWO

Cooling method: active cooling

Rated voltage: DC12V

Rated current: 0.054A

Input power: 0.65W

Fan speed: 14000RPM

Maximum air volume: 1.35CFM

Maximum wind pressure: 4.31mmH2O

Noise level: 24dBA(MAX)

Application: 2280 solid state drive

Colour:black

Material:Metal

Package Contents:

1 x Heatsink(SSD not included)

Only the above package content, other products are not included.

Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

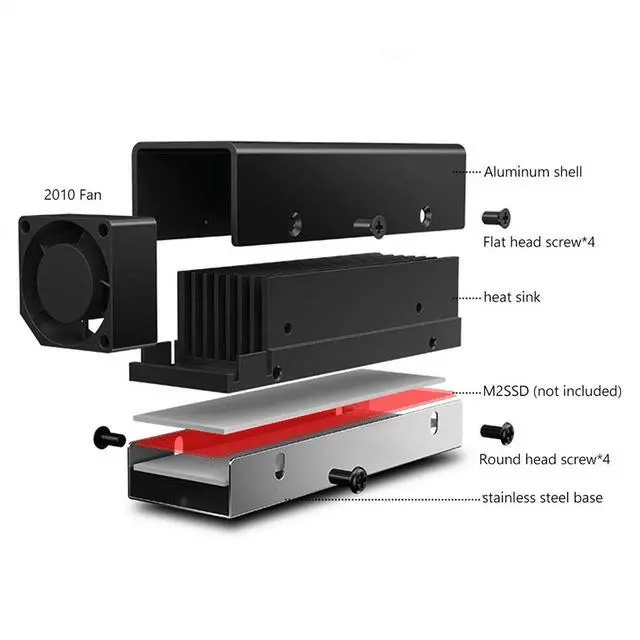

1. Grille shape. The heat sink adopts a grille shape, which increases the heat dissipation area and ensures the smooth flow of the air path, which is convenient for the rapid dissipation of heat. Maximum wind pressure: 4.31mmH2O
2. Aluminum alloy heat sink. The heat of the M2 hard disk is conducted to the aluminum alloy heat sink through the thermal grease.
3. High speed 2010 fan. Maximum air volume: 1.35CFM, in order to avoid taking up too much space inside the chassis, M2-TWO uses a 20x20x10mm exquisite fan, the speed is up to 14000RPM, although the size is small, the performance is strong
4. The 2010 high-speed fan blows out the heat quickly to that the hard disk works efficiently and with low noise: less than equal 24dBA
5. Solid material. Metal shell + metal base, stable structure, , can not only efficiently dissipate heat, but also protect M2 hard disk
