NA-FH1, 8 Channel Fan Hub for up to Eight 12V or 5V Based 4-pin PWM or 3-pin Fans (Black)
- 8-way fan splitter board for powering, controlling and monitoring multiple fans, transmits PWM signal from PC motherboards or optional NA-FC1 fan controller to all connected fans
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
8-way fan splitter board for powering, controlling and monitoring multiple fans, transmits PWM signal from PC motherboards or optional NA-FC1 fan controller to all connected fans

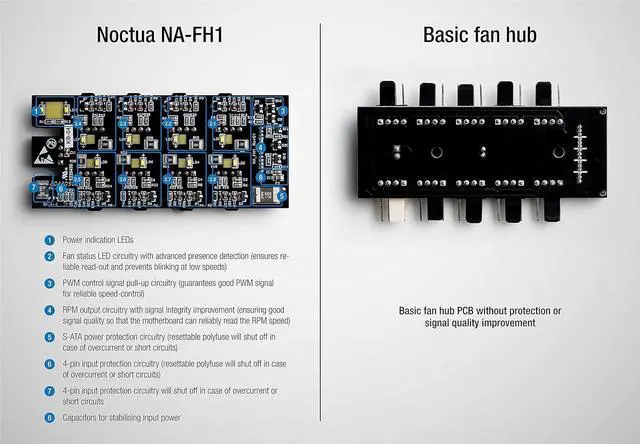

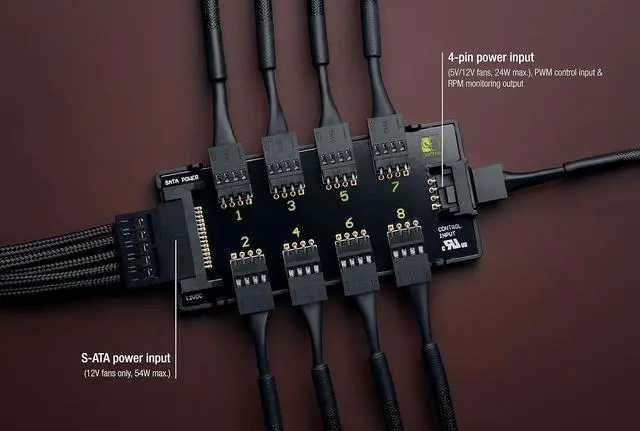

4-pin (for 5V and 12V fans) and S-ATA (for 12V only) inputs can be used simultaneously (power via S-ATA, RPM & PWM via 4-pin), safety fuses provide protection against overcurrent and short-circuits
Up to 54W total power via S-ATA (12V fans only) and 24W via 4-pin interface, ideal both for 12V PC case fans and 5V applications (with 5V fans that include USB power adaptor cables)

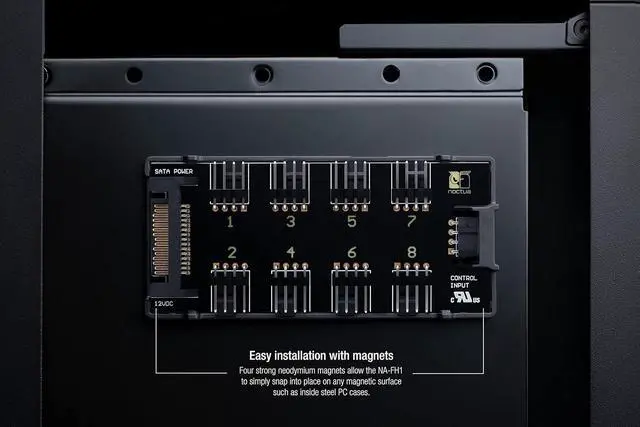

Easy installation on any magnetic surface such as steel PC case panels thanks to four strong mag-nets, included NA-EC1 input cable for connection to motherboard fan headers
Full compliance with all applicable safety standards (EN 62368-1, EN 55035, EN 55032, UL-507), CE, UKCA and UL certification, renowned quality backed up by a 6 year manufacturers warranty
4-pin (for 5V and 12V fans) and S-ATA (for 12V only) inputs can be used simultaneously (power via S-ATA, RPM & PWM via 4-pin), safety fuses provide protection against overcurrent and short-circuits
Up to 54W total power via S-ATA (12V fans only) and 24W via 4-pin interface, ideal both for 12V PC case fans and 5V applications (with 5V fans that include USB power adaptor cables)
Easy installation on any magnetic surface such as steel PC case panels thanks to four strong mag-nets, included NA-EC1 input cable for connection to motherboard fan headers
Full compliance with all applicable safety standards (EN 62368-1, EN 55035, EN 55032, UL-507), CE, UKCA and UL certification, renowned quality backed up by a 6 year manufacturers warranty
