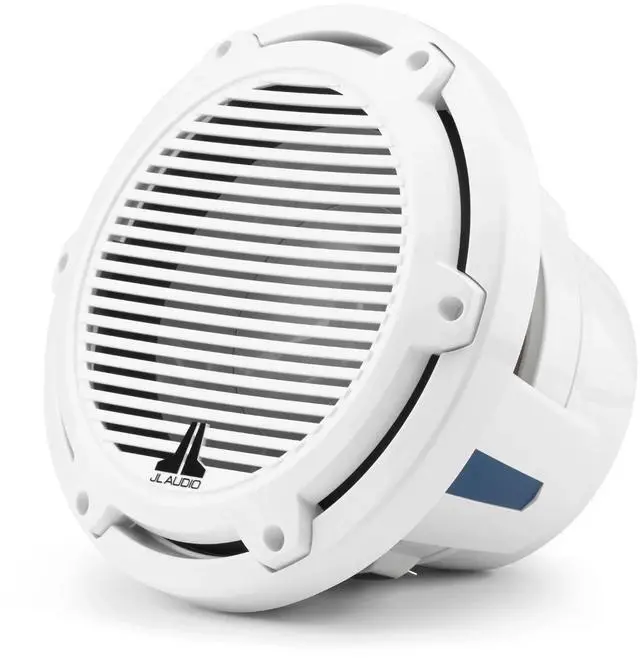

JL Audio M6 10in Subwoofer with White Classic Grille Infinite Baffle

JL Audio M6 10in Subwoofer with White Classic Grille Infinite Baffle 93633
Model: M6-10IB-C-GwGw-4 M6 10-inch Marine Subwoofer for Infinite-Baffle Use (250 W, 4 ohms) - Gloss White Trim Ring, Gloss White Classic Grille With appropriate system setup, the addition of a subwoofer allows your smaller main speakers to be free of the burden of reproducing low frequencies. This allows your whole system to play louder and to sound cleaner at all listening levels. Purpose-engineered and built for real marine duty, the M6 infinite-baffle woofers are designed to operate without a dedicated enclosure. Long excursion capability and rugged suspension systems help produce deep, powerful bass response that will transform your boat's audio system. The M6-10IB is best used with amplifier power in the 75W - 250W range and is optimized to operate with a large volume of air behind it (at least 2 cu. ft. / 56.6 l). If you need a Subwoofer that operates in a small sealed enclosure, select our M6-10W, instead. Like all JL Audio marine speakers, this driver is built to withstand a real saltwater marine environment and deliver years of listening enjoyment. Production of all M6 loudspeakers takes place in JL Audio’ s Miramar, Florida factory, using global components and materials.

Sold individually.
USA Limited Warranty: Two (2) years from the original date of purchase

Specifications

General

Specifications

Continuous Power Handling (RMS) 250 W Nominal Impedance (Znom) 4 ohms Physical

Specifications

Nominal Diameter 10.0 in / 250 mm Overall Diameter 10.75 in / 273 mm Bolt Hole Circle Diameter 9.70 in / 247 mm Frontal Grilles Protrusion 1.66 in / 42 mm Mounting Hole Diameter 8.875 in / 225 mm Mounting Depth 5.90 in / 150 mm Driver Displacement 0.052 cu ft / 1.47 L Net Weight 12.60 lb / 5.70 kg Parameters Free Air Resonance (Fs) 43.76 Hz Electrical "Q" (Qes) 0.907 Mechanical "Q" (Qms) 11.315 Total Speaker "Q" (Qts) 0.84 Equivalent Compliance (Vas) 0.54 cu ft / 15.29 L One-Way Linear Excursion (Xmax) * 0.52 in / 13.2 mm Reference Efficiency (no) 0.28 % Efficiency (1 W / 1 m)** 86.1 dB SPL Effective Piston Area (Sd) 50.11 sq in / 0.0323 sq m DC Resistance (Re) 4.54 ohms * Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied. ** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’ s output capability and should not be used as a comparison to other subwoofers to determine which one is "louder".

Sealed Enclosure

Specifications

Wall Thickness 0.75 in / 19 mm Front Baffle Thickness 0.75 in / 19 mm Volume (net int. ) 2.00 cu ft / 56.6 L External Width 17 in / 432 mm External Height 17 in / 432 mm External Depth 16.25 in / 413 mm F3 41.54 Hz Fc 53.41 Hz Qtc 1.0253 Ported Enclosure

Specifications

Wall Thickness 0.75 in / 19 mm Front Baffle Thickness 0.75 in / 19 mm Volume (net int. ) 2.50 cu ft / 70.8 L External Width 17 in / 432 mm External Height 17 in / 432 mm External Depth 20.50 in / 676 mm Internal Port Diameter 4 in / 102 mm Port Length 13.50 in / 343 mm Tuning Frequency (Fb) 30 Hz F3 25.09 Hz
