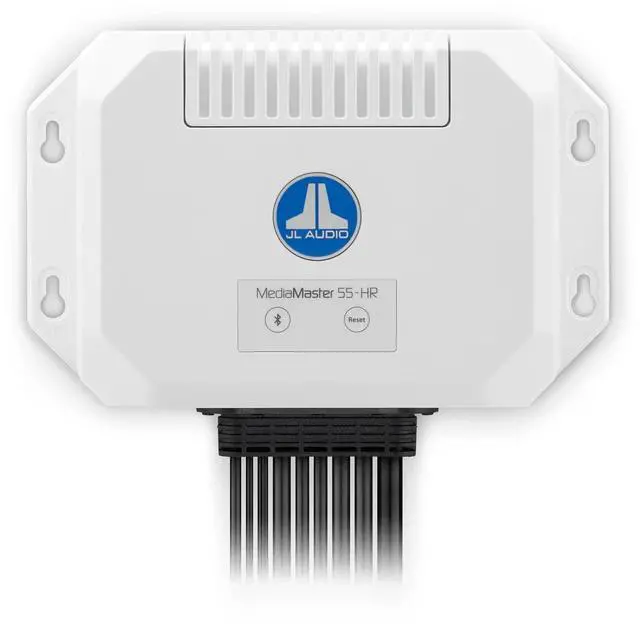

JL Audio MediaMaster 55 Weatherproof Hidden Source Unit

JL Audio MM55-HR Premium, Hidden Marine Source Unit with Built-in
Amplifier Model: MM55-HR Tough, water-resistant (IP67-rated) design and construction to withstand the elements Intuitive interface for easy operation while docked or underway Nine channels of audiophile-quality preamp outputs (4-volt RMS) from three separate audio zones, each with a dedicated subwoofer output Built-in amplifier generates 100 watts (25 watts x 4) of high-fidelity sound for zones 1 and 2 Digital AM/FM radio tuner with radio data system extended display info Built-in DAB+ radio (Europe) tuner (subject to local availability) Store up to 18 favorite stations (across all tuners) for quick selection Stream audio with BLUETOOTH wireless technology and the Qualcomm® aptX™ audio codec for amazing audio fidelity with compatible devices USB 2.0 direct-digital connections can access music files on your USB storage device with 1 amp charging output Auxiliary inputs accept analog audio signals directly from external sources
NMEA 2000 network-certified: MFD control functionality uses applicable network cables and connectors (sold separately) Engineered to deliver superb sonic excellence from integrated vessel applications, MediaMaster 55-HR is a premium hideaway receiver with all the features of the MediaMaster 55 source unit, less the physical controls and display screen. Outfitted with certified NMEA 2000® network connectivity, the MediaMaster 55-HR hideaway receiver can be controlled by your Garmin, Lowrance, Raymarine or Simrad multifunction Display (MFD) or a JL Audio MMR-40 network controller (sold separately). For uninterrupted enjoyment of your favorite stations and soundtracks, a variety of source and media options are on hand, including global radio tuners, a USB input, analog AUX input and streaming audio capabilities, courtesy of BLUETOOTH® wireless technology. Audio output options include a robust 4-channel onboard amplifier, capable of powering your speakers with 100 watts (25-watt RMS x 4) of pure sonic delight. Nine channels of audiophile-quality preamp outputs from three separate audio zones are also included, each with a dedicated subwoofer output. Each zone includes an array of flexible audio options and is controlled by a configurable master volume for quick, on-the-fly adjustments, allowing complete command over different areas of your boat.

Specifications

General

Specifications

Input Operating Voltage 10 - 16 VDC Standby Current Draw 100 mA Operating Current Draw 15 A Recommended Fuse Value 15 A Remote Turn-on Capacity 500 mA (max) Operating Temperature Range -4 F to +149 F (-20 C to +65 C) Output Channels One stereo pair and mono subwoofer RCA plugs per zone Output Zones Relative, Absolute, Fixed or Off Maximum Output Voltage 4V RMS (Relative or Absolute), Selectable 4V/2V/1V RMS (Fixed) Tuner FM Tuner with RDS 87.5 MHz to 107.9 MHz ( 0.2 MHz step) AM Tuner 530 kHz to 1710 kHz (10 kHz step) DAB+ Tuner 170 MHz to 230 MHz Favorites 18 presets across all tuners Bluetooth® Profile A2DP v 1.2, AVRCP v 1.4 Core Specification Version 2.1 + EDR Codec SBC, Qualcomm® aptX™ audio Connection Range Up to 35' (11 m) USB Interface USB 2.0 host Maximum Current Output 1 A Supported Audio Formats MP3, MP4, WAV, AAC, M4A, M4B Physical

Specifications

Width 7.68 in / 195 mm Depth 4.96 in / 126 mm Height 2.28 in / 58 mm What's in the
Box: MM55-HR Mediamaster Powercord #8 x 1 in screw x 4
