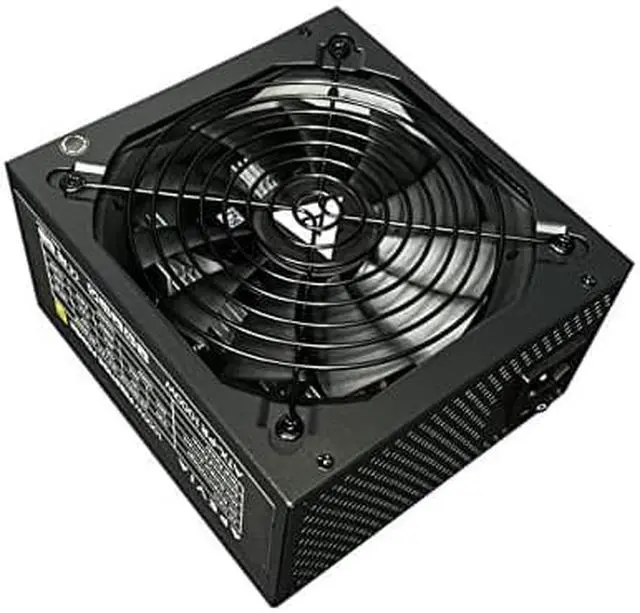

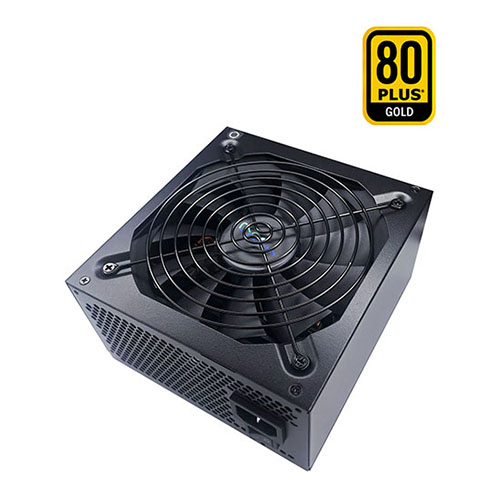

Apevia's Prestige line of power supplies brings great power and efficiency to your computer system. 80+ Gold certified, and designed for elegant form and function, they bring it to life. Supporting the 12v2.3 standard and single rail setup, it's updated for modern platforms. Boasting a 135mm silent black fan, it keeps everything inside cool. The Prestige line also uses Active PFC, with a 99% factor correction, boosting performance and saving energy. No toggle switch included, the power supply automatically switches between 110V and 230V depending on the power grid its attached to. ROHS certified.
- 1000W Power with 13.5cm black fan
- 80+ Gold & ROHS certified
- High stability with 5% tolerance of 5V, 3.3V & 12V output
- High quality components and housing
- Universal AC input by active PFC (99%PF Typical)
- Package contents
- Heavy-duty protections, including OVP (Over Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection)
Main Specifications
Product Description: Apevia Prestige ATX-PR1000W PCIE5.0 - power supply - 1000 Watt
Device Type: Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance: ATX12V 2.3
80 PLUS Certification: 80 PLUS Gold
Weight: 5 lbs
Input Voltage: AC 115-230 V
Output Voltage: +3.3, +5, ±12 V
Power Capacity: 1000 Watt
Output Current: +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 83 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A
Output connectors: 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 7 x 15 pin Serial ATA power ¦ 4 x 4 pin internal power ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 1 x 12+4 pin PCI Express 5.0 power
Cooling System: 135 mm fan
Color: Cosmic black
Dimensions (WxDxH): 6.2 in x 6.2 in x 3.3 in
Power Device
Input Voltage: AC 115-230 V
Frequency Required: 50 - 60 Hz
Power Output Connectors Details: 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 7 x 15 pin Serial ATA power ¦ 4 x 4 pin internal power ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 1 x 12+4 pin PCI Express 5.0 power
Output Voltage: +3.3, +5, ±12 V
Power Capacity: 1000 Watt
Output Current: +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 83 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A
Power Factor (PF): 0.99
80 PLUS Certification: 80 PLUS Gold
Cooling System: 135 mm fan
Features: On/off switch, metal housing, overvoltage protection, overpower protection, short-circuit protection, single 12V rail, non-modular
Compliant Standards: RoHS
Width: 6.2 in
Depth: 6.2 in
Height: 3.3 in
Weight: 5 lbs
