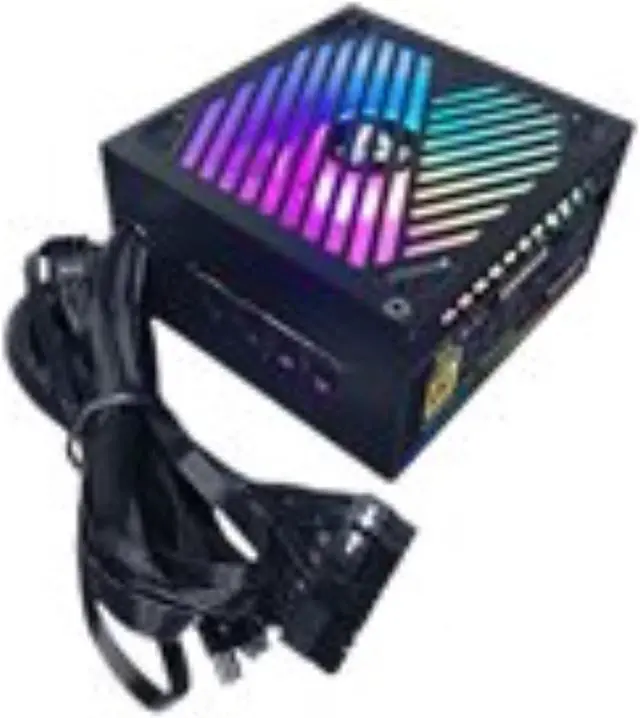

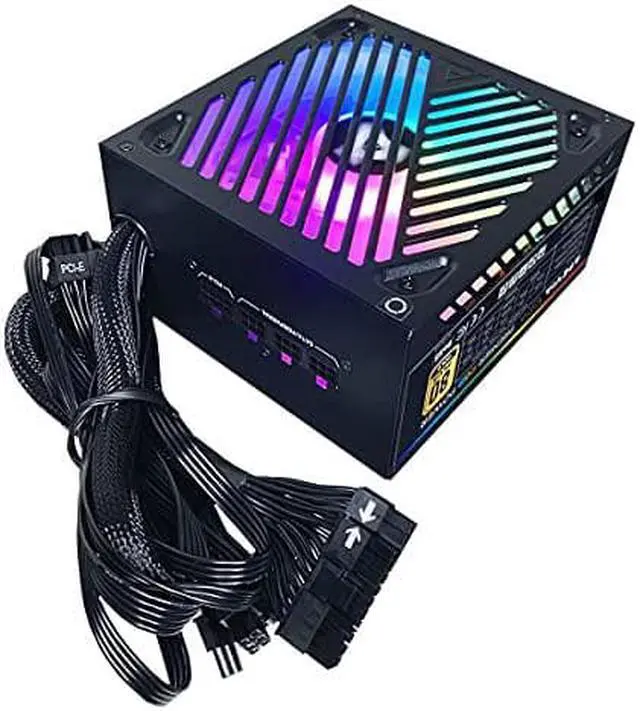

Apevia's Premier line of power supplies bring an elegant form and function to your system while still suiting your needs. Stable and reliable, it supports the newer ATX 12v2.3 standard and single rail setup. Boasting a cool 135mm RGB fan, it adds a nice glow to any computer. The Premier line also uses a hybrid modular cable setup, allowing you to use only the connectors that you need. No excessive tucking of wires required. Just put the unused plugs away for future use. It also uses Active PFC, with a 99% factor correction, boosting performance and saving energy. No toggle switch included, the power supply automatically switches between 110V and 230V depending on the power grid its attached to. 80+ Gold certified.
- 650W Power with 13.5cm RGB fan
- 80+ Gold certified
- High stability with 5% tolerance of 5V, 3.3V & 12V output
- Hybrid modular cable design
- High quality components and housing
- 20 + 4 pin main connector can be used for 20 pin or 24 pin
- 2 x 4/8 Pin ATX 12V connector
- 4 x 6+2 Pin PCI - Express
- 4 x SATA connector
- 4 x 4 pin peripheral connector
- 1 x floppy connector
- Each cable is removable

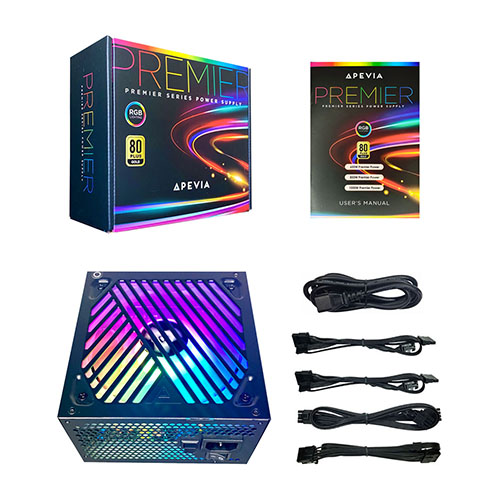

- Cables and accessories
- Heavy-duty protections, including OVP (Over Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection)
Main Specifications
Device Type: Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance: ATX12V 2.3
PSU Form Factor: ATX
Color: Black sand blasted
Input Voltage: AC 115-230 V
Frequency Required: 50 - 60 Hz
Power Output Connectors Details: 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 4 x 15 pin Serial ATA power ¦ 4 x 4 pin internal power
Output Voltage: +3.3, +5, ±12 V
Power Capacity: 650 Watt
Output Current: +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 54.1 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A
Power Factor (PF): 0.99
Modular Cable Management: Yes
80 PLUS Certification: 80 PLUS Gold
Cooling System: 135 mm fan
Features: Metal housing, overvoltage protection, overpower protection, short-circuit protection, single 12V rail, Hybrid Modular Cabling Design, RGB fan
Compliant Standards: FCC, RoHS
Width: 5.9 in
Depth: 6.3 in
Height: 3.3 in
Weight: 5 lbs
