GQ Adapter ADP-054 16 Bit EPROM 40/42 pin ZIF Adapter V4.1 for GQ-4x4
- For Standard/Enhanced Willem and GQ-2X,GQ-3X,GQ-4X True-USB EPROM programmer

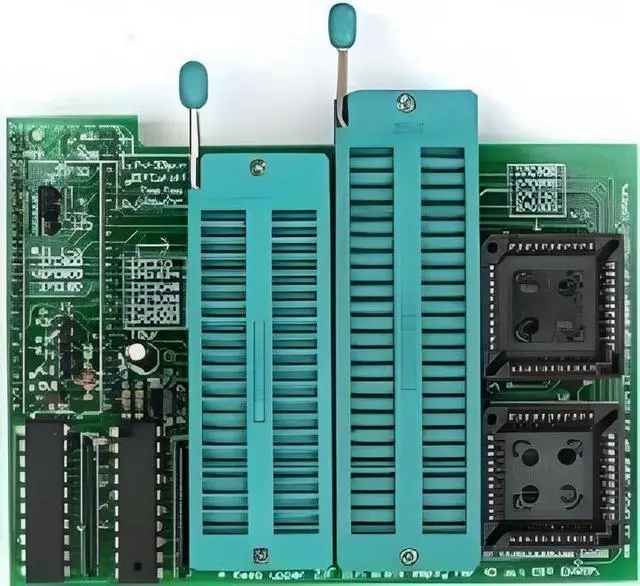

- It has on board both DIP40 and DIP42 ZIF sockets and 2 PLCC44 sockets on board in order to support both DIP and PLCC package 16 bit EPROMs easily
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
For Standard/Enhanced Willem and GQ-2X, GQ-3X, GQ-4X True-USB EPROM programmer. It has on board both DIP40 and DIP42 ZIF sockets and 2 PLCC44 sockets on board. So that be able to support both DIP and PLCC package 16 bit EPROMs easily. Device support on
ZIF socket: 27C1024, 27C2048, 27C4096, 27C210, 27C2002, 27C4002, 27C400, 27C800, 27C160, 27C322. The adapter set also includes 42 pin EPROM address wires for all 32 pin ZIF Willem programmer. For GQ-4X does not need address wires.
Jumper setting on board: J1 2-3 short 27c322, 1-2 short for all others J2 is extended address pin header, it is only for 42 pin EPROMs. Connect those pins to programmer address pin header, not the ZIF socket. J5, chip compatibility jumper. Only change it if the chip has inconsistent reading, writing.
ZIF socket: 27C1024, 27C2048, 27C4096, 27C210, 27C2002, 27C4002, 27C400, 27C800, 27C160, 27C322. The adapter set also includes 42 pin EPROM address wires for all 32 pin ZIF Willem programmer. For GQ-4X does not need address wires.
Jumper setting on board: J1 2-3 short 27c322, 1-2 short for all others J2 is extended address pin header, it is only for 42 pin EPROMs. Connect those pins to programmer address pin header, not the ZIF socket. J5, chip compatibility jumper. Only change it if the chip has inconsistent reading, writing.
