GQ-4x4 True-USB Universal Programmer
- Neat robust enclosure; 40pin ZIF socket, fully automatic; JTAG support; Fast mode SPI support
- Support Windows O/S XP 32bit 64bit, Vista 32bit, Vista 64bit; Window7/8/10/11 32bit and 64bit
- Real True USB interface for both data transfer and power supply
- High speed/fastest; User-friendly; Simplest-to-use
- Software update regularly; Free lifetime software upgrade/download
- Multi-language support capability: English, French, German, Spanish, Portuguese, Czech, Chinese, etc.
Key and Unique Features
- Complete new professional design with own robust enclosure and 40pin ZIF socket
- Fully automatic & no manual set-up needed (eliminate all jumpers & DIP-switch)
- Fast mode SPI programming & JTAG support wider the application
- True USB data transfer interface with PC/laptop for newer laptop use as well as portable application
- Exponentially speed increases up to 20 times faster
- Dual power supply capability: USB port & AC/DC and automatic voltage control
- The GQ-USB software is specially developed for True USB Willem programmers GQ-4X
- Working with the adapters further expands the supported devices list
- Covers the widest application areas among all Willem programmers
GQ-4x4 supports thousands of the most popular application devices (growing) and ideally suits the portable/convenient applications that include: satellite devices, BIOS refreshing, motherboard BIOS in-circuit upgrade, X-box, Wii gaming machines, EPROM duplicate, Altera Xilinx JTAG, PIC/MCU development, newer laptop technology and newer desktop PC, etc.
It has outstanding performance which supports the devices that other similar products are not capable of supporting: such as 25LF SPI series, PSOP44, TSOP48, 25VF SPI series, Altera Xilinx CPLD JTAG, PLCC84, SST39VF3201, TE28F102, 27C1024, 27C1028, HD6475, 29F800, 29LV800, 29F032.
| On Market |
Yes |
| Hardware |
Enhanced Version (V4) |
| Software |
7.11+ |
| USB Driver |
V3.0 |
| CPU Speed |
Fast |
| Stability |
High |
| Flexibility |
High |
| Chip Supported |
Supports All GQ-4X Devices |
| Adapter Compatibility |
Compatible With All GQ-4X Adapters |
| Multi-Language Support |
14 Languages |
| Supported Windows OS |
XP, Vista, 7, 8, 8.1, 10 (Both 32 Bits & 64 Bits) |
This listing is a GQ brand universal device programmer/adapter bundle that is a direct factory sale from developer and manufacturer.
This combination is PRG-055+ADP-003, ADP-003=ADP-077+ADP-072
Product Version:
GQ Programmer Hardware version: GQ-4X4 (upgrade version of GQ-4X)
GQ Programmer Software version: 7.11 or above
Adapter: ADP-003 TSOP48 8/16 bit adapter for Willem Programmer
Warranty:
besides eBay's warranty, we offer additional warranty (one year factory warranty)
Get Question or need help? Pre and
Post-sale Support options:
Email us 24/7: support
Call us either Seattle USA office or Vancouver Canada office
Visit MCUmall support forum (MCUmall online support community)

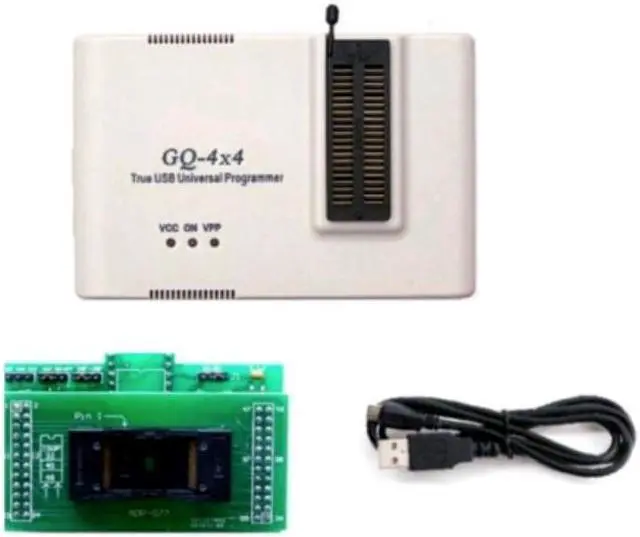

The package includes:
One GQ-4X4 True-USB Willem Programmer (high quality 40pin ZIF socket)
One black USB Cable (for both power supply and data communication)
One ADP-003 TSOP48 8/16 bit adapter for Willem Programmer
Also, customer can always download the newest software at company website

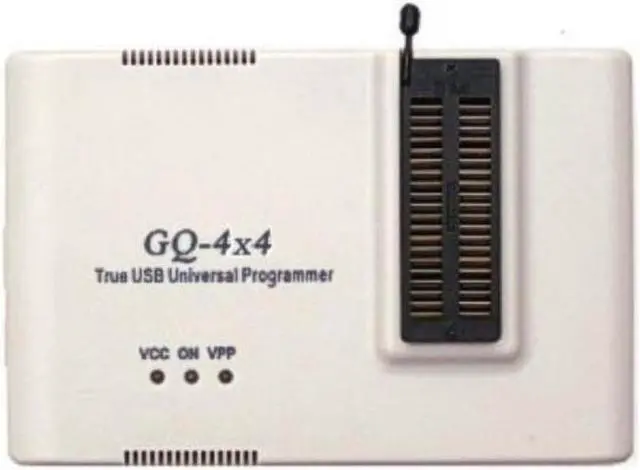

GQ-4X4 USB universal chip programmer
GQ GQ-4X V4 (GQ-4X4) programmer is the enhanced & upgraded version of GQ-4X and newly launched in the market.

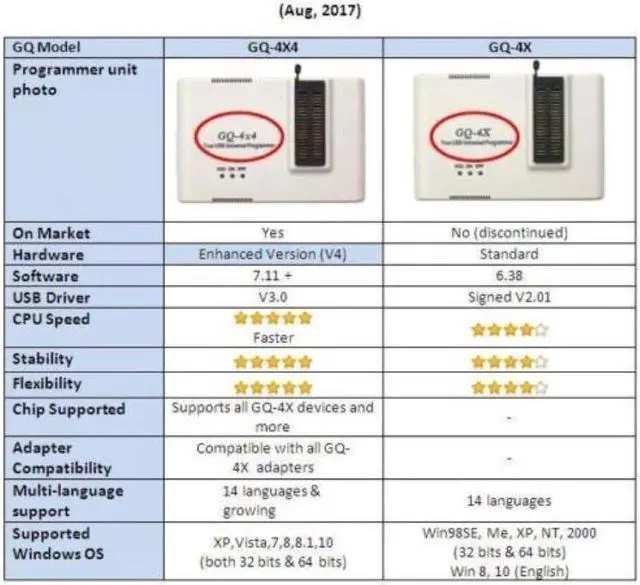

The comparison table between GQ-4X4 and GQ-4X, please refer to the listing picture.
GQ-4X is most popular model of True USB Willem Universal Programmer series from MCUmall Electronics Inc Canada.
Features of ADP-003 TSOP48 8/16 bit adapter for Willem Programmer
Device supported:
- All brand 29F200, 29F400, 29F800, 29F160(read/write byte mode).
- All brand 29LV200, 29LV400, 29LV800, 29LV160, 29LV320 compatible flash chip.
Such as: AM29FXXX, AM29LVXXX, HY29FXXX, HY29LVXXX, 49F8192A i28F200, i28F400, i28F800, i28F16029LV200, 29LV400, 29LV800, 29LV160, MX29LV400, MX29LV800, MX29LV160, MX29LV320(read/write byte mode)
This is V 3.0 added a jumper J4 for supporting S29GL064N90TFI040 TSOP48 package
About developer/manufacturer:
Registered company at Canada and USA; design, develop, manufacture affordable tools/instruments in the area of embedding system and health/environment radiation protection meters.
More readings:
With its complete new professional design, GQ brand True USB PRO 40pin Willem programmer GQ-4X is the first & exclusive Willem universal programmer in the market that owns the unique features
Neat robust enclosure; 40pin ZIF socket, fully automatic; JTAG support; Fast mode SPI support;
Support Windows O/S XP 32bit 64bit, Vista 32bit, Vista 64bit; Window7/8/10/11 32bit and 64bit
Real True USB interface for both data transfer and power supply;
High speed/fastest; most-user-friendly; simple-to-use;
Multi-languages support capability: Chinese, Czech, English, French, German, Spanish, Portuguese and etc.
Software update regularly; free life-time software upgrade/download from company website;
The application-oriented & application-enhanced design facilitates GQ-4X supports thousands of most popular application devices (growing) and ideally suits the portable/convenient applications that includes: car automotive field ECU chip tuning, airbag reset, mileage, satellite devices, BIOS refreshing, motherboard BIOS in-circuit upgrade, xBox, Wii gaming machines EPROM duplicate, Altera Xilinx JTAG, PIC/MCU development, newer laptop technology and newer desktop PC etc.
It has outstanding performance which supports the devices that other similar products are not capable of supporting: such as 25LF SPI series, PSOP44, TSOP48, 25VF SPI series, Altera Xilinx CPLD JTAG, PLCC84, SST39VF3201, TE28F102, 27C1024, 27C1028, HD6475, 29F800, 29LV800, 29F032...
Features
1. Complete new professional design with own robust enclosure and 40pin ZIF socket
Neat robust enclosure is designed to suit the portable and field convenient applications
40 pin of the ZIF socket supports more chips without adapter
First and only Willem programmer with 40pin ZIF socket, other models use 32pin ZIF
The software & hardware are Designed/developed by MCUmall Electronics Inc. Canada
Assembled in Canada and post-sales support by MCUmall Electronics Inc.
2. Fully automatic & no manual set-up needed (eliminate all jumpers & DIP-switch)
Fully automatic for efficient use and extends the programmer life time
Eliminates all jumpers on board, manual set-up for jumpers is no longer needed (all non-USB
Willem use jumpers: 16 jumpers on PCB 5.0C, 48 jumpers on Willem 1.5 )
Eliminate the on-board DIP switch, manual set-up for DIP switch is no longer needed.
This also makes much easier & very simple to use for end users.
Plug-and-play reduces the learning curve and save your precious time.
3. Fast mode SPI programming & JTAG support wider the application
Useful for motherboard BIOS in-circuit upgrade
Altera Xilinx CPLD JTAG support
4. True USB data transfer interface with PC/Laptop for newer laptop use as well as portable application
Uses only one USB cable to connect with PC/Laptop USB port for both data transfer and power supply. The bulky DB25 data cable is eliminated & no longer needed for data transfer between PC and programmer board
It is True/Real USB data transmission protocol (USB-USB), Not via Fake/Pseudo-USB data communication.
Fake/Pseudo USB data transfer needs the middle serial or parallel port conversion: USB-Serial-USB conversion or LPT-USB conversion, this limits the programming speed significantly.
GQ-4X features the same revolutionary data interface as GQ-3X, the True USB data transmission with PC/Laptop.
5. Exponentially speed increase up to 20 times faster
Connects PC via high-speed USB link, provides the fastest possible data transfer rates for programming/reading data from target IC's.
It is capable of being up to 20 times faster than other existing printer port Willem (parrelle
LPT Willems: PCB6. xx, PCB 5.0C, PCB 4.5C ) programmers on reading & verification a high density flash device, this significantly saves your time and increases work efficiency as well as facilitates small scale production.
Assembly language written programming algorithms run fast and reliable. Not affected by the PC speed changes and Windows 0/S variations.
6.
Dual power supply capability: USB port & AC/DC and automatic voltage control
Vcc supported among: 3.6V, 5V, 5.5V, 6.5V
On-Board MCU for stable performance & automatic/accurate voltage control
Works best among other programmers for EPRO
Ms
7. The GQUSB software is especially developed for True USB Willem programmers GQ-4X4, GQ-4X, GQ-3X, GQ-2X
Free Life-time software download/upgrade, please click here for software revision history
Updates software and device algorithm regularly
Free IC device updates via web
Support Windows O/S XP 32bit 64bit, Vista 32bit, Vista 64bit; Window7/8/10/11 32bit and 64bit
Advanced software engineered to provide most user-friendly interface & simplest and easiest-to-use Willem programmer version to save time and comfort to use
Multi-language support,
such as: English, German, Spanish, Chinese, French, Czech, Portugues
Programming history memory function on-board
Supports most popular ECU, Satellite, xBox, Wii, BIOS, EPROM
chips: SST39VF3201, TE28F102, 27C1024, 29F800, 29LV800..
Supports the chips that LPT Willem are not capable of supporting, like 24RF08, 28F102, 87C257 and more
Supports TSOP48, PSOP44, 16bit EPROM chips that 40 pin TOP, EasyPro, Wellon are not capable of supporting
Supports 25LF SPI series, 25VF SPI series, Altera Xilinx CPLD JTAG, PLCC84, 29F032...
Allows end users add in their own chips/devices easily (editing. txt file)
8. Working with the adapters further expands the supported devices lis
Accommodate the adapters (GQ-3X/2X and parallel LPT Willem adapter)
Packaging supported: TSOP48 (16bit & 8 bit), TSOP32, PSOP44, DIP8 to DIP40, PLCC, SOP, SOIC, MCS-51+, PLCC84, and etc.
9. Covers the widest application areas amount all Willem programmers
Car/automotive ECU chip tuning, airbag reset, mileage, memory device code read/write/program
Satellite large capacity device applications
On-spot/Field/portable applications & Small scale production
Motherboard BIOS in-circuit upgrading
XBox, Wii gaming chip fresh & upgrading
PIC & MCU programming & development
Duplicate EPROM chips & Game machine repairing
Copier/Fax machine/printer main board repairing
VCD, DVD, color TV maintaining& repairing
Intellectual property owner of USB Willem Programmer MCUmall True USB GQ-4X, GQ-3X
& GQ-2X: MCUmall Electronics Inc.
