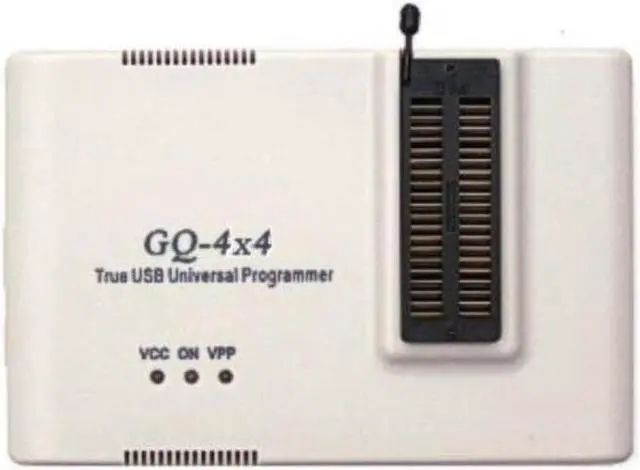

GQ-4x4 True-USB Universal Programmer
- Neat robust enclosure; 40pin ZIF socket, fully automatic; JTAG support; Fast mode SPI support
- Support Windows O/S XP 32bit 64bit, Vista 32bit, Vista 64bit; Window7/8/10/11 32bit and 64bit
- Real True USB interface for both data transfer and power supply
- High speed/fastest; User-friendly; Simplest-to-use
- Software update regularly; Free lifetime software upgrade/download
- Multi-language support capability: English, French, German, Spanish, Portuguese, Czech, Chinese, etc.
Key and Unique Features
- Complete new professional design with own robust enclosure and 40pin ZIF socket
- Fully automatic & no manual set-up needed (eliminate all jumpers & DIP-switch)
- Fast mode SPI programming & JTAG support wider the application
- True USB data transfer interface with PC/laptop for newer laptop use as well as portable application
- Exponentially speed increases up to 20 times faster
- Dual power supply capability: USB port & AC/DC and automatic voltage control
- The GQ-USB software is specially developed for True USB Willem programmers GQ-4X
- Working with the adapters further expands the supported devices list
- Covers the widest application areas among all Willem programmers
GQ-4x4 supports thousands of the most popular application devices (growing) and ideally suits the portable/convenient applications that include: satellite devices, BIOS refreshing, motherboard BIOS in-circuit upgrade, X-box, Wii gaming machines, EPROM duplicate, Altera Xilinx JTAG, PIC/MCU development, newer laptop technology and newer desktop PC, etc.
It has outstanding performance which supports the devices that other similar products are not capable of supporting: such as 25LF SPI series, PSOP44, TSOP48, 25VF SPI series, Altera Xilinx CPLD JTAG, PLCC84, SST39VF3201, TE28F102, 27C1024, 27C1028, HD6475, 29F800, 29LV800, 29F032.

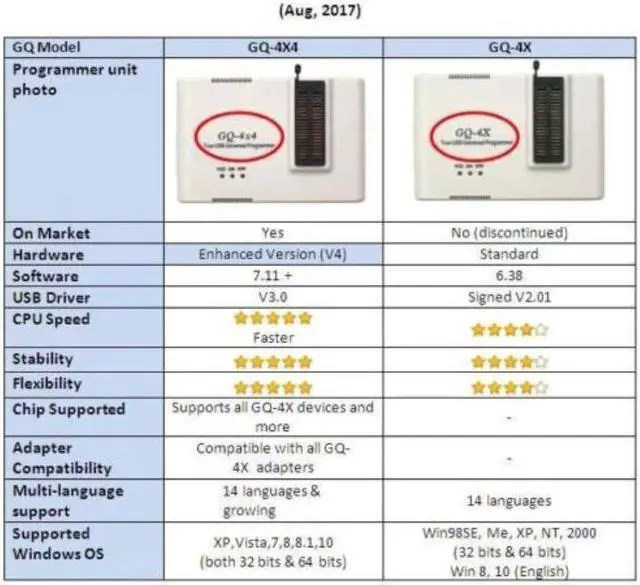

| On Market |
Yes |
| Hardware |
Enhanced Version (V4) |
| Software |
7.11+ |
| USB Driver |
V3.0 |
| CPU Speed |
Fast |
| Stability |
High |
| Flexibility |
High |
| Chip Supported |
Supports All GQ-4X Devices |
| Adapter Compatibility |
Compatible With All GQ-4X Adapters |
| Multi-Language Support |
14 Languages |
| Supported Windows OS |
XP, Vista, 7, 8, 8.1, 10 (Both 32 Bits & 64 Bits) |
This listing is about a GQ brand programmer/adapter bundle that is a direct factory sale from developer and manufacturer.
This is the combination of PRG-055+ADP-064
Product version:
GQ Programmer Hardware version: GQ-4X4 (upgrade version of GQ-4X) W25Q256 Chip
GQ Programmer Software version: 7.11 or above
GQ Adapter: Hitachi PLCC84 adapter
Warranty:
Besides eBay's warranty, we offer an additional warranty (one-year factory warranty)
Get Question or need help? Pre and
Post-sale Support channels:
Email us 24/7: support
Call us either Seattle USA or Vancouver Canada
Visit MCUmall support forum (MCUmall online support community)

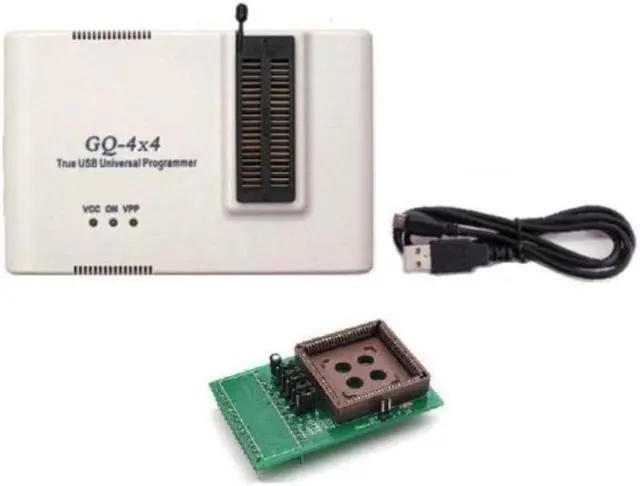

The package includes:
One GQ-4X4 True-USB Willem Programmer (high quality 40pin ZIF socket)
One black USB Cable (for both power supply and data communication)
One 16 bit EPROM adapter
Also, customers can always download the newest software at our company website
Features of ADP-064 Hitachi H8/532/534/536 PLCC84 adapter
This adapter is for Hitachi H8 series CPU programming.
It works on True USB Willem programmer GQ-3X, GQ-4X, GQ-4X4 programmer.
It accept following devices:
HD6475328CP PLCC84 leads CPU
HD6475348CP PLCC84 leads CPU
HD6475368CP PLCC84 leads CPU
About the developer/manufacturer:
Registered company at Canada and USA; design, develop, manufacture affordable tools/instruments in the area of embedding system and health/environment radiation protection meters.
More reading:
GQ-4X4 is the hottest model of True USB GQ series Universal Programmer series from MCUmall Electronics Inc Canada.
With its complete new professional design, True USB PRO 40pin Willem programmer GQ-4X4 is the first & exclusive Willem universal programmer in the market that owns the key/unique features:
Neat robust enclosure; 40pin ZIF socket, fully automatic; JTAG support; Fast mode SPI support;
Real True USB interface for both data transfer and power supply;
High speed/fastest; most-user-friendly; simplest-to-use;
Support Windows O/S XP 32bit 64bit, Vista 32bit, Vista 64bit; Window7/8/10/11 32bit and 64bit
Software update/upgrade regularly by MCUmall Canada;
Allows end users to add in their own chips/devices easily to the software (editing. txt file)
MCUmall GQ USB Software update history
Over 20, 000 users worldwide, include corporate customers
Multi-languages support capability (14languages): Arabic, Czech, Dutch, English, Estonian, French, German, Greek, Hungarian, Italian, Spanish, Portuguese, Russian, Turkish
Support chip package: POSOP44, PSOP56, TSOP48, TSOP40, TSOP40, TSOP32, SOIC, PLCC84, PLCC44, PLCC32, FWH+16bit EPROM, AVR
Wide range of available adapters
