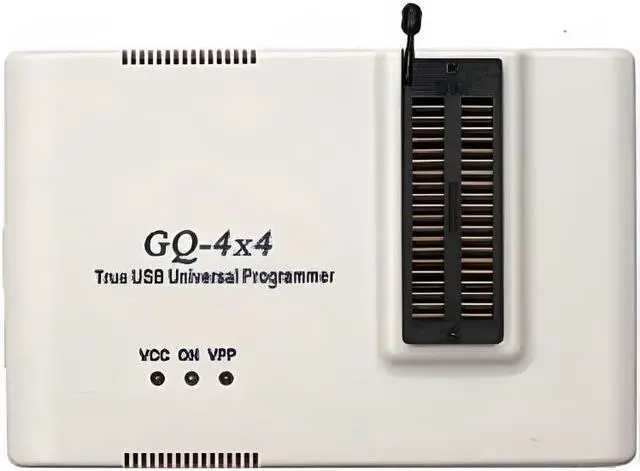

GQ-4x4 True-USB Universal Programmer
- Neat robust enclosure; 40pin ZIF socket, fully automatic; JTAG support; Fast mode SPI support
- Support Windows O/S XP 32bit 64bit, Vista 32bit, Vista 64bit; Window7/8/10/11 32bit and 64bit
- Real True USB interface for both data transfer and power supply
- High speed/fastest; User-friendly; Simplest-to-use
- Software update regularly; Free lifetime software upgrade/download
- Multi-language support capability: English, French, German, Spanish, Portuguese, Czech, Chinese, etc.
Key and Unique Features
- Complete new professional design with own robust enclosure and 40pin ZIF socket
- Fully automatic & no manual set-up needed (eliminate all jumpers & DIP-switch)
- Fast mode SPI programming & JTAG support wider the application
- True USB data transfer interface with PC/laptop for newer laptop use as well as portable application
- Exponentially speed increases up to 20 times faster
- Dual power supply capability: USB port & AC/DC and automatic voltage control
- The GQ-USB software is specially developed for True USB Willem programmers GQ-4X
- Working with the adapters further expands the supported devices list
- Covers the widest application areas among all Willem programmers
GQ-4x4 supports thousands of the most popular application devices (growing) and ideally suits the portable/convenient applications that include: satellite devices, BIOS refreshing, motherboard BIOS in-circuit upgrade, X-box, Wii gaming machines, EPROM duplicate, Altera Xilinx JTAG, PIC/MCU development, newer laptop technology and newer desktop PC, etc.
It has outstanding performance which supports the devices that other similar products are not capable of supporting: such as 25LF SPI series, PSOP44, TSOP48, 25VF SPI series, Altera Xilinx CPLD JTAG, PLCC84, SST39VF3201, TE28F102, 27C1024, 27C1028, HD6475, 29F800, 29LV800, 29F032.
| On Market |
Yes |
| Hardware |
Enhanced Version (V4) |
| Software |
7.11+ |
| USB Driver |
V3.0 |
| CPU Speed |
Fast |
| Stability |
High |
| Flexibility |
High |
| Chip Supported |
Supports All GQ-4X Devices |
| Adapter Compatibility |
Compatible With All GQ-4X Adapters |
| Multi-Language Support |
14 Languages |
| Supported Windows OS |
XP, Vista, 7, 8, 8.1, 10 (Both 32 Bits & 64 Bits) |
Features of ADP-033a TSOP 20mm complte adapter set
This is a newest complet standard 20mm TSOP adapter set for Willem programmers Version
3. It is for both True-USB Willem programmer and all parallel Willem Programmers. It is the best for GQ-3X and GQ-4X. The adapter set can be used for all standard 20mm TSOP32, TSOP40, and the TSOP48 package chips.
The set comes with TSOP48 ZIF board, 5 base boards and 3 address wires.
The set include:
1. ADP-083 TSOP32 base board
2. ADP-071 FWH-TSOP32-TSOP40 2-in-1 base board,
3. ADP-082 TSOP40A/B 2-in-1 base board,
4. ADP-072 TSOP48(16/8bit) base board
5. ADP-073 TSOP48 (16bit) base board.
6. ADP-077 TSOP48 ZIF socket top board
7. Address wires
Supported devices on each base board as following:
TSOP32 base board EEPROM: 28/28C512, 010, 020, 040
EPROM: 27C010, 020, 040, 080
Flash memory: 28F/29C/29F/39F/49F512, 010, 020, 040, 001, 002, 004 / SST39VF020
FWH-TSOP32-TSOP40 2-in-1 base board:
INTEL: i82802AB, i82802ACATMEL: AT49LW040, SST: SST49LF002/A, SST49LF003/A, SST49LF004/A; W39V040F, W39V040FA, W39V040FAP
LPC Flash:
SST: SST49LF020/A, SST49LF030/A, SST49LF040/A; W39V040A, W39V040AP, W49V002A, W49V002APSST 49LF002B, 49LF004B
FWH/LPC:
PMC: PMC49FL002, PMC49FL004
ST micro: M50FW040, M50FW002, M50LPW002, M50LPW040, M50FLW040A, M50FLW040B, INTEL: i82802AC;
ATMEL: AT49LW080/008;
SST: SST49LF008/A;
LPC flash:
SST: SST49LF080/A;
FWH/LPC: ST
micro: M50FW080/008, M50LPW080/008, M50FW016, M50LPW116; PT49V080/008
TSOP40A/B 2-in-1 base board
TSOP40A: MBM29LV002ST/SB, MBM29LV002TC/BC, MBM29LV002TA/BA, MBM29LV004, MBM29LV008, MBM29LV016, MBM29LV017, MBM29LV080, MBM29F002ST/SB, MBM29LV016, Am29LV004, Am29LV002, Am29LV008; AM29F002ST/SB, AM29F004X, AM29F008X, AM29F16X, AM29F032X, SST39VF080
TSOP40B: MBM29F017A, MBM29F016A, MBM29F080, 28F008SA, 29F004S5, 29F032, Am29F080, Am29F016B, Am29F016, Am29F017B, Am29F065MU, M29F032
TSOP48(16/8bit)base board: Am29F400, Am29F800, Am29F160, Am29F320, HY29F200, HY29F400, HY29F800, AT49F2048A, AT49F4096A, AT49F8192A 29LV200, 29LV400, 29LV800, 29LV160, 29LV320, AT49LV1614, i28F200, i28F400, i28F800, i28F160 (TSOP48), 28F001 (DIP32 or PLCC32), MX29LV400, MX29LV800, MX29LV160, MX29LV320
TSOP48 (16bit) base board: INTEL 28FX 00: 28 F400 B3T; 28F800 B3T, 28F160 B3T; 28F400 B3B; 28F800 B3B; 28F160 B3B; 28F800 C3T; 28F160 C3T; 28F320 C3T; 28F800 C3B; 28F160 C3B; 28F320 C3B; 28F320 J3; 28F640
J3; 29LVX00: MBM29LV400-T; MBM29LV800-T; MBM29LV160-T; MBM29LV400-B; MBM29LV800- B; MBM29LV160- B; MBM29DL400; MBM29DL800; MBM29DL16X; MBM29DL32X; MBM29DL322; 39LF/VFX 00: 39 LF/VF200A; 39LF/VF400A; 39LF/VF800A; 39LF /VF160; 29FX 00:29 F100; 29F200; 29F400; 29F800; 29F160; 29F320; 29F102, SST39VF200, 400, 800, SST39VF1061, 3201, 6401, SST39VF1062, 3202, 6402
Warranty
Warranted to be free of defect in workmanship/material
Supported by MCUmall Electronics Inc., Canada/GQ Electronics USA
We accept return-for-refund or return-for-exchange
One year factory warranty
Shipping & Handling
Ship directly from USPS of Seattle, WA, U. S. A
Shipped within 1 business day once receive cleared payment
