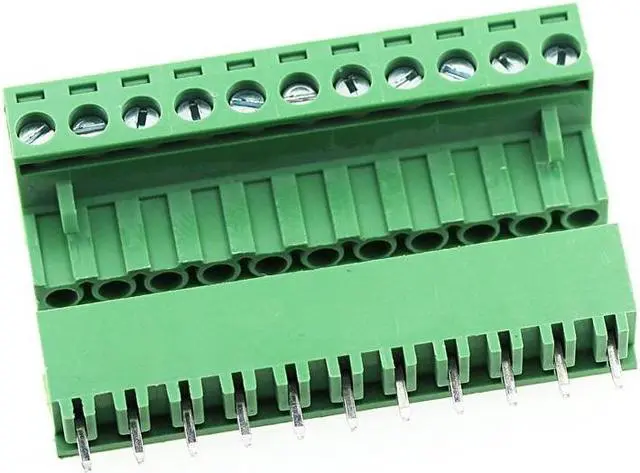

10pcs 2EDG 11Pin Plug-in Screw Terminal Block Connector 5.08mm Pitch Straight
- 2EDG5.08-11P
- 5.08mm Pitch
- Straight
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description:
- Voltage rating: 300V
- Current rating: 10A
- Pitch: 5.08mm
- Wire range: Solid wire(AWG): 18-30
- Torque: 1.8 Lb-In
- Screw: M4
- Wire strip length: 4.5~5mm
- Withstanding Voltage: 1.5KV
- Operating temperature: -40 Degrees Celsius to +105 Degrees Celsius
- Soldering temperature: 250 Degrees Celsius +/-10 Degrees Celsius /5 Sec
- Pin Number: 11
Package Content:
- 10pcs 2EDG 11Pin Plug-in Screw Terminal Block Connector 5.08mm Pitch Straight
