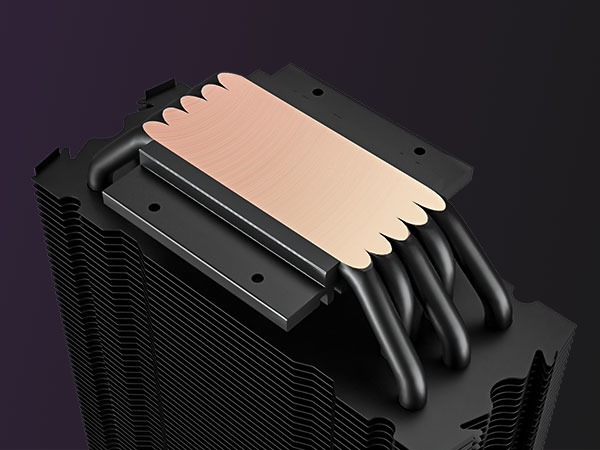

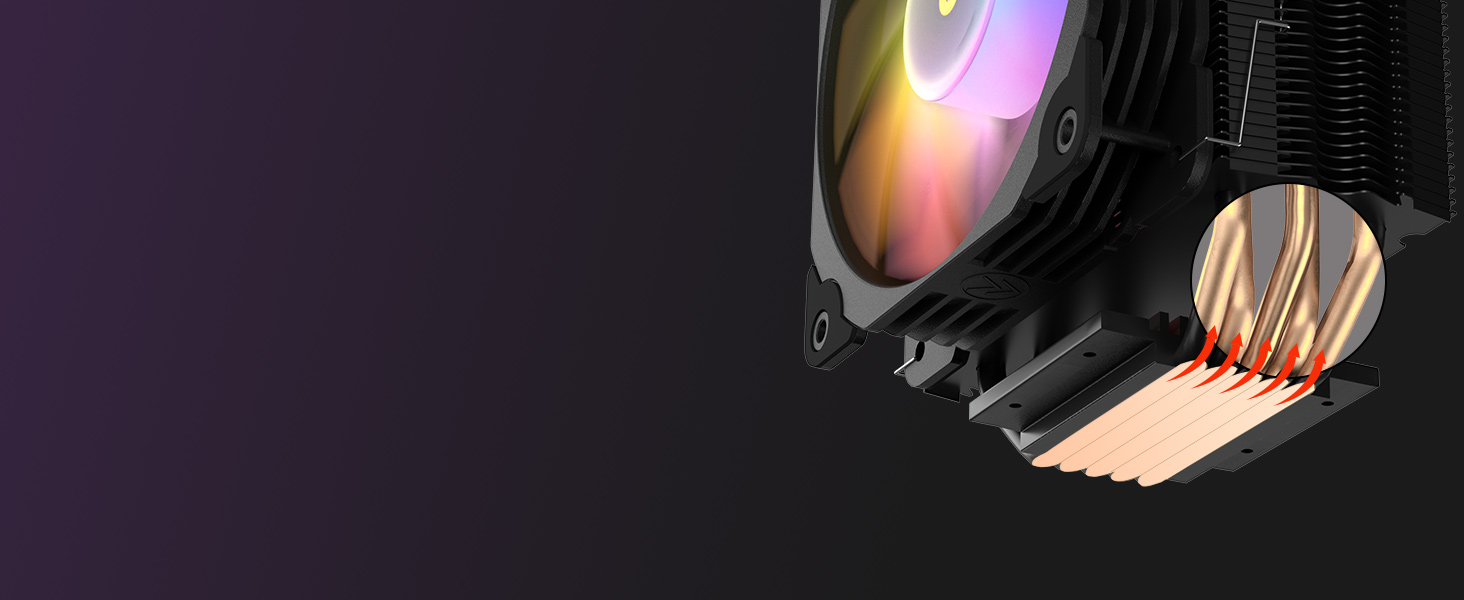

5 Heat Pipes Direct Touch
6mm pure copper internal capillary structure increases more surface area, and the heat pipe utilizes evaporative cooling to make the temperature difference between the two ends of the heatpipes, so that the heat is rapidly conducted and dramatically improves the heat dissipation efficiency.

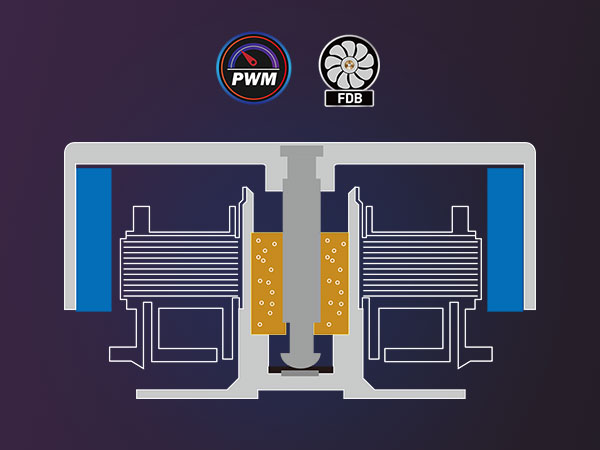

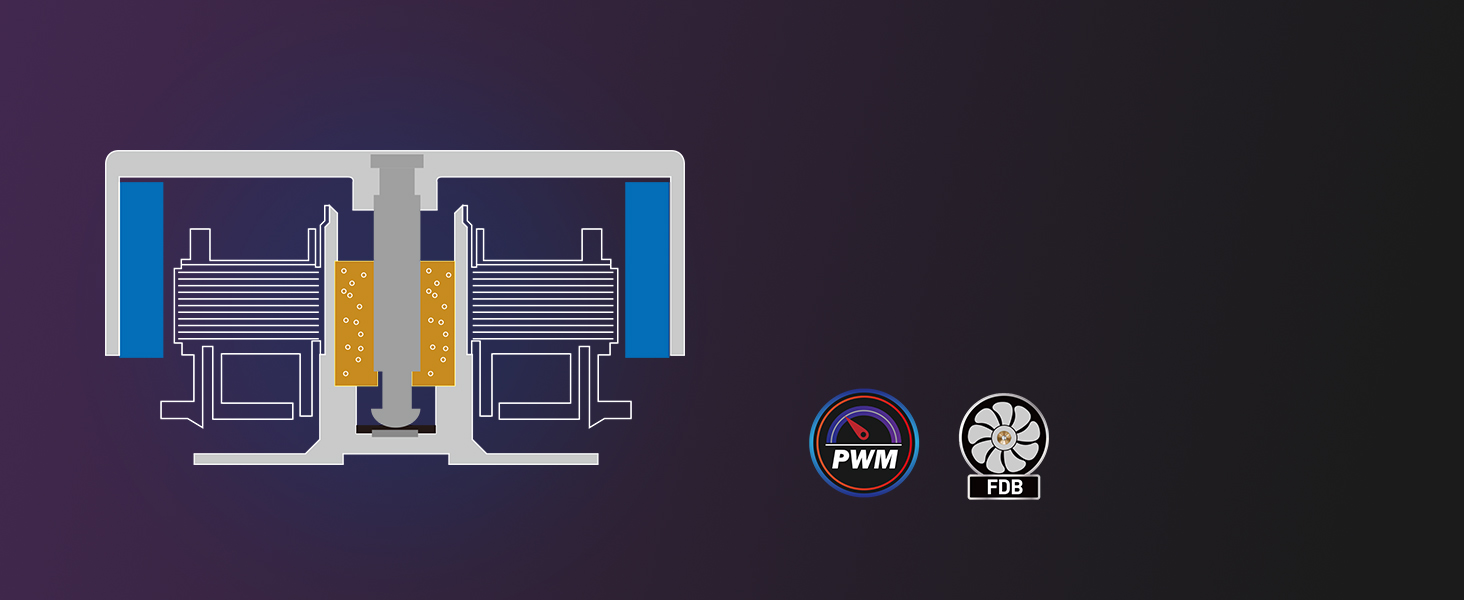

FDB Bearing Effectively Reduces Friction
Make the fan run more smoothly, extend the life span. Efficiently cools your CPU to prevent overheating, ensuring smooth and quiet operation for your computer.

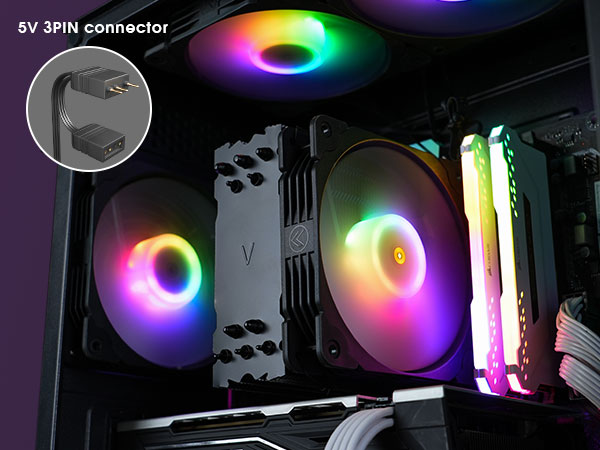

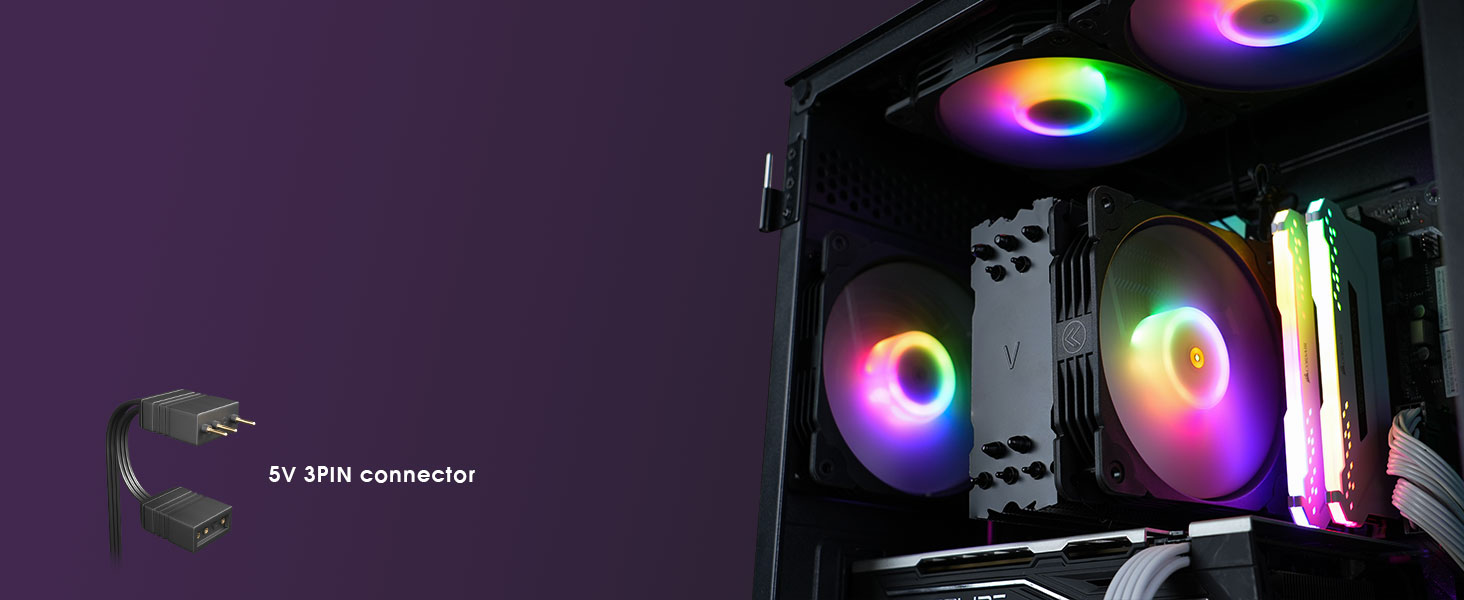

Infinite Lighting Possibilities
The addressable LED fan can sync with your motherboard via 5v 3-pin port, provides infinite lighting configuration as your wish.

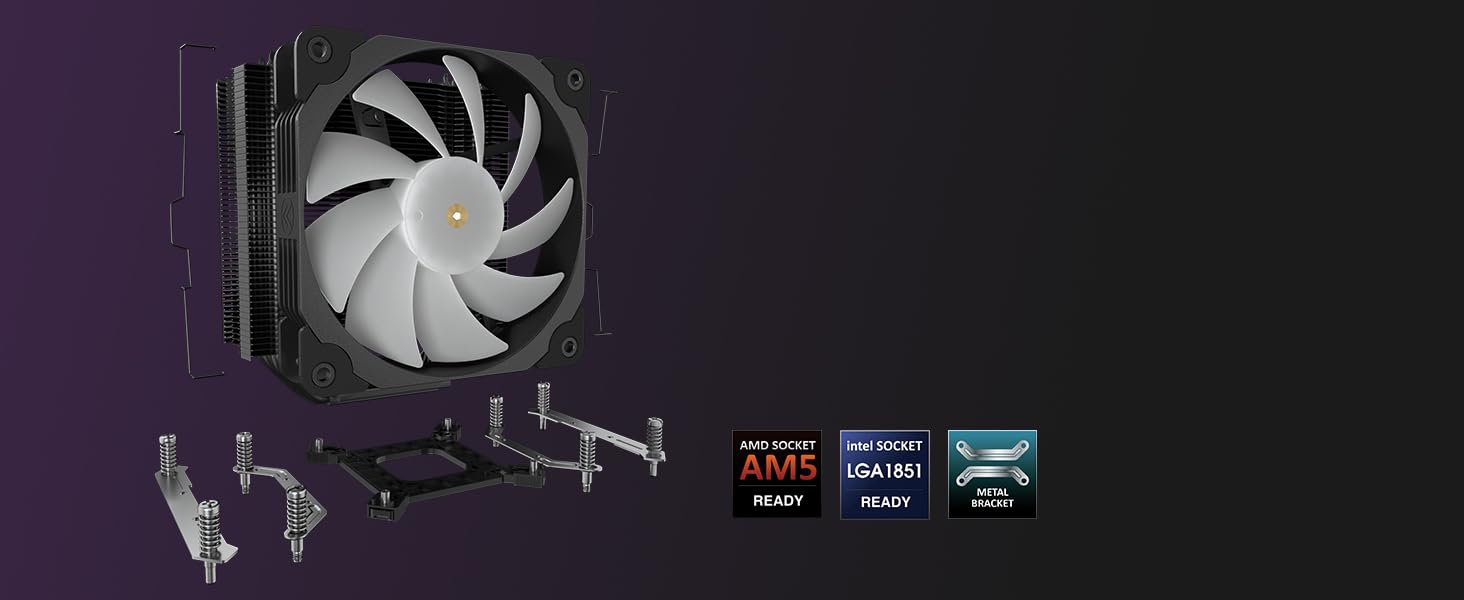

Easy Installation
Compatibility
AMD Socket: AM5/AM4 & Intel Socket: LGA 1851/1700/1200/115X

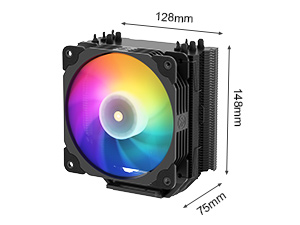

Dimension
Overall Size: 128 x 148 x 75 mm
Fan Dimension: 120 x 120 x 25 mm

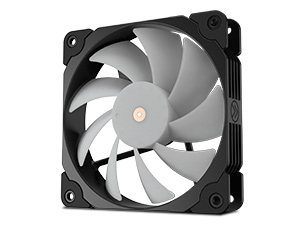

120mm FBD & PWM Fan
4-Pin PWM control allows for dynamic speed adjustment between 800-1700±10% RPM,min noise or max airflow.

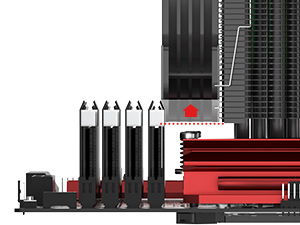

Tailored for RAM
You can adjust the height of fan up and down according to your RAM, it will not affect the performance of cooler.

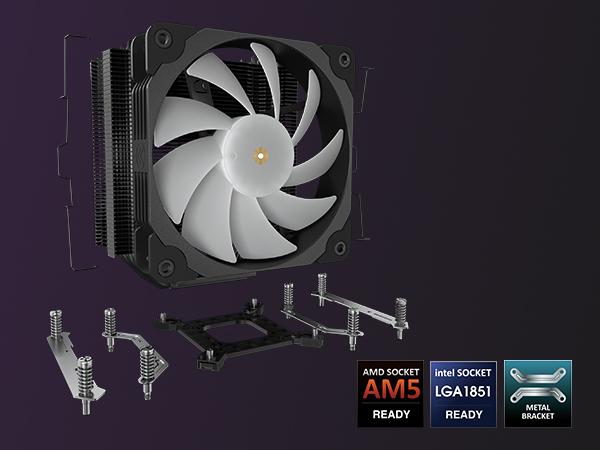

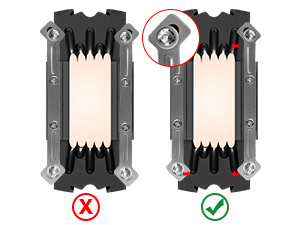

AMD Motherboard Install
Install bracket with the right dierction and keep the original backplate of motherboard
Compare with similar products
 V5 |  V5E |  V3 |  Eclipse | |
|---|---|---|---|---|
Customer Reviews | — | — | — | — |
Price | — | — | — | — |
AMD CPU Socket | AM5/AM4 | AM5/AM4 | AM5/AM4 | - |
Intel CPU Socket | LGA 1851/1700/1200/115X | LGA 1851/1700/1200/115X | LGA 1851/1700/1200/115X | LGA 1851/1700 |
Dimensions (LxWxH) | 128 x 75 x 148 mm | 120 x 73 x 155 mm | 92 x 96 x 133 mm | 100 x 72 x 100 mm |
Heatsink/Radiator | 5 Heatpipes | 5 Heatpipes | 3 Heat Pipes | Aluminum Base |
Fan Speed | 800~1700 RPM ± 10% | 800~1800 RPM ± 10% | 800~2200 RPM ± 10% | 800~2500 RPM ± 10% |
Fan Noise | 30.8 dB(A) (Max) | 36 dB(A) (Max) | 27.07 dB(A) (Max) | 29.6 dB(A) (Max) |
Fan AirFlow | 21-52 CFM | 80 CFM ± 5% | 38.09 CFM | 29.3 CFM |
PWM | ? | ? | ? | ? |
Addressable RGB | ? | ? | ? | ? |
5 Heat Pipes Direct Touch
6mm pure copper internal capillary structure increases more surface area, and the heat pipe utilizes evaporative cooling to make the temperature difference between the two ends of the heatpipes, so that the heat is rapidly conducted and dramatically improves the heat dissipation efficiency.
FDB Bearing Effectively Reduces Friction
Make the fan run more smoothly, extend the life span. Efficiently cools your CPU to prevent overheating, ensuring smooth and quiet operation for your computer.
Infinite Lighting Possibilities
The addressable LED fan can sync with your motherboard via 5v 3-pin port, provides infinite lighting configuration as your wish.
Easy Installation
Compatibility
AMD Socket: AM5/AM4 & Intel Socket: LGA 1851/1700/1200/115X
Dimension
Overall Size: 128 x 148 x 75 mm
Fan Dimension: 120 x 120 x 25 mm
120mm FBD & PWM Fan
4-Pin PWM control allows for dynamic speed adjustment between 800-1700±10% RPM,min noise or max airflow.
Tailored for RAM
You can adjust the height of fan up and down according to your RAM, it will not affect the performance of cooler.
AMD Motherboard Install
Install bracket with the right dierction and keep the original backplate of motherboard
Compare with similar products
V5 | V5E | V3 | Eclipse |
|---|---|---|---|
| Customer Reviews | |||
| — | — | — | — |
| Price | |||
| — | — | — | — |
| AMD CPU Socket | |||
| AM5/AM4 | AM5/AM4 | AM5/AM4 | - |
| Intel CPU Socket | |||
| LGA 1851/1700/1200/115X | LGA 1851/1700/1200/115X | LGA 1851/1700/1200/115X | LGA 1851/1700 |
| Dimensions (LxWxH) | |||
| 128 x 75 x 148 mm | 120 x 73 x 155 mm | 92 x 96 x 133 mm | 100 x 72 x 100 mm |
| Heatsink/Radiator | |||
| 5 Heatpipes | 5 Heatpipes | 3 Heat Pipes | Aluminum Base |
| Fan Speed | |||
| 800~1700 RPM ± 10% | 800~1800 RPM ± 10% | 800~2200 RPM ± 10% | 800~2500 RPM ± 10% |
| Fan Noise | |||
| 30.8 dB(A) (Max) | 36 dB(A) (Max) | 27.07 dB(A) (Max) | 29.6 dB(A) (Max) |
| Fan AirFlow | |||
| 21-52 CFM | 80 CFM ± 5% | 38.09 CFM | 29.3 CFM |
| PWM | |||
| ? | ? | ? | ? |
| Addressable RGB | |||
| ? | ? | ? | ? |
