RAM Clearance

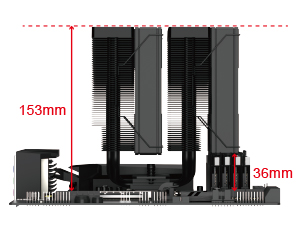

Standard Insatllation
RAM Clearance: 36mm in standard installation.

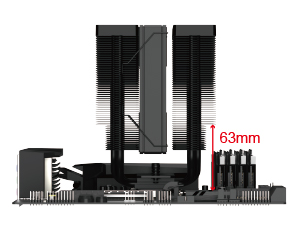

Single Fan Mode
RAM Clearance: 63mm in single fan mode. (Front fan removed)

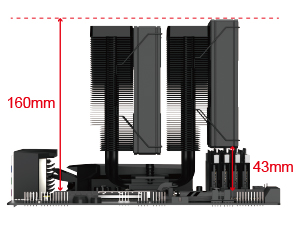

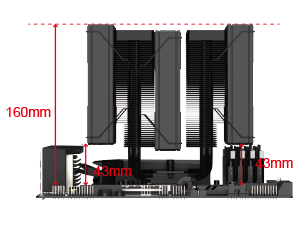

Move the Front Fan Upwards
RAM clearance: 43mm Max. (Move the front fan up to the cooler total height of 160mm)
3 Fan Mode
RAM clearance: 43mm Max.
I/O clearance: 43mm Max.
What is the memory compatibility like?
RAM clearance: 36mm (In standard installation)
RAM clearance: 63mm (In single fan mode - Front fan removed)
RAM clearance: 43mm Max. (Move front fan up)
Does it work with the latest CPU socket?
Yes, it is compatible with Intel lga1700, 1851, 1200, 115X and AMD AMD5, AM4.
Does the FROZN A620 BLACK fit in my case?
The FROZN A620 BLACK, standing at a height of 154mm, is compatible with most ATX/M-ATX cases. However, it's strongly recommended to check the CPU cooler height limit of your PC case before making a purchase.
Can I buy more same fans separately to make a complete PC build?
Yes, please search "ID-COOLING AF-125-K" on to place the order.
Specifications
Comparison with Similar Coolers
 FROZN A620 BLACK |  FROZN A620 ARGB |  FROZN A620 ARGB WHITE |  FROZN A720 BLACK | |
|---|---|---|---|---|
Customer Reviews | — | — | — | — |
Price | — | — | — | — |
TDP | 270W | 270W | 270W | 300W |
Overall Dimension | 120×140×154mm (L×W×H) | 120×142×154mm (L×W×H) | 120×142×154mm (L×W×H) | 140×153×163mm (L×W×H) |
Heatpipe | 6×?6mm Heatpipe | 6×?6mm Heatpipe | 6×?6mm Heatpipe | 7×?6mm Heatpipe |
Material | Copper Base + Aluminum Fin | Copper Base + Aluminum Fin | Copper Base + Aluminum Fin | Copper Base + Aluminum Fin |
Weight | 1190g | 1200g | 1200g | 1300g |
Fan Dimension | 120×120×25mm (2pcs) | 120×120×27mm (2pcs) | 120×120×27mm (2pcs) | 140×140×25mm (2pcs) |
Fan Speed | 500±200 ~ 2000±10% RPM | 500±200 ~ 2000±10% RPM | 500±200 ~ 2000±10% RPM | 500±200 ~ 2000±10% RPM |
Max. Air Flow | 78.25CFM | 78CFM | 78CFM | 98.6CFM |
Max. Static Pressure | 2.68mmH2O | 2.68mmH2O | 2.68mmH2O | 2.26mmH2O |
Noise | 29.85dB(A) Max. | 29.9dB(A) Max. | 29.9dB(A) Max. | 33.5dB(A) Max. |
Bearing Type | FDB | FDB | FDB | FDB |
Connector | 4Pin PWM | 3 and 4 Pin combo | 3 and 4 Pin combo | 4Pin PWM |
aplus content video
RAM Clearance
Standard Insatllation
RAM Clearance: 36mm in standard installation.
Single Fan Mode
RAM Clearance: 63mm in single fan mode. (Front fan removed)
Move the Front Fan Upwards
RAM clearance: 43mm Max. (Move the front fan up to the cooler total height of 160mm)
3 Fan Mode
RAM clearance: 43mm Max.
I/O clearance: 43mm Max.
What is the memory compatibility like?
RAM clearance: 36mm (In standard installation)
RAM clearance: 63mm (In single fan mode - Front fan removed)
RAM clearance: 43mm Max. (Move front fan up)
Does it work with the latest CPU socket?
Yes, it is compatible with Intel lga1700, 1851, 1200, 115X and AMD AMD5, AM4.
Does the FROZN A620 BLACK fit in my case?
The FROZN A620 BLACK, standing at a height of 154mm, is compatible with most ATX/M-ATX cases. However, it's strongly recommended to check the CPU cooler height limit of your PC case before making a purchase.
Can I buy more same fans separately to make a complete PC build?
Yes, please search "ID-COOLING AF-125-K" on to place the order.
Specifications
| Compatibility | Intel LGA1851/1700/1200/1151/1150/1155/1156;AMD AM5/AM4 |
|---|---|
| TDP | 270W |

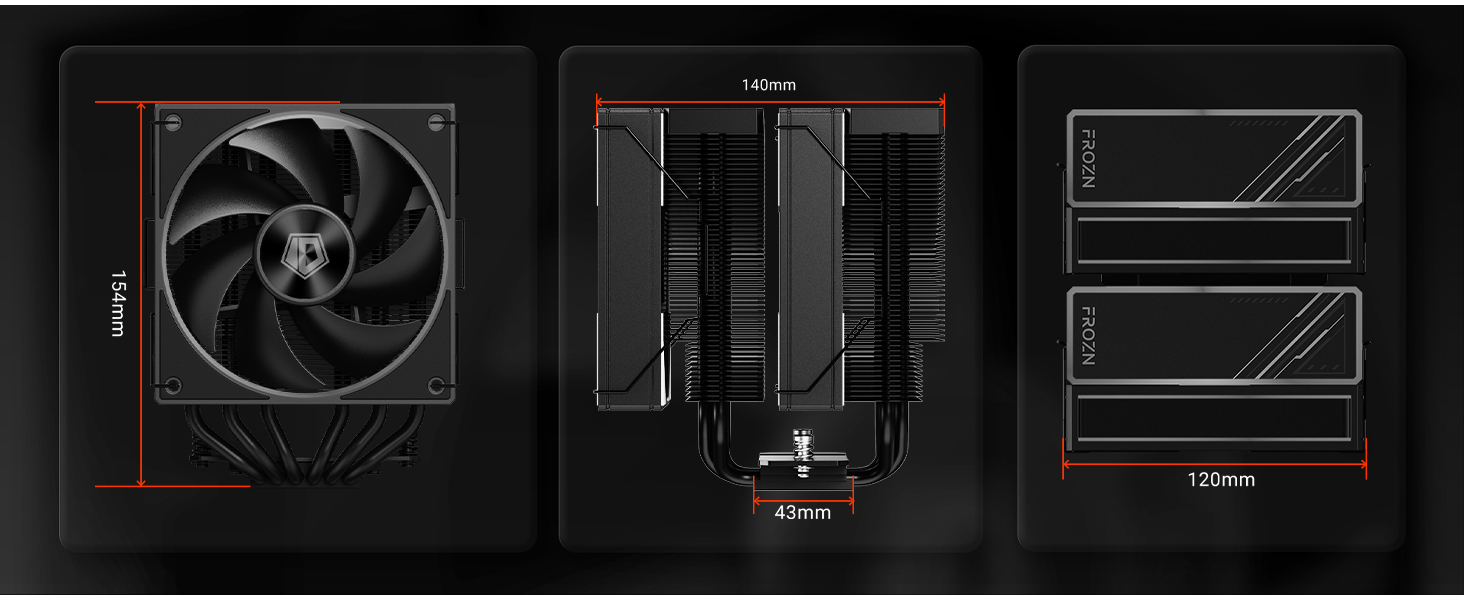

| Overall Dimension | 120×140×154mm (L×W×H) |

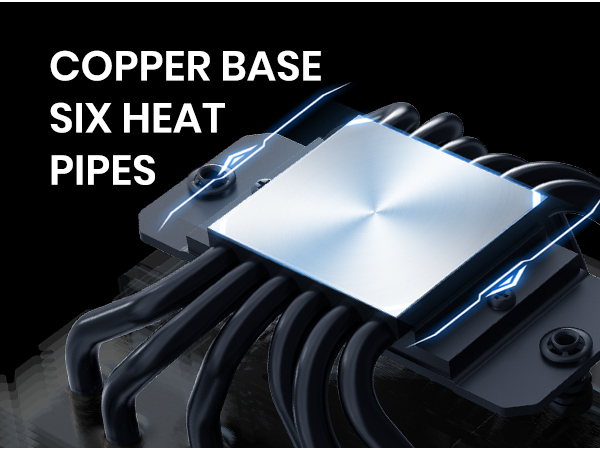

| Heatsink Material | 6×?6mm Heatpipe + Copper Base + Aluminum Fin |
| Weight | 1190g |
| Fan Dimension | 120×120×25mm (2pcs) |

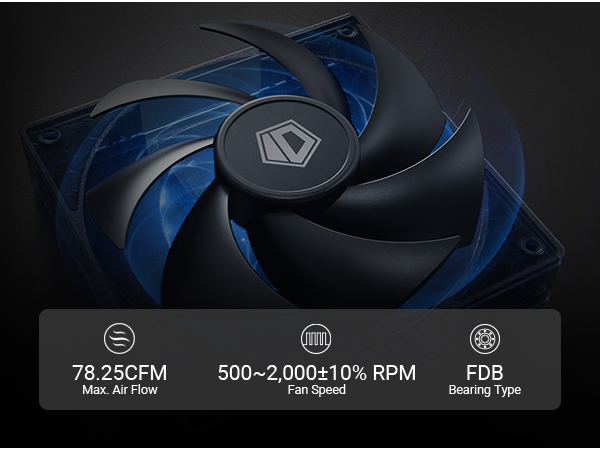

| Fan Speed | 500±200 ~ 2000±10% RPM |
| Max. Air Flow | 78.25CFM |
| Max. Static Pressure | 2.68mmH2O |
| Noise | 29.85dB(A) Max. |
| Bearing Type | FDB |
| Connector | 4Pin PWM |
Comparison with Similar Coolers
FROZN A620 BLACK | FROZN A620 ARGB | FROZN A620 ARGB WHITE | FROZN A720 BLACK |
|---|---|---|---|
| Customer Reviews | |||
| — | — | — | — |
| Price | |||
| — | — | — | — |
| TDP | |||
| 270W | 270W | 270W | 300W |
| Overall Dimension | |||
| 120×140×154mm (L×W×H) | 120×142×154mm (L×W×H) | 120×142×154mm (L×W×H) | 140×153×163mm (L×W×H) |
| Heatpipe | |||
| 6×?6mm Heatpipe | 6×?6mm Heatpipe | 6×?6mm Heatpipe | 7×?6mm Heatpipe |
| Material | |||
| Copper Base + Aluminum Fin | Copper Base + Aluminum Fin | Copper Base + Aluminum Fin | Copper Base + Aluminum Fin |
| Weight | |||
| 1190g | 1200g | 1200g | 1300g |
| Fan Dimension | |||
| 120×120×25mm (2pcs) | 120×120×27mm (2pcs) | 120×120×27mm (2pcs) | 140×140×25mm (2pcs) |
| Fan Speed | |||
| 500±200 ~ 2000±10% RPM | 500±200 ~ 2000±10% RPM | 500±200 ~ 2000±10% RPM | 500±200 ~ 2000±10% RPM |
| Max. Air Flow | |||
| 78.25CFM | 78CFM | 78CFM | 98.6CFM |
| Max. Static Pressure | |||
| 2.68mmH2O | 2.68mmH2O | 2.68mmH2O | 2.26mmH2O |
| Noise | |||
| 29.85dB(A) Max. | 29.9dB(A) Max. | 29.9dB(A) Max. | 33.5dB(A) Max. |
| Bearing Type | |||
| FDB | FDB | FDB | FDB |
| Connector | |||
| 4Pin PWM | 3 and 4 Pin combo | 3 and 4 Pin combo | 4Pin PWM |
