Powerful and particularly quiet

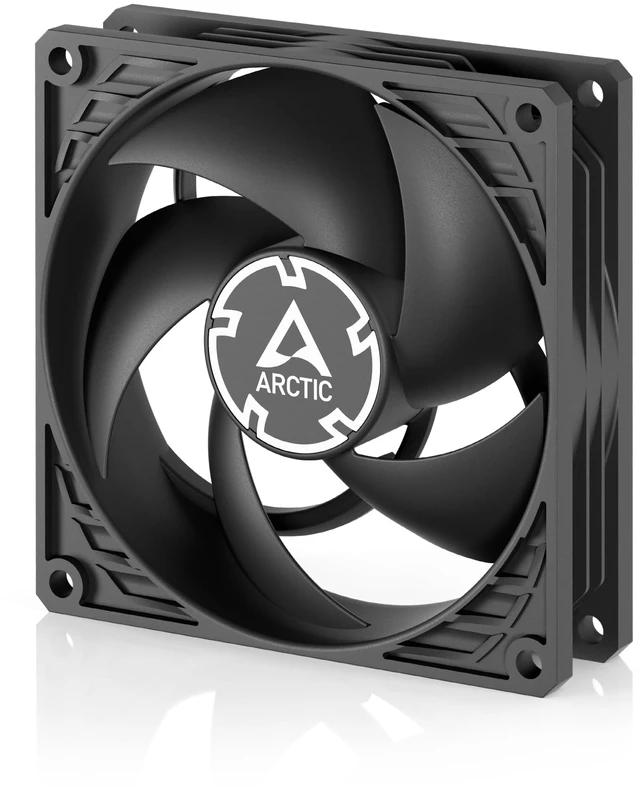

The P9 Silent is a powerful and particularly quiet 92 mm fan with a speed of 1900 rpm. It delivers a static pressure of 1.32 mmH2O, generates an airflow of 23.96 cfm and is extremely efficient with a consumption of just 0.08 A. The fan speed can be regulated via the voltage, which allows for individual adjustment.

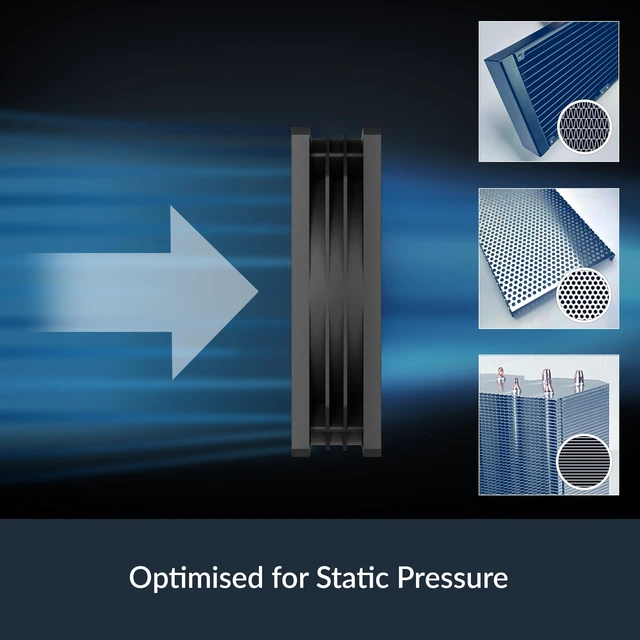

Optimized for high static pressure
The P9 Silent delivers a focused airflow and ensures high airflow even with particularly high air resistance. This makes the P9 Silent particularly suitable for use on heat sinks, radiators, perforated panels and filters.

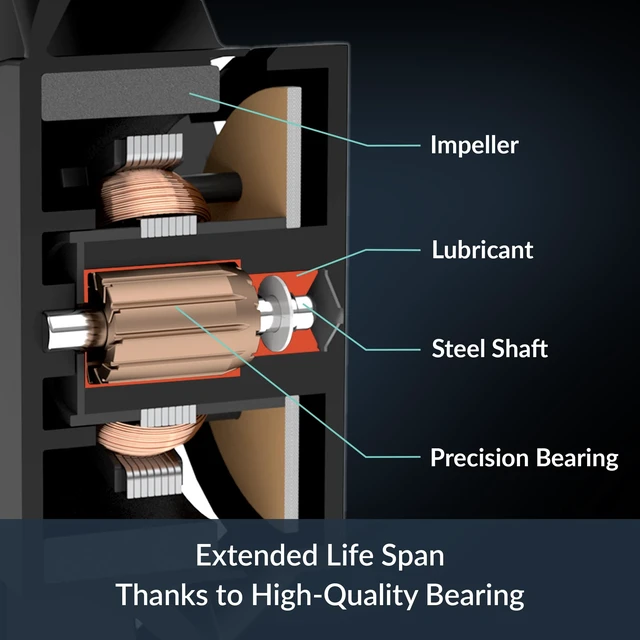

Fluid Dynamic Bearing
The P9 Silent is equipped with ARCTIC's proven Fluid Dynamic Bearing, which enables particularly quiet operation at any speed. ARCTIC makes no compromises on durability and offers a 6-year promise.
Virtually silent motor
The motor is the main source of unwanted noise, especially at low fan speeds. The motor used has very low friction and vibration, allowing for virtually silent operation while increasing the longevity of the motor.
Size & Weight
- Length: 92 mm
- Width: 92 mm
- Height: 25 mm
- Weight: 101 g
Technical data

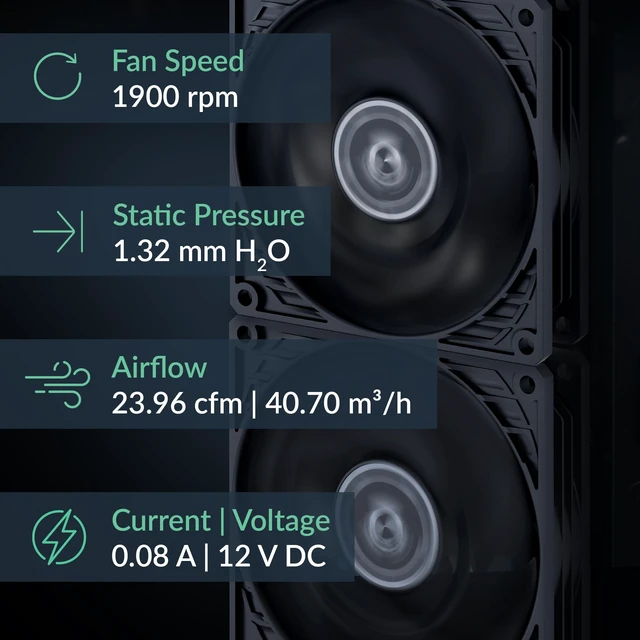

Fan specifications
Speed: 1900 rpm
Airflow: 23.96 cfm | 40.70 m³/h
Static pressure: 1.32 mmH2O
Fan bearing: Hydrodynamic sleeve bearing
Typical voltage: 12 V DC
Start-up voltage: 5 V DC
Current: 0.08 A
Cable length: 400 mm
Connector: 3-pin fan connector
Operating ambient temperature: 0–40 °C
 ARCTIC P9 Silent |  ARCTIC P9 PWM PST |  ARCTIC P9 Max | ARCTIC P9 PWM PST CO | |
|---|---|---|---|---|
| Customer Reviews | — | — | — | — |
| Price | — | — | — | — |
| Fan Speed | 1900 rpm | 200–3000 rpm (PWM controlled), 0 rpm below 5 % PWM | 450–4300 rpm (PWM controlled), 0 rpm below 5 % PWM | 200–3000 rpm (PWM controlled), 0 rpm below 5 % PWM |
| Airflow | 23.96 cfm | 40.70 m³/h | 38.83 cfm | 65.97 m³/h | 58.25 cfm | 98.97 m³/h | 38.83 cfm | 65.97 m³/h |
| Static Pressure | 1.32 mmH2O | 3.12 mmH2O | 6.17 mmH2O | 3.12 mmH2O |
| Fan Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Dual Ball Bearing |
| Voltage | 12 V DC | 12 V DC | 12 V DC | 12 V DC |
| Current | 0.08 A | 0.12 A | 0.34 A | 0.12 A |
| Cable Length | 400 mm | 400 mm + 80 mm Daisy-Chain Cable | 400 mm | 400 mm + 80 mm Daisy-Chain Cable |
| Connector | 3-Pin Fan Plug | 4-Pin Fan Plug + 4-Pin Socket | 4-Pin Fan Plug | 4-Pin Fan Plug + 4-Pin Socket |
