Powerful and energy efficient

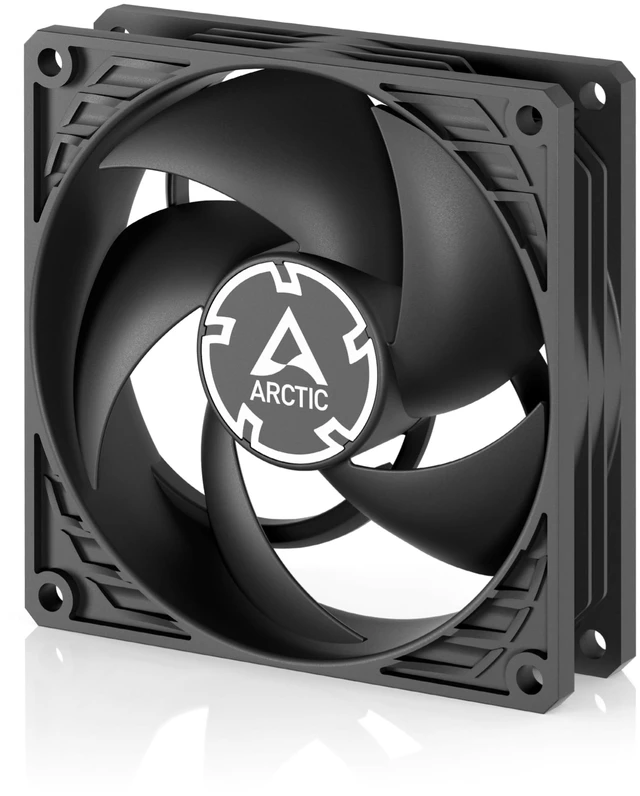

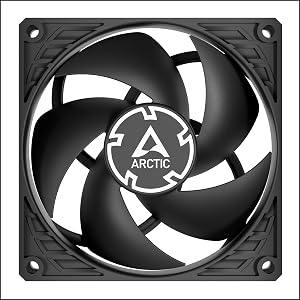

The P9 PWM PST is a powerful 92 mm fan with a speed of 200 to 3000 rpm. It delivers a static pressure of 3.12 mmH2O and generates an airflow of 38.83 cfm. Thanks to pulse width modulation (PWM), it enables precise control of the fan speed and is extremely energy efficient with a consumption of just 0.12 A. It also has a 0 dB mode that ensures silent operation when idle.

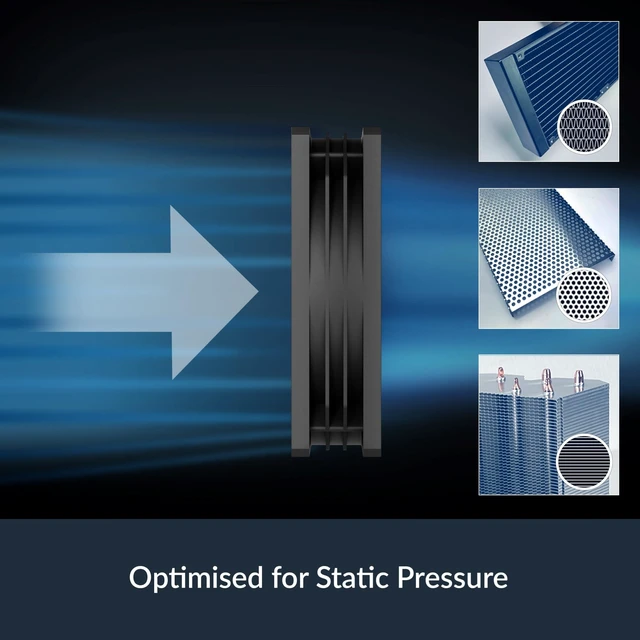

Optimized for high static pressure
The P9 PWM PST delivers a focused airflow and ensures high airflow even with particularly high air resistance. This makes the fan ideal for use on heat sinks, radiators, perforated panels and filters.

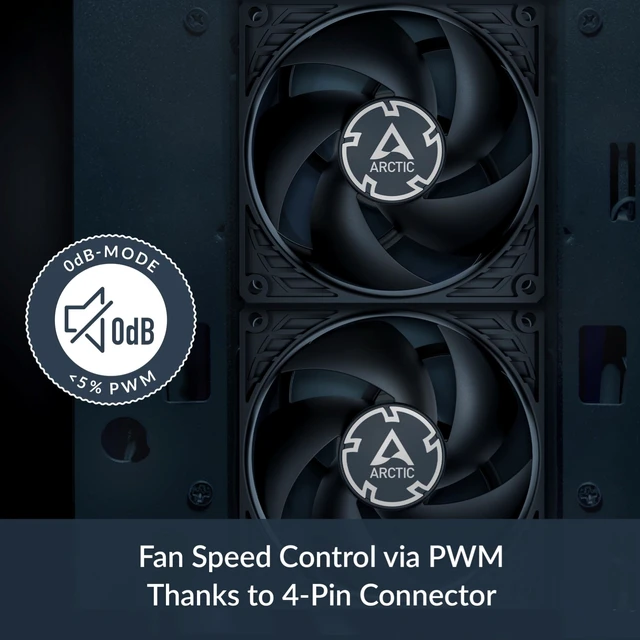

0 dB Mode - Zero rpm
The fan can be throttled down to a standstill via PWM, allowing silent operation when idle while ensuring maximum performance when needed. This means the P9 PWM PST offers extremely flexible speed adjustment to optimally regulate the airflow in any case.

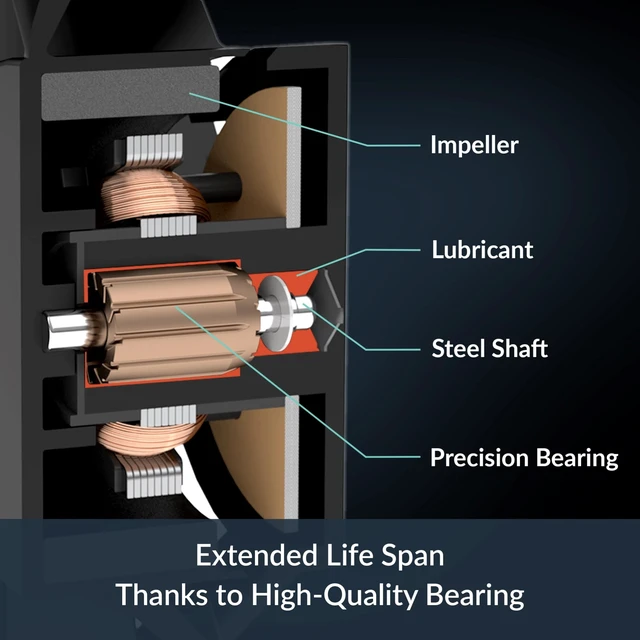

Fluid Dynamic Bearing
The P9 PWM PST is equipped with ARCTIC's proven Fluid Dynamic Bearing, which enables particularly quiet operation. ARCTIC makes no compromises on durability and offers a 6-year promise.

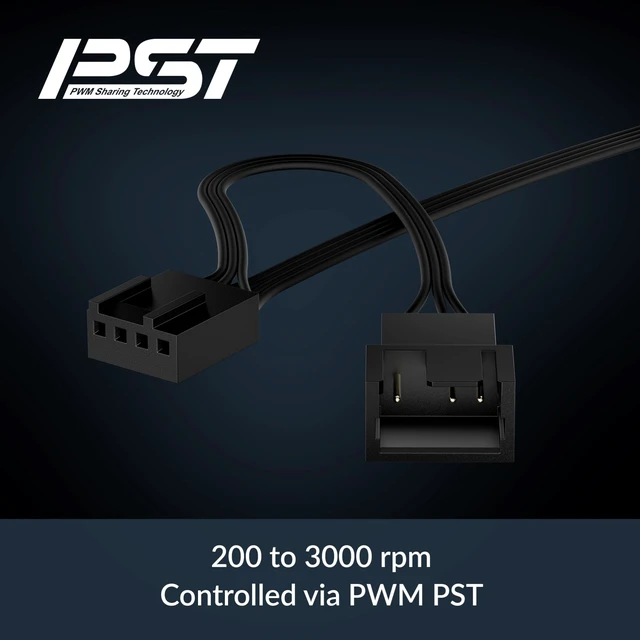

200 to 3000 rpm controlled via PWM PST

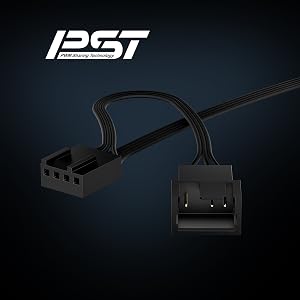

ARCTIC's PST fans (PWM Sharing Technology) are already equipped with a Y-cable splitter to connect up to four additional PST fans in series. This allows the fan speed of the P9 PWM PST and the other fans to be controlled via a single connection.
Size & Weight
- Length: 92 mm
- Width: 92 mm
- Height: 25 mm
- Weight: 106 g
Technical Specifications
Fan Specifications
Speed: 200-3000 rpm (PWM controlled), 0 rpm below 5% PWM
Airflow: 38.83 cfm | 65.97 m³/h
Static Pressure: 3.12 mmH2O
Fan Bearing: Hydrodynamic sleeve bearing
Typical Voltage: 12 V DC
Start-up Voltage: 5 V DC
Current: 0.12 A
Cable Length: 400 mm + 80 mm daisy chain cable
Connector: 4-pin fan male + 4-pin female
Operating Ambient Temperature: 0-40 °C

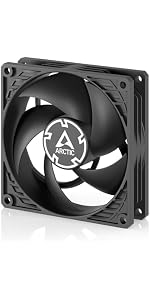

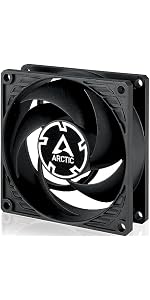

 ARCTIC P9 PWM PST | ARCTIC P9 PWM PST CO |  ARCTIC P9 Max | ARCTIC P9 Silent | |
|---|---|---|---|---|
| Customer Reviews | — | — | — | — |
| Price | — | — | — | — |
| Fan Speed | 200–3000 rpm (PWM controlled), 0 rpm below 5 % PWM | 200–3000 rpm (PWM controlled), 0 rpm below 5 % PWM | 450–4300 rpm (PWM controlled), 0 rpm below 5 % PWM | 1900 rpm |
| Airflow | 38.83 cfm | 65.97 m³/h | 38.83 cfm | 65.97 m³/h | 58.25 cfm | 98.97 m³/h | 23.96 cfm | 40.70 m³/h |
| Static Pressure | 3.12 mmH2O | 3.12 mmH2O | 6.17 mmH2O | 1.32 mmH2O |
| Fan Bearing | Fluid Dynamic Bearing | Dual Ball Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing |
| Voltage | 12 V DC | 12 V DC | 12 V DC | 12 V DC |
| Current | 0.12 A | 0.12 A | 0.34 A | 0.08 A |
| Cable Length | 400 mm + 80 mm Daisy-Chain Cable | 400 mm + 80 mm Daisy-Chain Cable | 400 mm | 400 mm |
| Connector | 4-Pin Fan Plug + 4-Pin Socket | 4-Pin Fan Plug + 4-Pin Socket | 4-Pin Fan Plug | 3-Pin Fan Plug |
