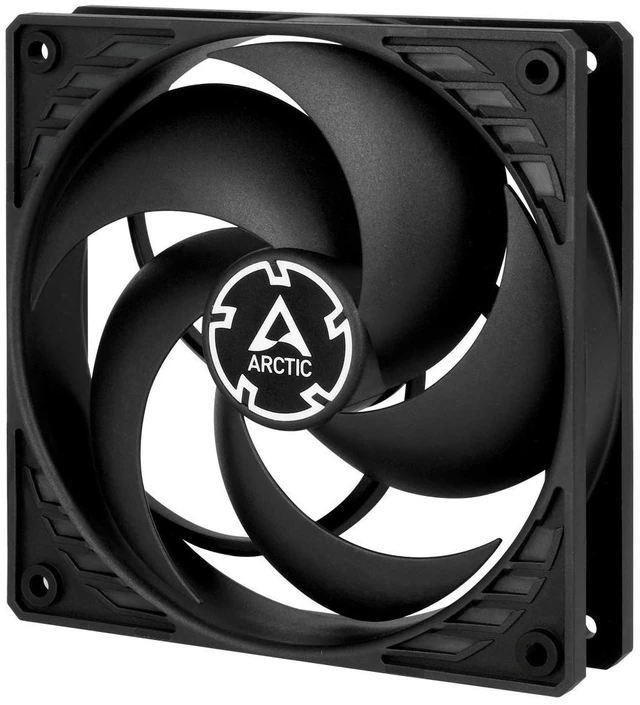

Optimised for Static Pressure
During the development of the new P12 Silent, special emphasis was placed on a focused airstream and thus a high static pressure. The fan assures extremely efficient cooling, even with increased air resistance. Therefore, the P12 Silent is particularly suitable for use on heatsinks and radiators.
Lower Power Consumption
A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature.
High Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
Virtually Silent Motor
At low fan speed, the motor is the main source of unwanted noise. A motor developed in Germany with an enhanced bearing reduces friction and noise and enables almost silent operation.
General data
Performance
Fan Speed: 1050 rpm
Airflow: 24.1 cfm | 41 m³/h
Static Pressure: 0.50 mmH2O
Noise Level: 0.08 Sone
Operating Temperature: 0–40 °C
Fan
Fan Frame: Standard
Control Type: Fixed Speed
Connector: 3-Pin Connector
Fan Bearing: Fluid Dynamic Bearing
Electric Characteristics
Typical Voltage: 12 V DC
Starting Voltage: 4.8 V
Current | Voltage: 0.09 A | 12 V DC
Cable Length: 400 mm

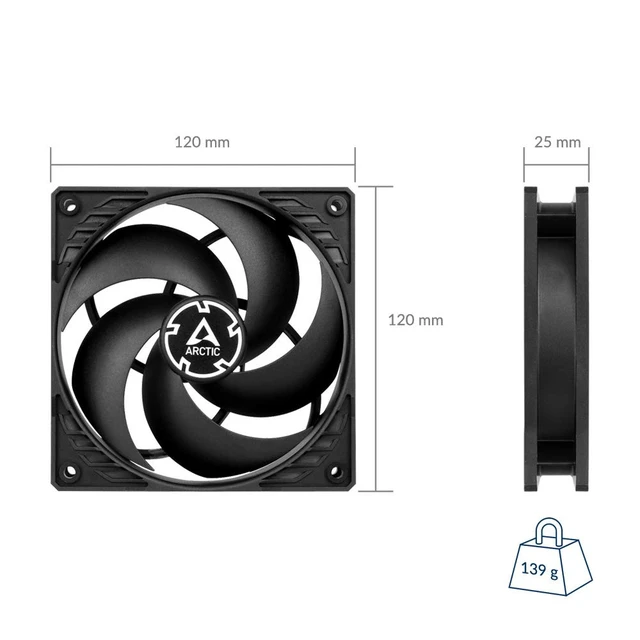

Size & Weight
- Length: 120 mm
- Width: 120 mm
- Height: 25 mm
- Weight: 139 g

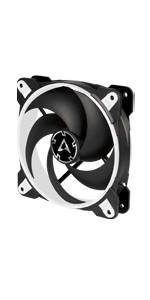

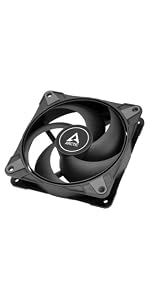

 P12 Silent |  F12 | F12 Silent |  BioniX P120 |  P12 PWM PST A-RGB |  P12 Max | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — no data |
| Size | 120?x?120?x?25 mm | 120?x?120?x?25 mm | 120?x?120?x?25 mm | 120?x?120?x?27 mm | 120?x?120?x?25 mm | 120?x?120?x?25 mm |
| Fan Speed | 1050 rpm | 1350 rpm | 800 rpm | 200–2100 rpm | 200–2000 rpm | 200–3300 rpm |
| Airflow | 24.1 cfm | 41 m³/h | 53 cfm | 90.1 m³/h | 37 cfm | 62.9 m³/h | 67.56 cfm | 114.9 m³/h | 48.8 cfm | 82.91 m³/h | 81.04 cfm | 137.69 m³/h |
| Noise Level | 0.08 Sone | 0.3 Sone | 0.08 Sone | 0.45 Sone | 0.3 Sone | 0.6 Sone |
| Control Type | Fixed Speed | Fixed Speed | Fixed Speed | PWM PST | PWM PST | Pulse Width Modulation - PWM |
| Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Dual Ball Bearing |
| Weight | 139 g | 107 g | 107 g | 140 g | 131 g | 184 g |
| Static Pressure | 0.5 mmH2O | 1.0 mmH2O | 0.3 mmH2O | 2.75 mmH2O | 1.85 mmH2O | 4.35 mmH2O |
