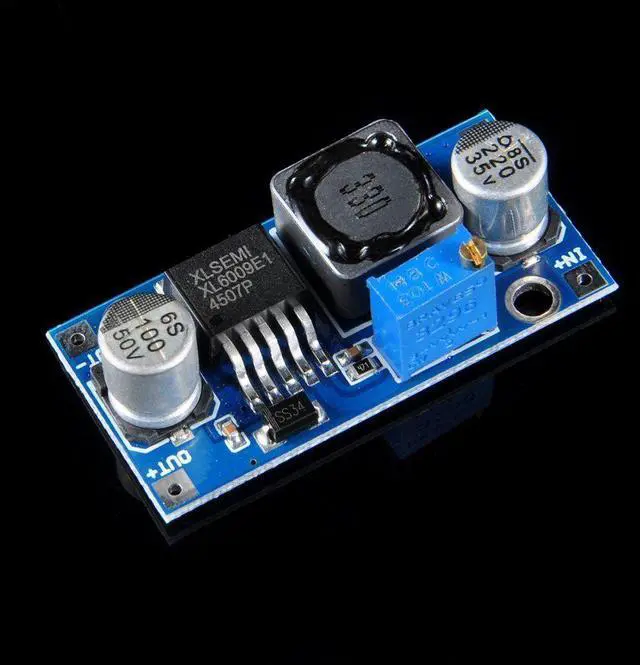

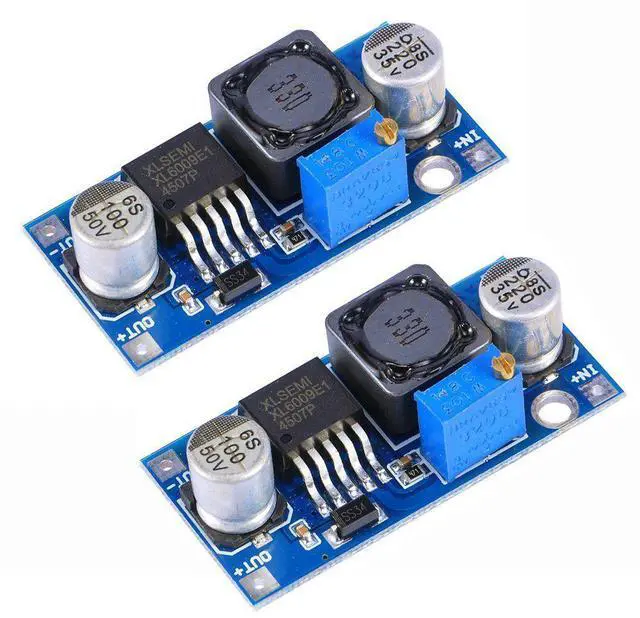

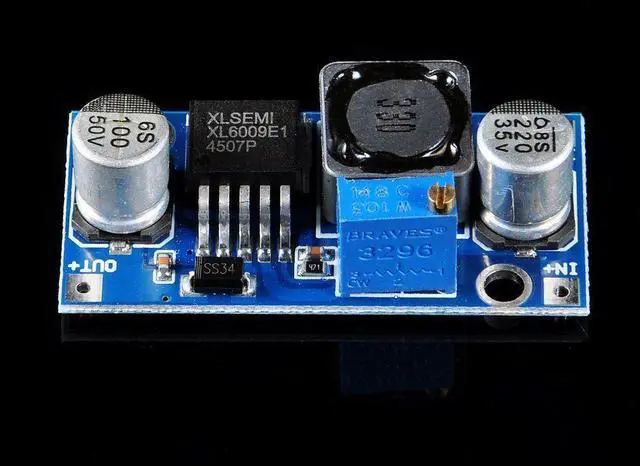

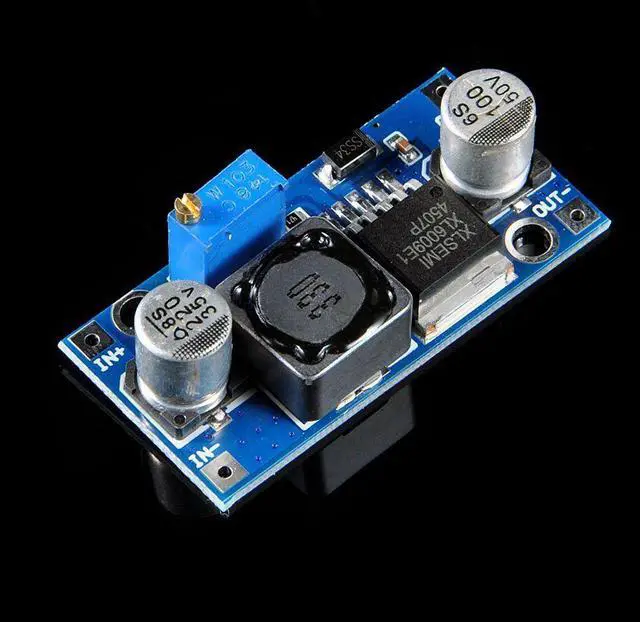

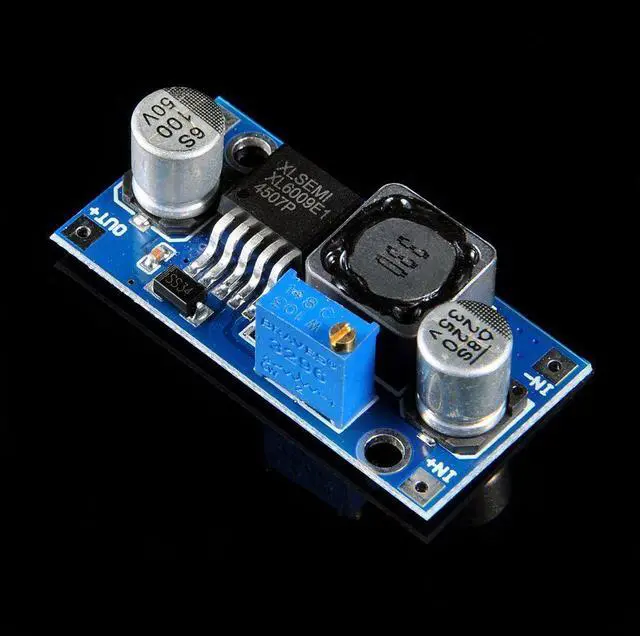

2 pcs Super XL6009 DC-DC Adjustable Step-up Boost Power Converter Module

Rectification: Non-Synchronous Rectification
Input Range? 3V ~ 32V
Output Range? 5V ~ 35V
Input Current: 4A (max), no-load 18mA (5V input, 8V output, no-load is less than 18mA. Higher the voltage, the greater the load current. )
Conversion Efficiency? <94% (greater the pressure, the lower the efficiency)

Description:

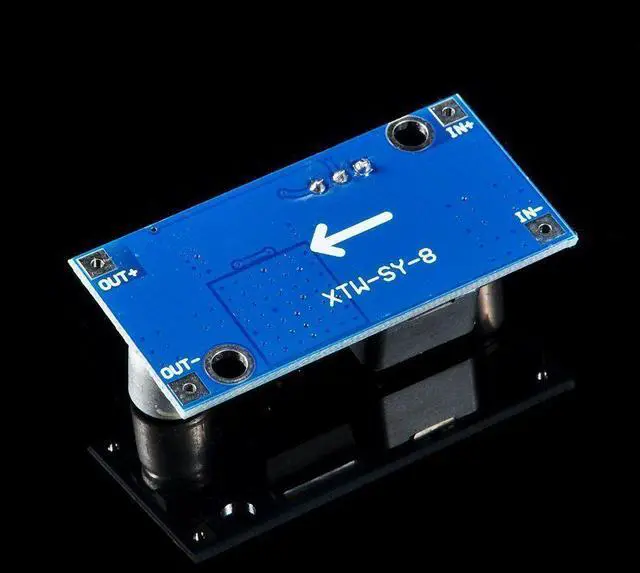

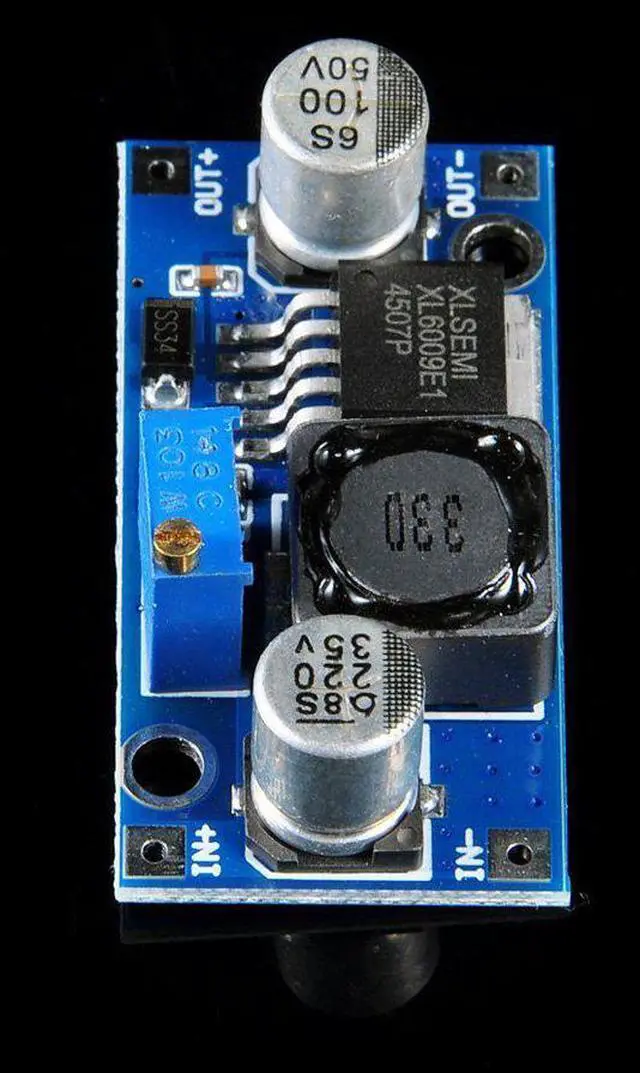

IN-IN + input Positive Input Negative!
Positive output OUT + OUT-output negative
Test comparison sample reference:
Input 3V Output 12V 0.4A 4.8W
Input 5V Output 12V 0.8A 9.6W
Input 7.4V Output 12V 1.5A 18W
Input 12V Output 15V 2A 30W
Input 12V Output 16V 2A 32W
Input 12V Output 18V 1.6A 28.8W
Input 12V Output 19V 1.5A 28.5W
Input 12V Output 24V 1 A 24W
Vin * Iin * Efficiency = Vout * Iout
Vin: Input Voltage
Iin: input current
Vout: Output Voltage
Iout: output current
Model Specification: DSN6009 boost module
Module Properties: Non-isolated boost (BOOST)
Rectification: Non-Synchronous Rectification
Input Range? 3V ~ 32V
Output Range? 5V ~ 35V
Input Current: 4A (max), no-load 18mA (5V input, 8V output, no-load is less than 18mA. Higher the voltage, the greater the load current. )
Conversion Efficiency?
<94% (greater the pressure, the lower the efficiency)
Switching Frequency: 400KHz
Output Ripple: 50mV (the higher the voltage, the greater the current, the greater the ripple)
Load Regulation? ± 0.5 %
Voltage Regulation: ± 0.5 %
Operating Temperature: -40? ~ +85?
Dimensions: 43mm * 21mm * 14mm (L * W * H)
Wide Input Voltage 3V ~ 32V, optimum operating voltage range is 5 ~ 32V;
Wide Output Voltage 5V ~ 35V;
Built-4A efficient MOSFET switch, so that the efficiency up to 94%; (LM2577 current is 3A)
Ultra-high switching frequency 400KHz, you can use a small-capacity filter capacitors that can achieve very good results, the ripple is smaller and smaller. (LM2577 frequency only 50KHz)

Package included:
2 pcs Super XL6009 Boost Module DC-DC Adjustable Power Module
