E-SDS HDMI to RF Coaxial Converter Box with Remote Control,HDMI to Coaxial Analog Signal RF Modulator Support Zoom Function

Cost effective way to display your DVD/Game/Set-top box on regular or older televisions.Long distance signal transmission can be carried out by the coaxial cable.Note:Output picture's quality will be lower to RF signal(analog signal).This converter outputs analog signal,not for ATSC format.
The output TV/RF signal frequency is 61.25MHZ.Please use your TV's search channel function to get the signal,then press "SYS" to adjust the format(PAL OR NTSC) to corresponding to your TV.
With remote control, you can adjust the output screen up and down and amplitude,adjustable brightness, contrast, chroma.
Support TV formats PAL BG/PAL l/PAL DK/NTSC M.Before you buy it,please check your TV supported formats to see if it supports one of this formats.
Support input HDMI resolution :480I/480P/576I/576P/720P /720I /1080I/1080P.This device does NOT work in the reverse direction .

Maybe at some certain occasion you need to change the HDMI signals from DVD/Set-top box Into RF signals. Your PC/DVD/Set-top box with HDMI can play on old TV that without HDMI.You can also demonstrate your multimedia documents from your laptop to your audience through a large screen Typrojector, RF converter can can easily help you to realize the conversion of HDMI signals into RF signals.

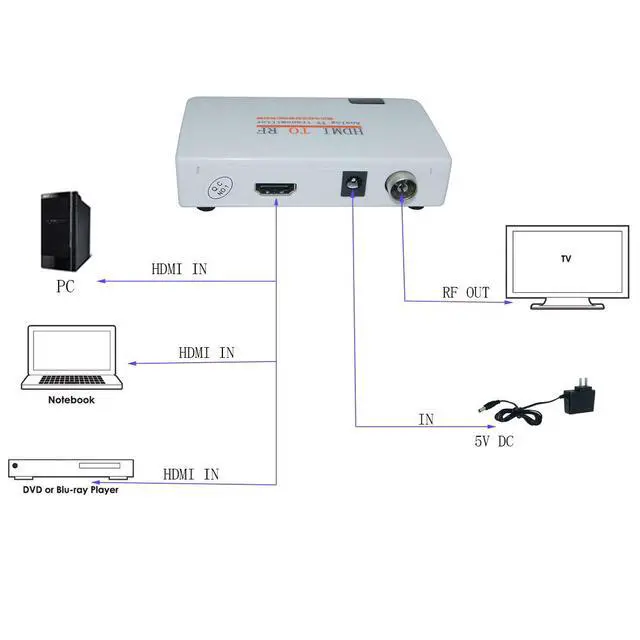

How to use this converter:
1,With the RF cable in package ,to connect RF OUT interface and TV tuner antenna-in ,and connect the power adapter,turn on then red light on; Connect this converter to HDMI source.
2,Searching the TV program can connect the converter signal(color screen);
3, HDMI signal into the state of green light.The TV will display the signal of the computer or other HDMI output devices.lf the TV noise, use our product with the remote control by the “SYS”key to adjust sound system ,if converter's sound system are match with TV,the sound is clear.

Indicator light, power on and HDMI no signal into the state of red light; HDMI signal into the green light.

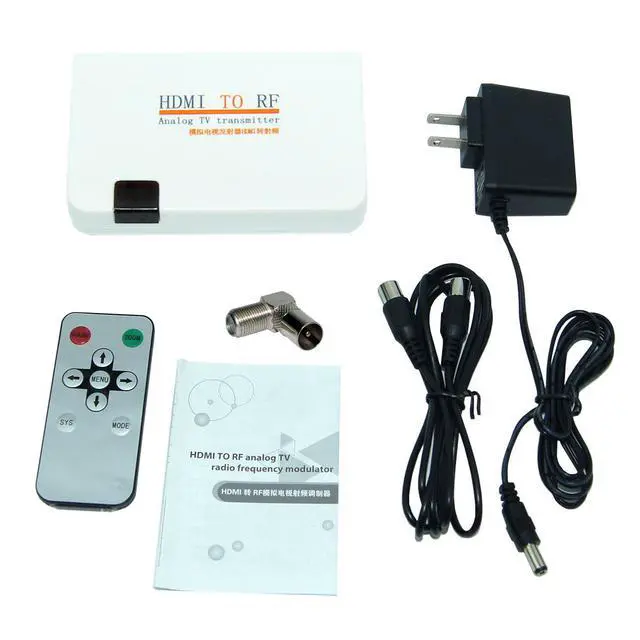

What's in the Package
HDMI TO RF X1
RF CABLE X1
User Manual X1
Power Supply X1
