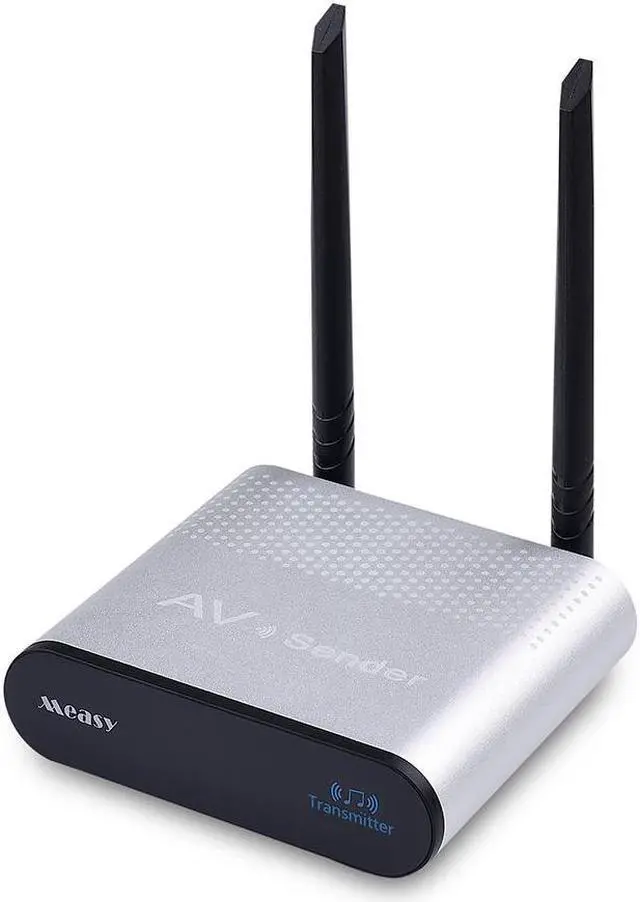

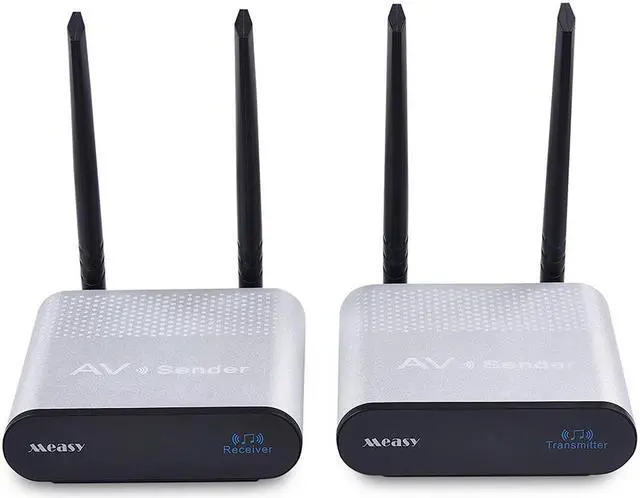

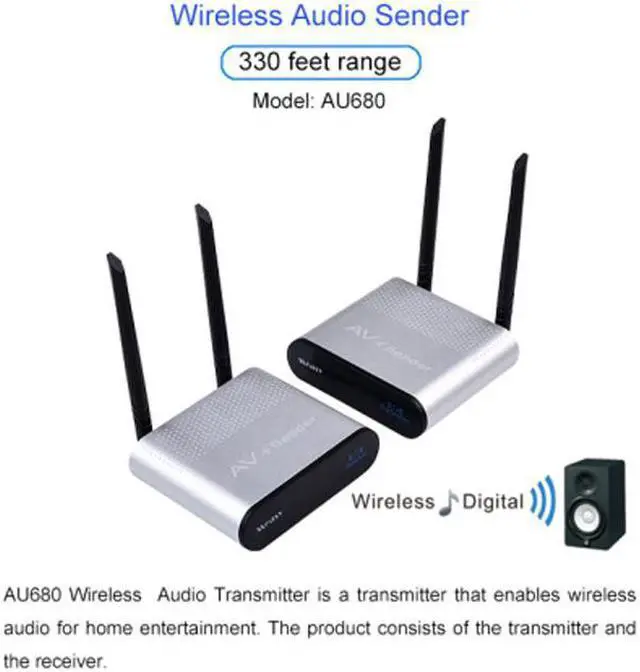

AU680 Wireless Audio Transmitter and Receiver Long Distance Remote Control 100Metres for Home Entertainment

AU680 Wireless Audio Transmitter and Receiver Long Distance Remote Control 100Metres for Home Entertainment Operating Voltage
DC 3.6 - 6V Working Current
Max 120mA (transmitter) / 40mA (receiver) Ambient Temperture-16 to 65C Acutual Operating Frequency Range of the Modual2400-2483MHZ Modulation
GFSK Channel Spacing2M bps Frequency Selection Method
Carrying Channel One-way Loop Selection (transmitter) / Provide Automatic Search and Manual (receiver) Frequency Stability100KHZ The Actual Working Channel of the Modual20CH Module Channel Spacing4MHZ Transceiver Distance: 330 Feet Transmit Power1-100mv Receiving Sensitivity-90dBm Input Level
Max 1.0V pk Input Surface 3.5 Audio Input / RCA Audio Input Output Surface 3.5 Audio Output / RCA Audio Output Stereo Input Level 130mW RL=32 Stereo Input Level 250mW RL=32 Output Impedance1K 0hm Input-output Gain Ratio 1:01 Sphere of Influence20-20000Hz Time Latency 0.5 ms Sampling Rate64KHz 16bit
SNR: 95dB Distortion 0.3 %@1KHz

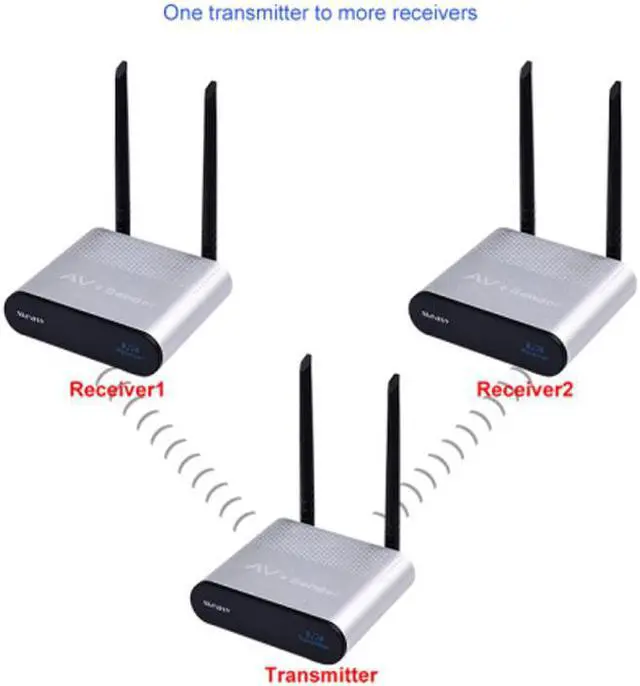

Dynamic Range: 90dB Left and Right Channel Isolation85dB Feature - With digital display, channel switching and power on/off status at a glance. - Support 8 groups of channel selection, effectively avoid wireless signal interference such as wireless routing. - Support 1 transmitter and more than one receivers at the same time, when keeping Transmitter and receiver setting at the same channel. - Unobstructed transmission distance up to 100 meters, support for wall transmission. - Support 433MHz superheterodyne infrared remote control signal wireless backhaul, compatible with 38KHz infrared carrier remote control signal. - Support PAL/ NTSC system and stereo audio transmission.
Package Weight: 450 G / 15.87 Ounces
Package Dimensions (L*W*H): 228*118*63 MM / 8.98 * 4.65 * 2.48
Inches Retail Packaging: Yes, General Box
