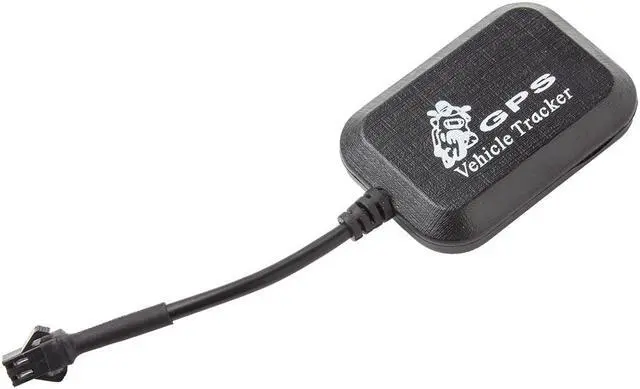

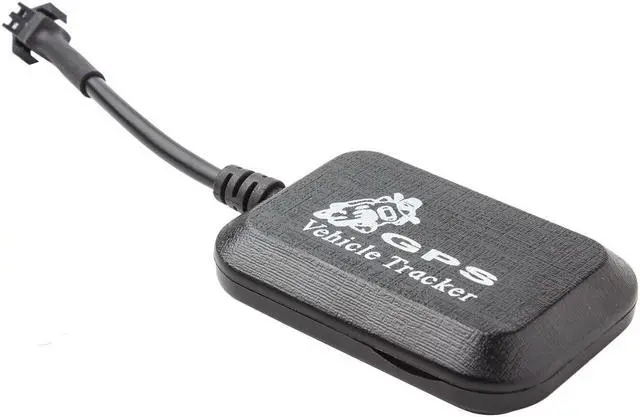

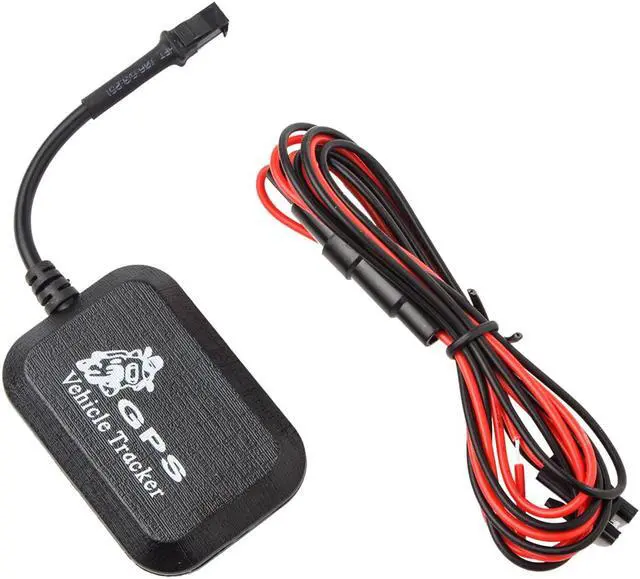

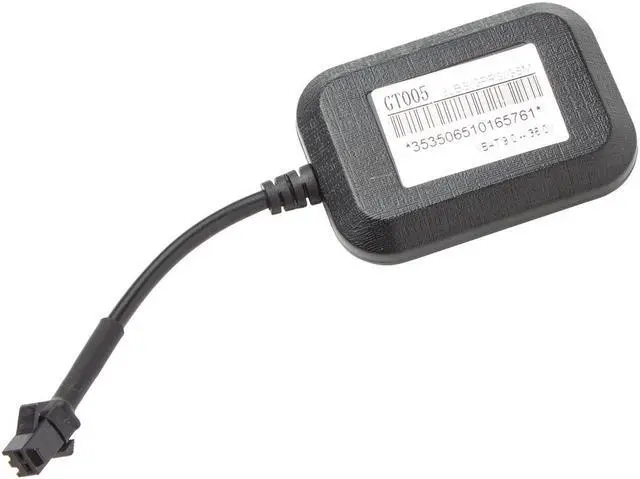

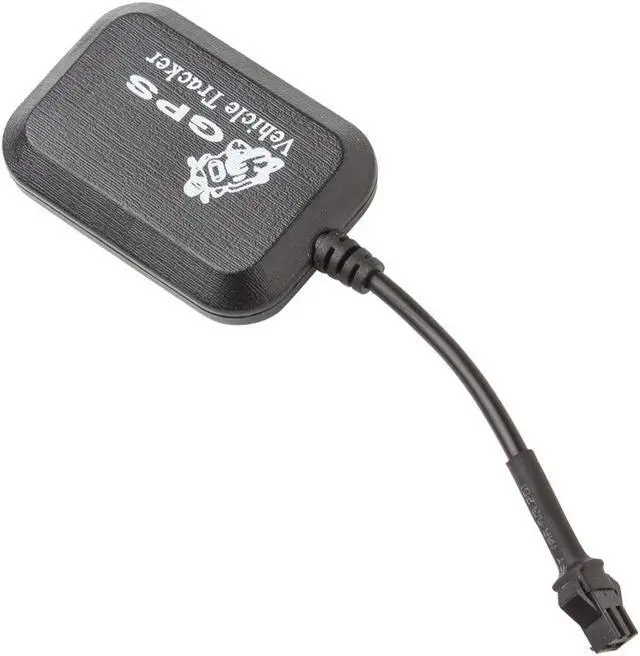

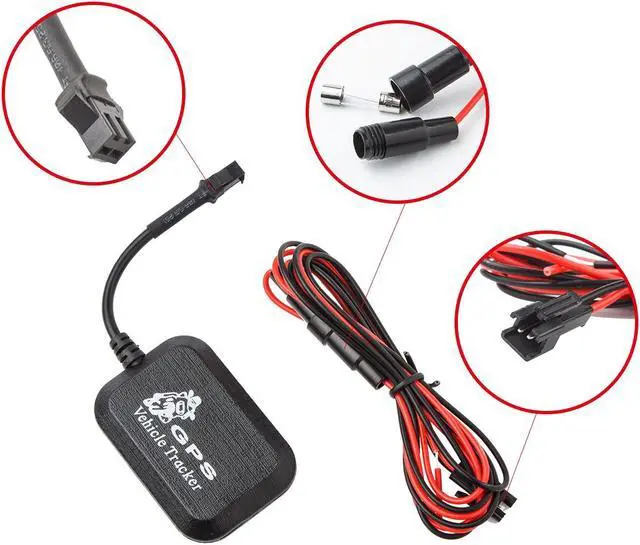

Mini GSM / GPRS GPS Anti-theft SMS Real Time Tracking Tracker For Car Vehicle Motorcycle

Features: - Real-time location tracking, track playback - Built-in GSM antennas - Real-time tracking, burglar and SOS alarm tracker will give you more secure feeling - Support SMS and GPRS platform tracking - Built-in vibration sensor, realizing vehicle vibration alarm Voltage range: DC 9-48V(can also connect 12/24V) GSM bands: 900/1800 MHz or 850/1900MHz GPRS: Class12, TCP/I Standby current: about 0.2mA Color: Black The Terminal Parameter Setting: Power On: The power-on indicator light is on for two minutes and goes out, and the device turns on (the indicator light is inside the case) Set The APN: - Send: APN,apn name, user name, login password# - Such as: Belgium: APN, web, pro.be, mobistar, mobistar# Center Number: - To send a text message CENTER, 000000, number#, each device can set up 9 number, from 1-9 order set phone binding number(equipment initial password for 000000)number is center number. - Such as: CENTER, 000000, 13800138000# SMS For Equipment Position: - Use the main number to send 123 or POSITION# to the device, it will return the device current location information and map link. - Use the main number to send URL# to the device, it will retum the current geographical map link. - Dial-acquisition device device location. - Binding number calls the number will automatically hang up, the device is currently in a reply map link. Change Device Password: - Send SMS: PWD, the equipment initial password(6 digits), device new-password(6digits)# - When set success, it will auto-reply: PWD OK. - When set fail, it will auto-reply: PASSWORD ER. - Such as: PWD, 000000, 666666# - When the device execute this command, device password is changed from 000000 to 666666 - Note: The initial password is 000000 Open Or Close Vibration Alarm: - Send SMS: SF#open vibration alarm. - Send SMS: CF#close vibration alarm. Vibration Alarm Settings: - Send SMS: KC, 1# SMS alarm when triggered. - Send SMS: KC, 2# phone call alarm when triggered. - Send SMS: KC, 3# device send SMS and call center number. Remote Pickup: JT# to send the device will automatically call back the current phone number, after turning into the pinkup state. SOS Alarm: Where the white mmembrane switch 12V power cable through. Remote Power Off The Oil: - Send RELAY, 1# to the device iis powered down. - Send RELAY, 0# to restore the device. Set Down APN: - Send APN, equipment operators password # Reply APN, OK set successfully. - Note: APN no password using this format(APN,carrier#) Package Weight : 51 G / 1.80 OuncesPackage Dimensions (L*W*H) : 110*70*40 MM / 4.33*2.76*1.57 InchesRetail Packaging: Yes, Colored Box
