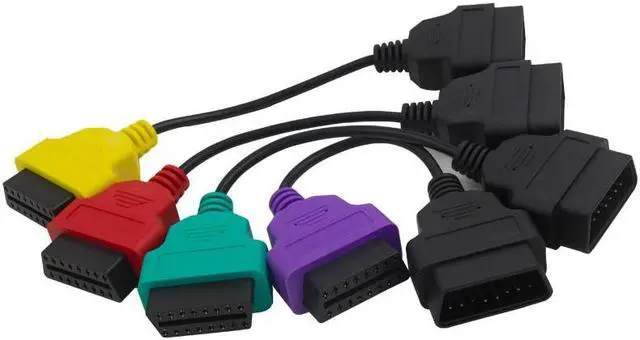

Scan Adapter OBD2 Connector Diagnostic Cable For Fiat ECU MultiECUScan FiatECU Fiat Alfa Romeo Lancia

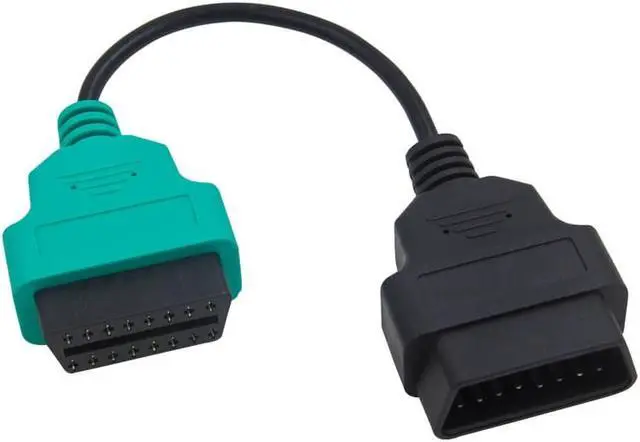

Green ABS / Power Sreeing adapter lead ( "Adapter 1" on MultiECUScan website)-Designed to allow access to the ABS and Power Steering systems on supported vehicles. This adapter has a green connector on one end for easy identification.Using this adapter, Pin 7 on the diagnostic tool is connected to Pins 1,7,9 & 12 on the car.Red Airbag adapter lead ( "Adapter 2" on MultiECUScan website)-Designed to allow access to the Airbag system on supported vehicles.This adapter has a red connector on one end for easy identification.Using this adapter, Pin 7 on the diagnostic tool is connected to pin 3 only pn the car.Yellow CAN adapter lead ( "Adapter 3" on MultiECUScan website)-Designed to allow access to the low-speed CAN system on supported vehicles.This adapter has a yellow connector on one end for easy identification.Using this adapter, Pin 6 & 14 on the diagnostic tool are connected to pins 1 & 9Respectively on the car, Pin 7 on the diagnostic tool is connected to pin 12 on the car.Purple Electric hood adapter lead ( "Adapter 4" on MultiECUScan website)-Designed to allow access to the electric hood system on supported vehicles.This adapter has a purple connector on the end for easy identification.Using this adapter, Pin 7 on the diagnostic tool is connected to pins 7,8,11 & 13 one the car. Cable length: 22cmNote: There are only used as a connecte cable and does not contain any software or diagnostic cablesThere are 4 adaptor cables included which perform different functions.
