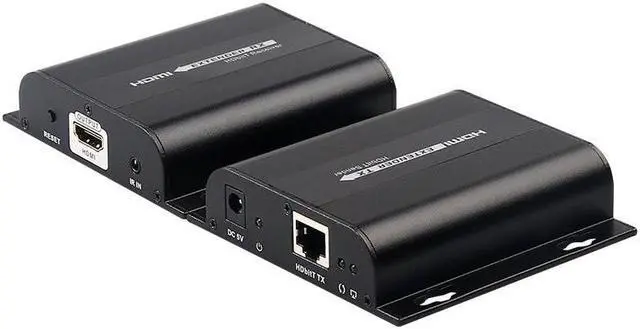

LKV383 HDMI HDbitT Extender IR Over Over RJ45 Cat5e/C Up to 120M Supports 1 Hdmi Transmitter To Many Hdmi Receivers

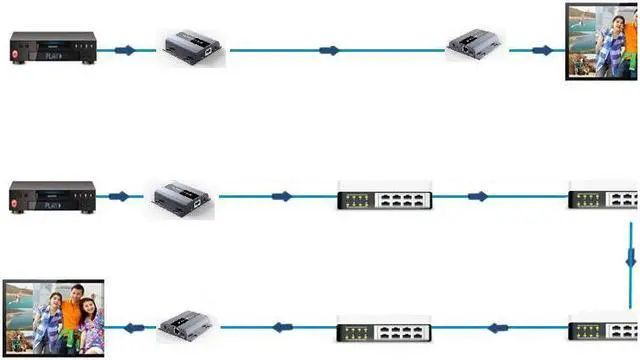

Connectable HDMI Receiver: Max. 253Transport Protocol: HDbitTBandwidth: 18MbpsSupport Resolutions:480i@60Hz, 480p@60Hz576i@50Hz, 576p@50Hz720p@50/60Hz1080i@50/60Hz, 1080p@50/60HzTransmission Length:CAT5:up 80m(high quality)CAT5E: up to 100m(high quality)CAT6: up to 120m(high quality) IR Signal: Supports 20-60KHz IR devicesWorking Temperature: 0-60 Degree CPower Supply: DC 5V 1APower Consumption: TX 3.5W,RX 3WInstallation Requirements:HDMI Source device, computer graphics card, DVD, for PS3, HD monitoring equipments and etc.HDMI display like SDTV, HDTB, Projector with HDMI portNetwork Cables, UTP/STP Cat5/5e/6 network cables which following IEEE-568B StandardConnection Type:Point-to-Point Connection: Up to 120m transmission distance over single CAT6Router Connection: By using network router or repeater, realize unlimited extensionOne-to-Many Connection: By using network router/switch, one sender can connect to several receivers, realize extender&splitter function.Gigabit(1000Mbps) is recommended in LAN Transmission.Sender/Receiver Size: 9.4 x 9.7 x 2.4cmWeight: 462g Latest HDbit transmission technology, extends 1080P HDMI Video/Audio up to 120 meters via single network cable.Point-to-Point Connection / Router One-to-Many Connection, One sender to several receivers via Router/Switch without occupying Network FlowSupports IR signal transmission, to control media playback of the signal source at display locationNo Drive Needed, Plug-and-Play, Easy OperationSupports UTP/STP Cat5/5e/6 network cables which following IEEE-568B Standard
