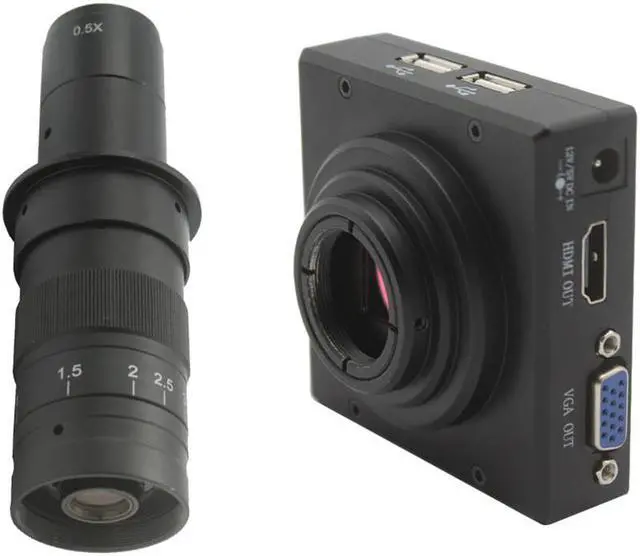

HD 1080P HDMI VGA Outputs Microscope Measure Camera U Disk Storage Picture Video Imaged Recording & 10X-180X C-mount Lens

10X-300X
C-MOUNT Lens: Working
distance: 95mmZoom c-mount Lens 1.0X
C-mount adapterZoom ratios: Objective Magnification Power by 0.7X - 4.5X (about 10X- 300X on the display)Size: 24.5 mm (L) * 50mm (DIA)
Weight: 630g
Menu functions: 1, two USB interface (a USB mouse, then a U disk) 2, the screen (picture) saved to the U disk, you can also browse the U disk in the picture. Red, green, blue, default, Chinese and English, vertical mirror, horizontal mirror, negative, with the screen contrast, automatic white balance, auto white balance, auto white balance, white balance, Line group, vertical line (8), horizontal line (8), line color, line width, and so on

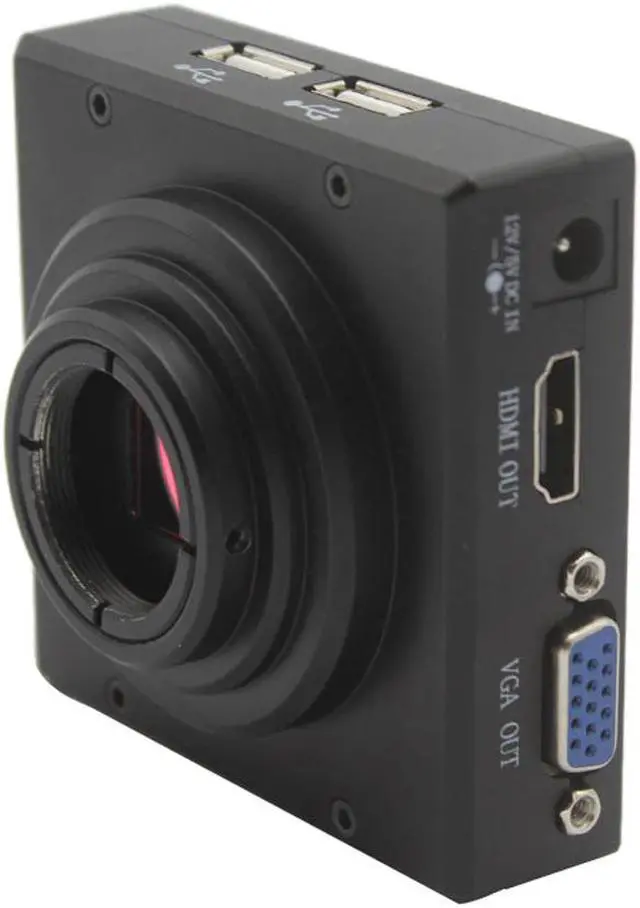

Camera parameters: Sensor
type: 2 million pixels, 1 / 2.5 "CMOS colorEffective pixels: 1920H * 1080VNumber of data bits: 10bitPixel
size: 3.0 m * 3.0 mFrame rate: 30
frames / secSharpness: The maximum definition above 900TV linesScan mode: progressiveShutter
Type: Electronic ShutterDynamic range> 90dBSignal to noise ratio:
55dBSensitivity: 2.0 V / lux-sec (550 nm)
Exposure method: manual / automaticWhite
Balance: Auto /
ManualLens Interface: C /

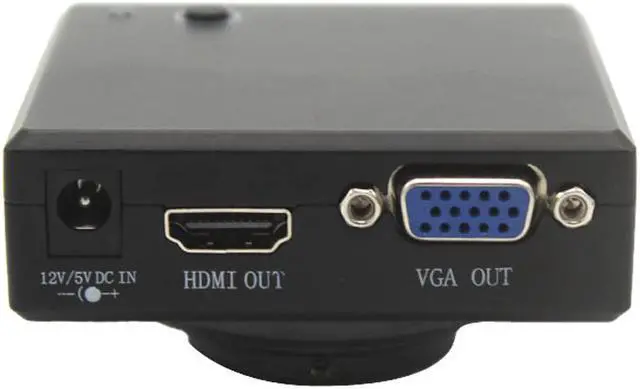

CSVideo interface: standard HDMI interface, VGA

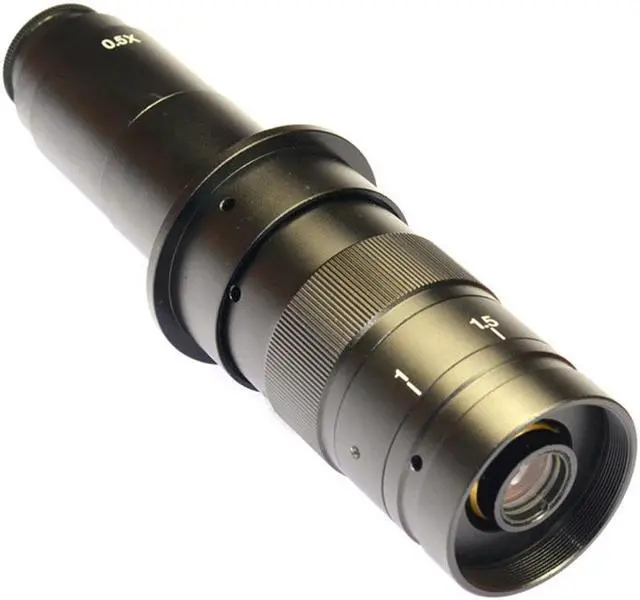

interfaceHDMI output resolution: 1920X1080 60Hz (HDMI default) 10X-180X zoom c-mount
Lens: Working
distance: 95mm 0.5X
C-mount adapterzoom ratios:
6.5: 1Objective Magnification Power by 0.7 - 4.5X (about 10 - 180X on the display)Size: 168mm (L) * 50mm (DIA)
Weight: 510g
