SPECIFICATIONS: HDMI version HDMI 1.4 bHDMI resolution up to 3840*2160/30HzSupport video color format. deep color 8/10/12bitSupport audio format.. DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSDMax bandwidth320MHzMax transmission bandwidth. 3.2G bpsInput cable distance.. (1080p resolution) 15m, (4K resolution) 12m AWG26 HDMI standard cableOutput cable distance (1080p resolution) 25m, (4K resolution) 15m AWG26 HDMI standard cableHDMI input. 1HDMI output 16Max working current.... 2.15AP ower adapter format...
Input: AC (50HZ, 60HZ) 100V-240V;

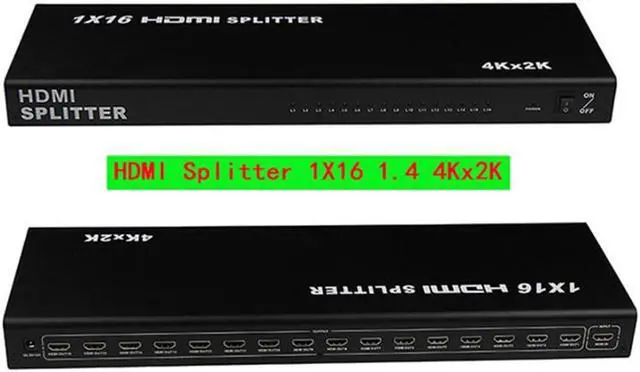

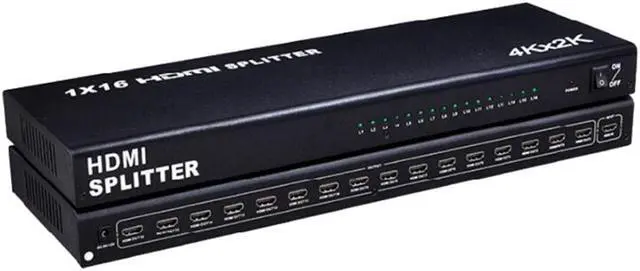

Output: DC12V/5AOperating Temperature range.. (-15 to +55)Operating Humidity range. 5 to 90%RH (No Condensation) Dimension (L x W x H) 460x150x40 (mm) Weight. 1680gOperating and Connecting1. Connect 1 HDMI cable from HDMI source devices into HDMI Splitter input. 2. Connect 16 HDMI cables from each displayers (monitors or projectors) into the HDMI Splitter outputs. 3. Connect 12V power supply to the HDMI Splitter 1x16. The 1x16 HDMI Splitter uses a single HDMI source, accessing to multiple HDMI sinks. It allows one HDMI device to be split easily to sixteen HDMI compatible monitors or projectors. The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal. Resolution up to 3840X2160/30Hz. FEATURESSupport HDMI 1.4 bSupport 3D video formatResolution up to 3840x2160/30HzSupport 3.2G bps data rate for TMDS clock up to 320MHz Support deep color 8/10/12bit Support AWG26
HDMI standard cable: when the resolution is 1080p and below, input up to 15 meters, output up to 25 meters when the resolution is 4K, input up to 12 meters, output up to 15 meters. Support displaying single source, multi-output high-definition signal source from DVD player A / V receiver, set-top boxNeed DC 12V/5A power supply
