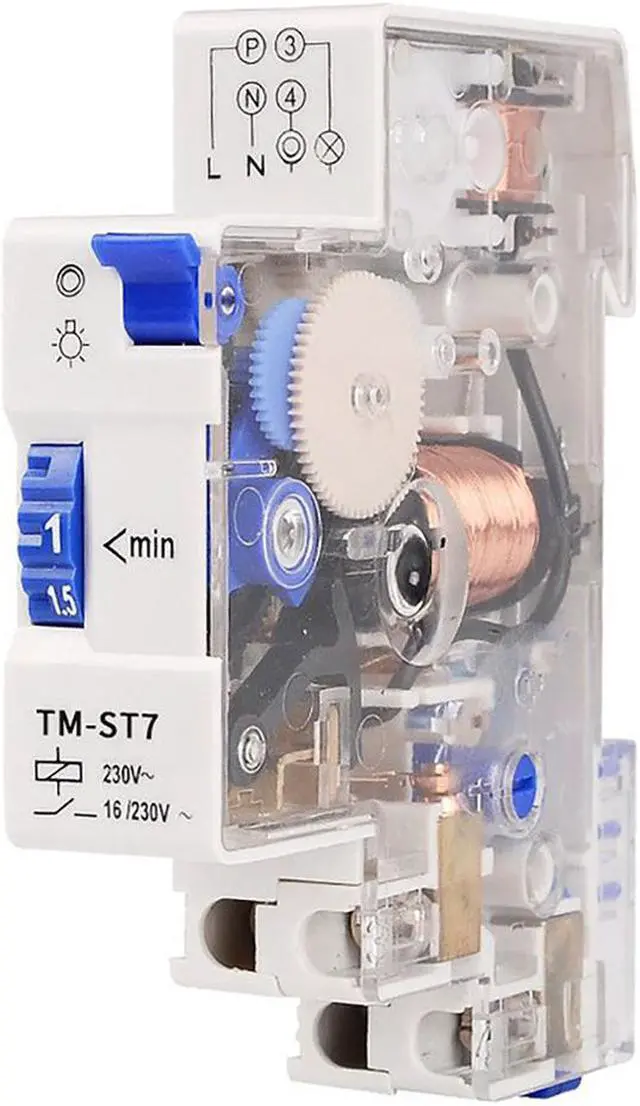

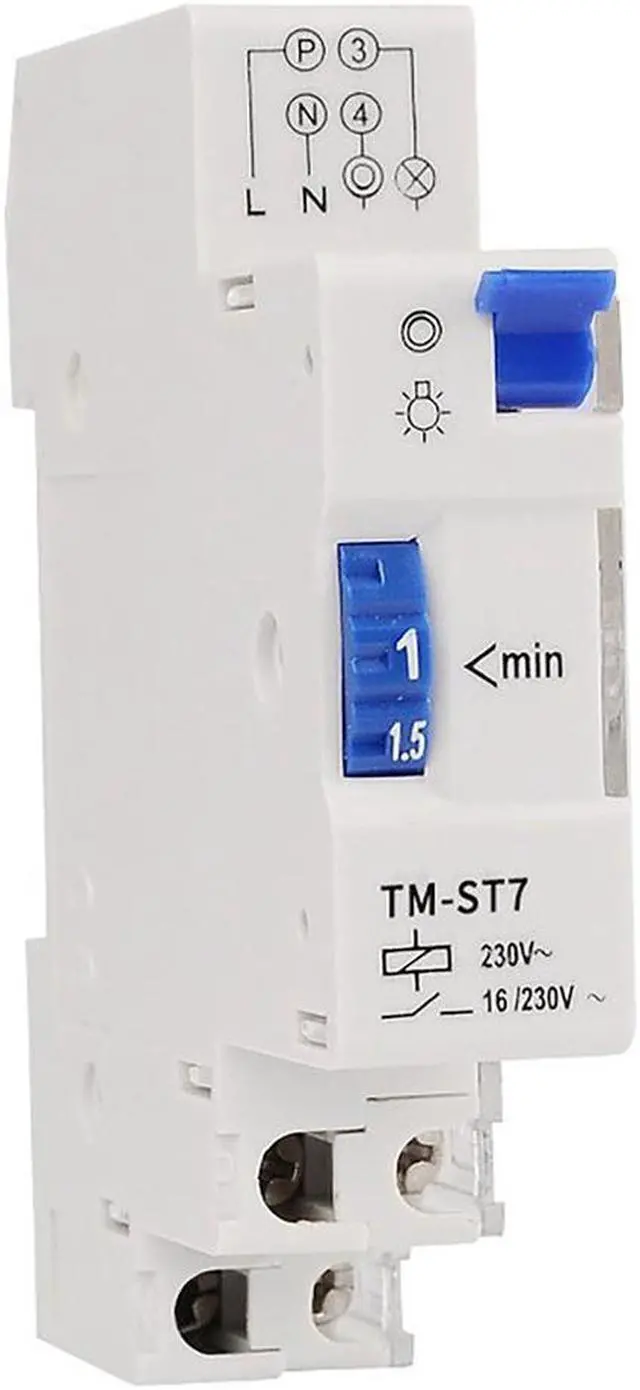

230V AC 7 Minutes Mechanical Timer 18mm Single Module Din Rail Staircase Timer Time Switch Timer Clock

Description: TM-ST7 din rail mechanical timer switch has low sensitivity to interference and good performance.
Specifications:

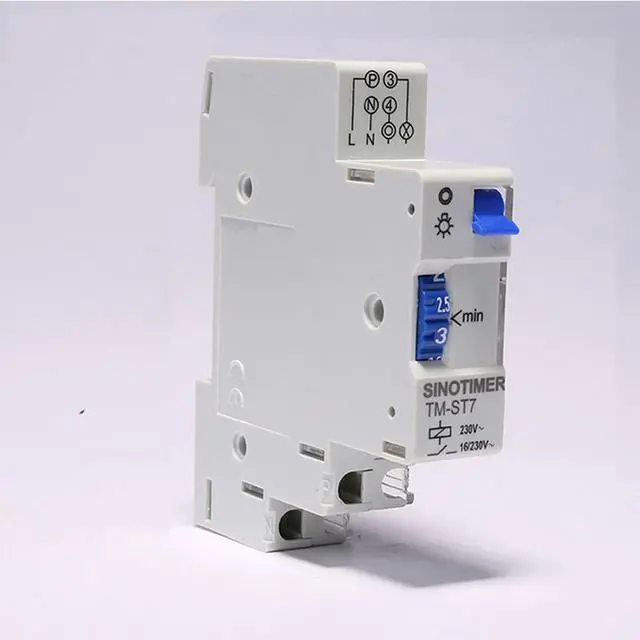

Brand: SINOTIMER
Model: TM-ST7Operating
voltage: AC
110-230VFrequency:
50HzWidth: 1
ModuleInstallation Type: Din
RailStand-by Consumption: 0WGlow
Lamp Load: 50mASetting
Range: 1-7 minMin.
Setting Unit: 0.5
Minutes Set Up Times: 1M, 1.5M, 2M, 2.5M, 3 M, 3.5M, 4M, 4.5M, 5M, 5.5M, 6M, 6.5M, 7M

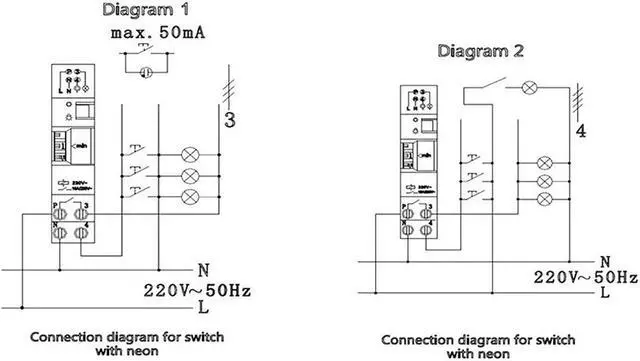

Type of Connection: 3-/4-ConductorsSecondary
Switching: After 30sType of
Contact: No
ContactOpening Width: >3 mmSwitching
Output: No Free Potential (230 V) Incandescent/Halogen
Lamp Load: 2300WFluorescent Lamp Load (Conventional)
Lead-Lag Circuit: 2300VAFluorescent lamp load (Conventional)
Parallel-Corrected: 1300VA 70 uFEnergy
Saving Lamps: 150WLED
Lamp2W: 30WLED
Lamp 2-8W: 300WLED
Lamp8W: 300WFluorescent
Lamp Load (Electronic Ballast): 600WFluorescent lamp load (Conventional)
Series-Corrected: 2300
VASwitching capacity: 6 A (at 230 V AC, cos = 0.3 ), 16 A (at 230 V AC, cos = 1)Switch for
Permanent Light: Toggle switchTest
Approval: CEHousing and
Insulation Material: High-Temperature Resistant, Self-Extinguishing
ThermoplasticAmbient Temperature: -10
C~+50 CProtection class: II In Accordance with EN 60730-1Type of
Protection: IP 20Max
Length: 82mm/ 3.23 inchMax
Width: 65mm/
2.56 inchThickness: 17mm/ 0.67 inch

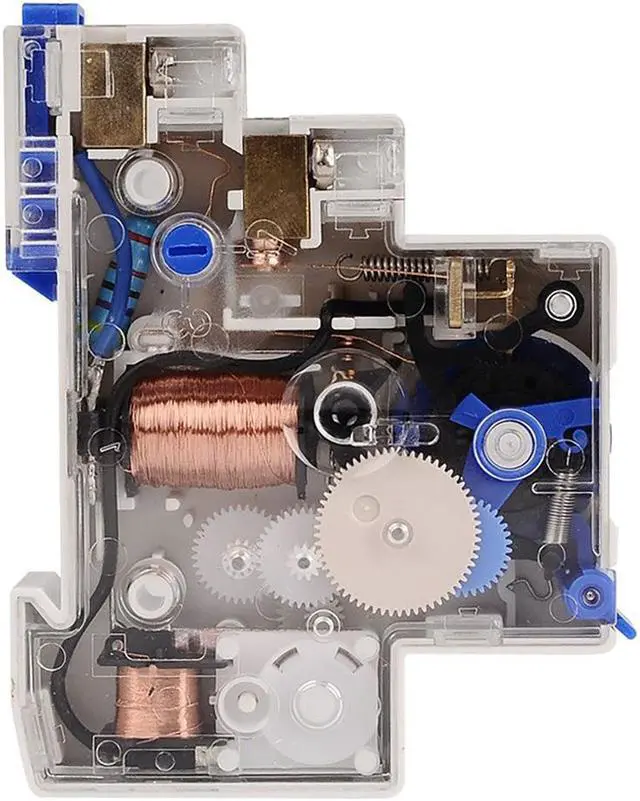

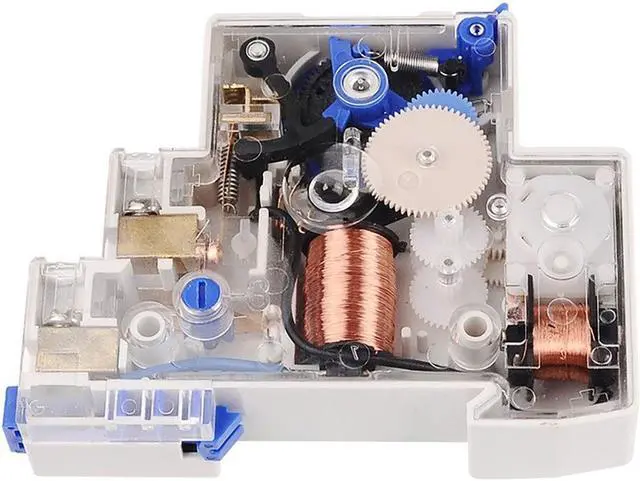

Features: 1. Staircase time switch, electro-mechcanical. 2. 4 conductor with floor lighting connection. 3. 3 conductor without floor lighting (no longer permitted for new systems). 4. No closed-circuit current consumption. 5. Toggle switch for permanent light ON. 6. Reliable due to synchronous motor drive. 7. Simplest possible time setting and direct delay time readout on absolute scale. 8. Precision mechanics and therefore exact switching period.
