Fusion Apollo AP-DA214 Zone Amplifier 2 Channel 140 Watt

Fusion Apollo AP-DA214 Marine Amplifiers, Zone

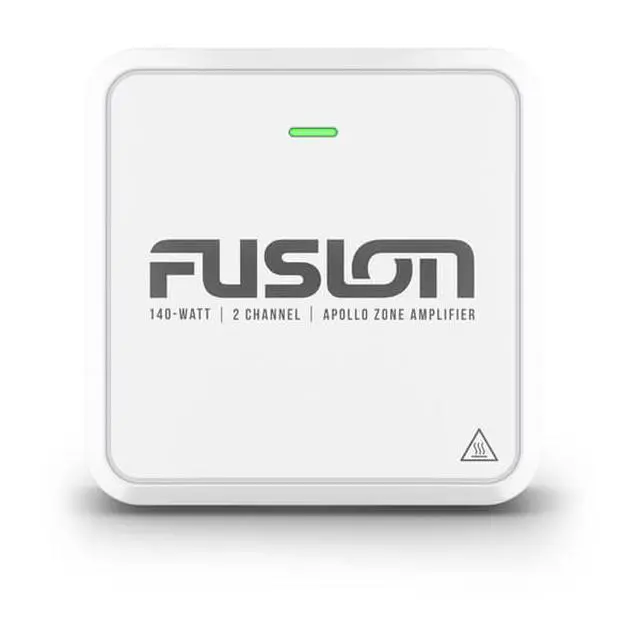

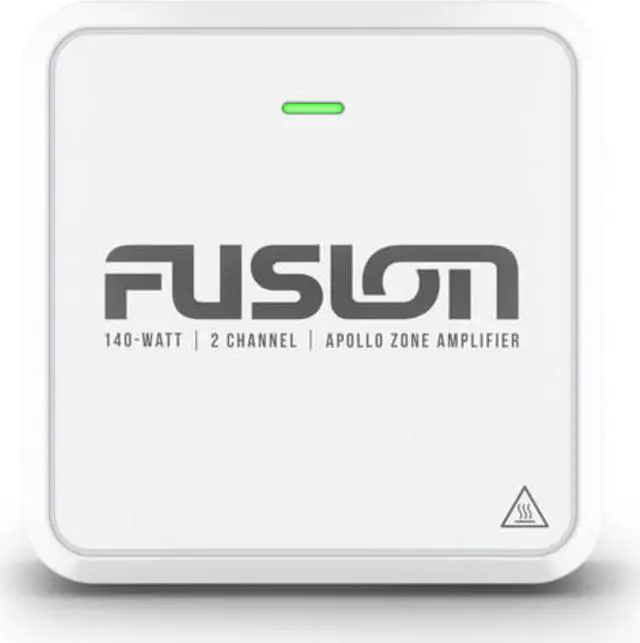

Marine AmplifierModel: 010-02569-00The amplifiers circuit board has been specially coated to provide extra protection from the marine elements. Identify electrical issues at a glance. These indicator lights will show you issues with electrical currents and shorts as well as temperature. Easily install the amplifiers on board with the included mounting brackets. The amplifiers are designed to last season after season. They have been tested to a high level of protection against salt fog, temperature, vibration and UV. The compact zone amplifier provides audio zone expansion for high-quality sound in more areas on your boat. Its compatible with 12- and 24-volt electrical systems.
Note: Fusion DSP-enabled marine stereo (Apollo RA770, Apollo RA670, Apollo WB670, MS-RA210) and Fusion speakers/subwoofers required. SpecificationsPhysical dimensions without bracket (LxWxH) 3.94" x 3.94" x 1.57" (100 x 100 x 40 mm) Physical dimensions with bracket (LxWxH) 3.94" x 4.53" x 1.89" (100 x 115 x 48 mm) Weight 1.01 lb (460 g) Water RatingIPX7Amplifier classClass-DCEA-2006 power rating20 watt RMS x 2 @ 14.4 V input - 4 ohm Total rated power output - 2 ohm (watts) 30 watt RMS x 2 @ 14.4 V input - 2 ohm Total rated power output - 4 ohm Bridged (watts) NAPeak power (watts) 140 wattsInput sensitivity 0.45 V RMSInput impedance9k OhmOperating voltage 10.8 V - 32 V DCCurrent consumption (StandBy) Current consumption (Idle) Current consumption (Max) 10 AFuse rating16 A electronic fuse (no replacement necessary) Ignition Safety Protected (SAE J1171) YesProtection circuitsReverse voltage Input under/over voltage Over temperature Output short circuitOperating temperature range32 to 122 F (0 to 50 C) What's in the
Box: One Apollo zone amplifierOne mounting bracketThree 6-guage, self-tapping screwsWiring loomInstallation instructionsImportant safety and product information (ISPI)
