      Vital 4

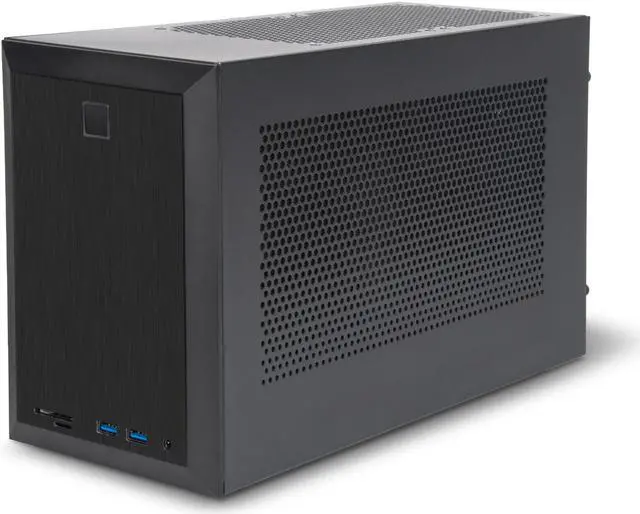

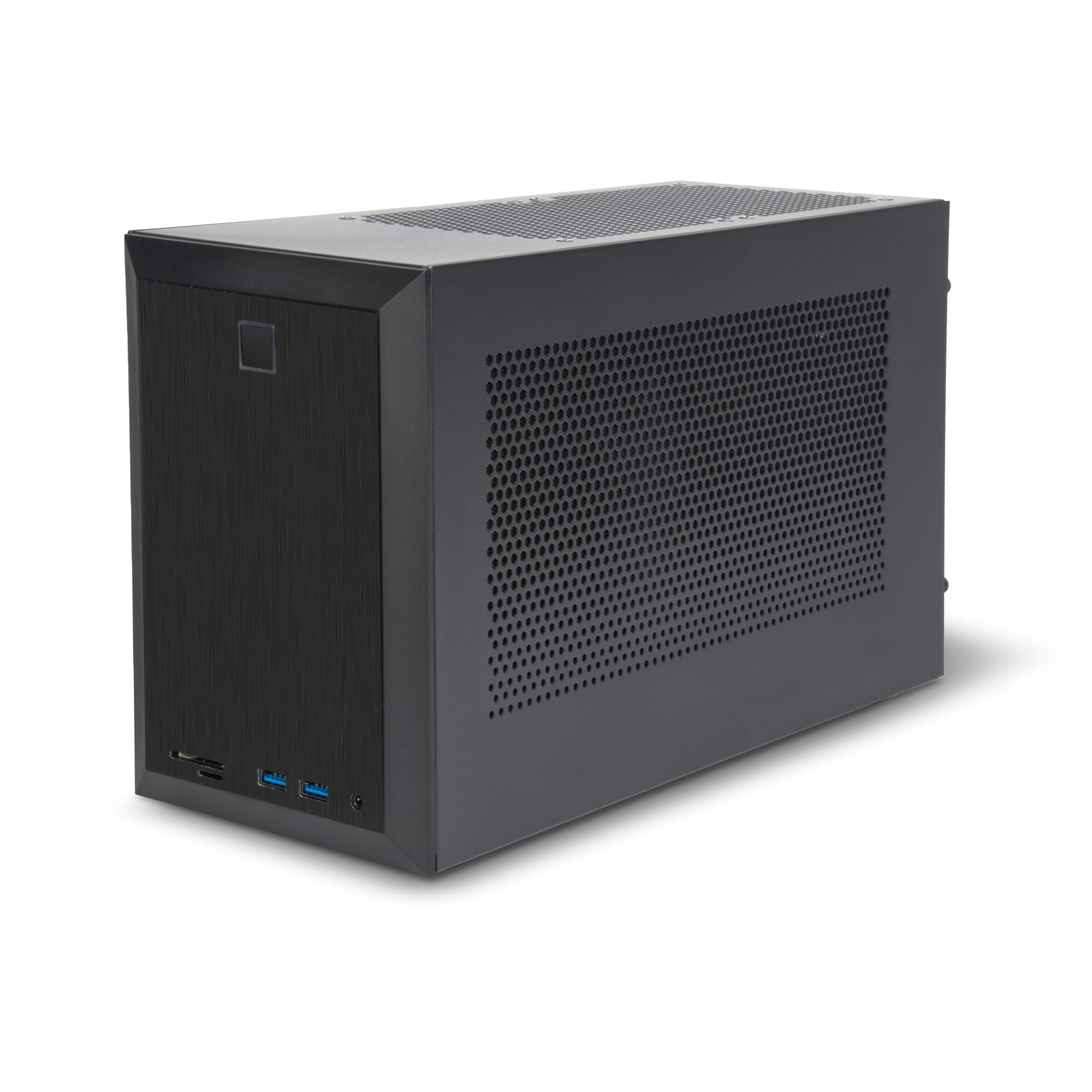

    Compact Intel® NUC Element H chassis

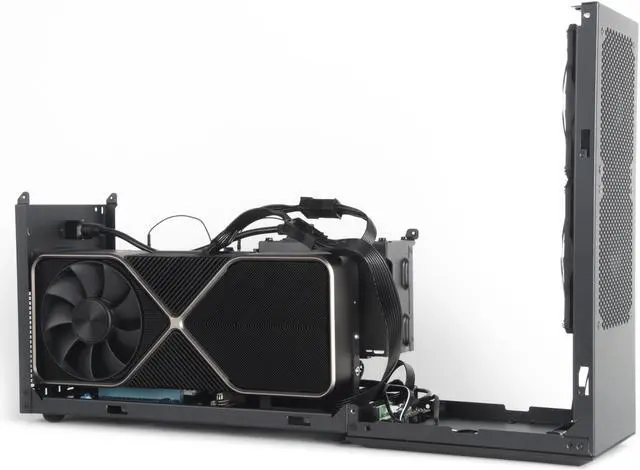

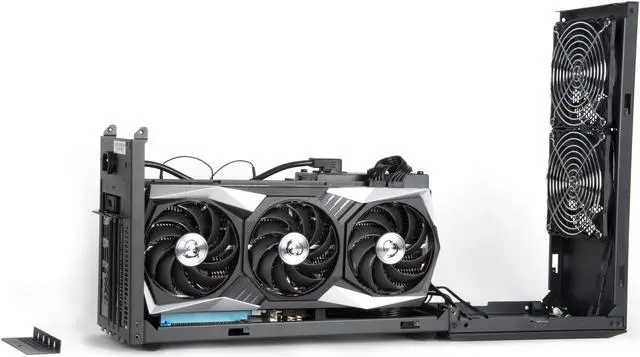

- Support up to 321mm high-end graphics cards including RX6000 series or RTX 3000 series
- Built-in antenna for Intel® Wi-Fi 6 and Bluetooth 5.0
- Key lock design for extra security
- Dual color LED power button, allows reading of hard drive activity status
- Equipped with 2 x 120mm PWM controlled fans to effectively dissipate internal system heat
- Support 1 x 2.5" SSD
- Front I/O includes 2 x USB 3.1 Gen 2, 1 x Audio & MIC, SD/Micro SD card reader
- Removable dust filters on left and right side
     Product Specifications


  | Model No. | SST-VT04B |
|---|---|
| Motherboard | Intel® NUC 9 Extreme Compute Element |
| Cooling system: Top | 120mm x 2 (Default) |
| Expansion slot | 3 |
| Power supply | 700W 80 PLUS Gold SFX Power (Default) |
| Front I/O port | USB 3.1 Gen2 x 2, Audio & MIC x 1, SD card reader x 1, Micro SD card reader x 1 |
| Extra | RF antenna x2 (Support 802.11AC & Bluetooth 5.0), Support Kensington locks |
| Material | Steel, plastic |
|---|---|
| Drive bay | Internal: 2.5" x 1 |
| Limitation of CPU cooler | (Intel® NUC 9 Extreme Compute Element built-in) |
| Limitation of VGA card | Length: 321mm; Width: 168mm |
| Limitation of PSU | 100mm |
| Dimension | 5.55" (W) x 8.11" (H) x 13.94" (D), 10 Liters |
