HELA 1650R Platinum
Easily and efficiently power high-end systems with the latest graphics cards.
Designed for Cybenetics Platinum level of efficiency, to minimize wasted heat while significantly reducing electricity consumption.
Included are flat cables that offer exceptional flexibility, enabling easy and efficient cable folding and management.
All Japanese electrolytic capacitors
Equipped with a 140mm FDB bearing fan that delivers exceptional airflow and operates quietly. It also features a delayed shut-off function, which extends the cooling process after the system powers down, helping to dissipate residual heat and protect sensitive components.
Product Specifications
| Product No. | SST-HA1650R-PM |
|---|---|
| Color | Black (lead-free paint) |
| Power density | 710.6W/L |
| Combined +3.3V & +5V | 130W |
| Input Voltage | 1650W: 103~264 Vrms; 1350W: 90~264 Vrms |
| PFC | Active PFC (PF>0.9 at full load) |
| MTBF | 100,000 hours |
| Protection | Over Current Protection Over Power Protection Over Voltage Protection Short Circuit Protection Over Temperature Protection Under Voltage Protection |

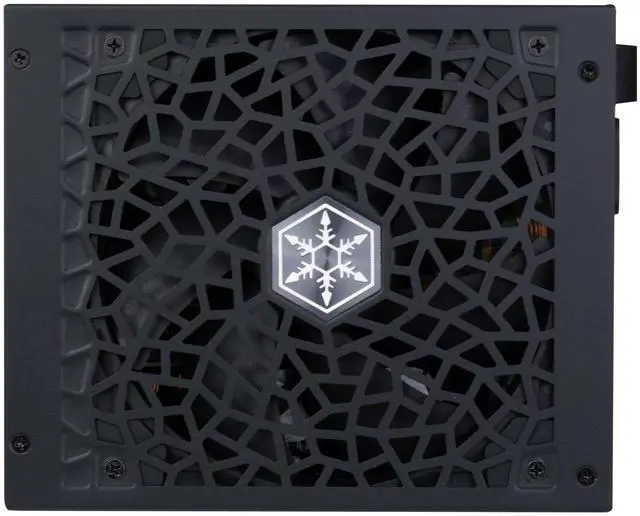

| Cooling System | Silent 140mm FDB fan |
| Certification | Cybenetics Platinum |
| Dimension | 5.91" (W) x 3.39" (H) x 7.1" (D) |
| Model (safety certification) | SST-AX1650MCPT-A |
|---|---|
| Max. DC Output | 1650W |
| Load Range | Output | +3.3V | +5V | +12V1 | +5VSB | -12V |||||||| Max Amps | 25A | 25A | 137.5A | 3A | 0.3A ||||||||| Min Amps | 0A | 0A | 0A | 0A | 0A |||||||||||||||||||| Range (%) | ±3% | ±3% | ±3% | ±5% | ±3% |||||||||| Line Reg. | ±1% | ±1% | ±1% | ±1% | ±1% |||||||||| Ripple (mV)| 40 | 40 | 80 | 40 | 80 |
| Combined +12V | 1650W |
| Input Frequency Range | 47Hz ~ 63Hz |
| Efficiency | 89% ~ 91% overall efficiency |
| Operating temperature | 0°C ~ 50°C |

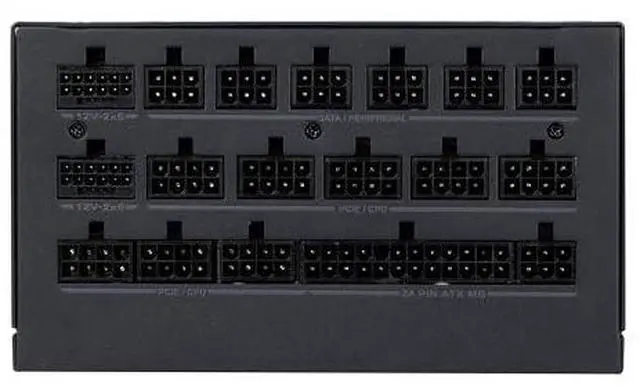

| Connectors | 1 x 24 / 20-Pin motherboard connector 2 x 8 / 4-Pin EPS / ATX 12V connectors 9 x 8 / 6-Pin PCIe connectors 2 x 12+4-Pin 12V-2x6 connectors 16 x SATA connectors 6 x 4-Pin Peripheral connector 1 x 4-Pin Floppy adapter connector |
| Noise Level | 18 dBA minimum |
| Form factor | ATX (PS2) |
| Weight | 3.83 kg |
