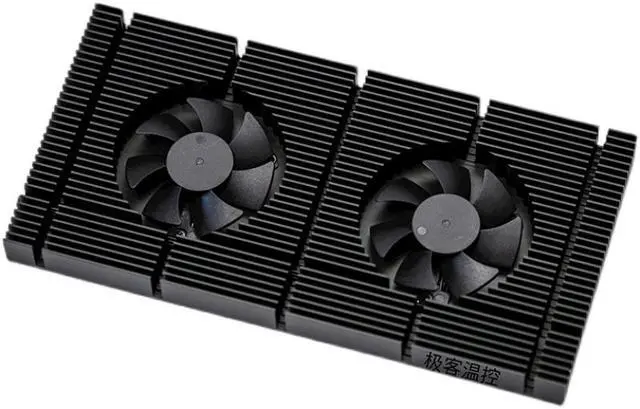

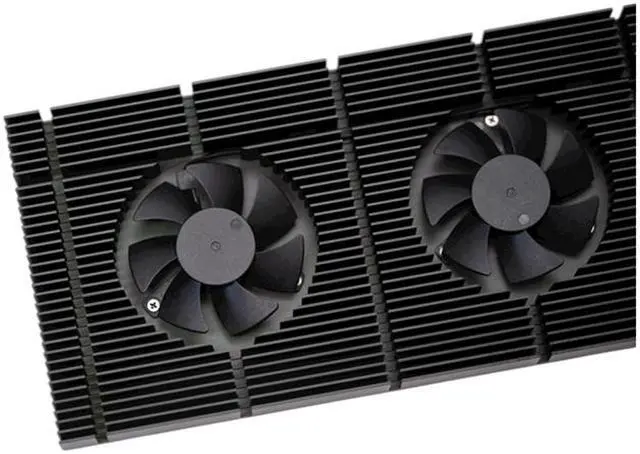

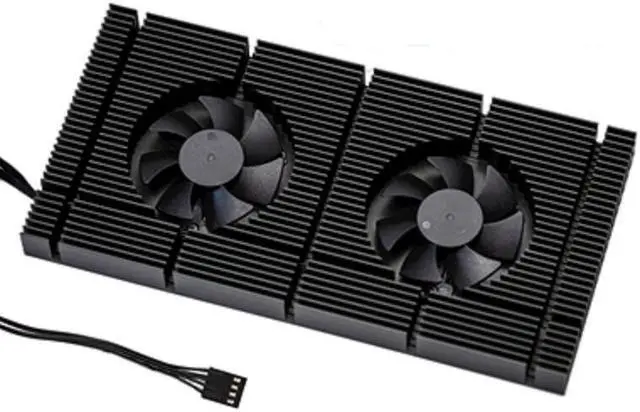

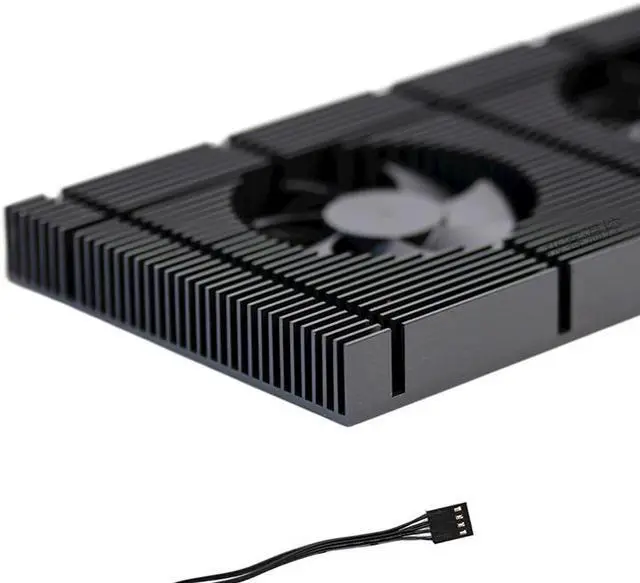

SXDOOL graphics card backplane heat exchanger RTX3090 backplane cooling fan memory cooling 3080/3070 radiator
- Solve the high temperature problem of 3090 graphics card backplane memory
- Dual fan integrated graphics card backplane radiator
- Anodized black CNC machining
- Standard dual 5010 fans, radiator thickness 15mm, air volume up to 20CFM, low noise hydraulic bearing, PWM speed control possible.
- Speed: 1500~5000RPM

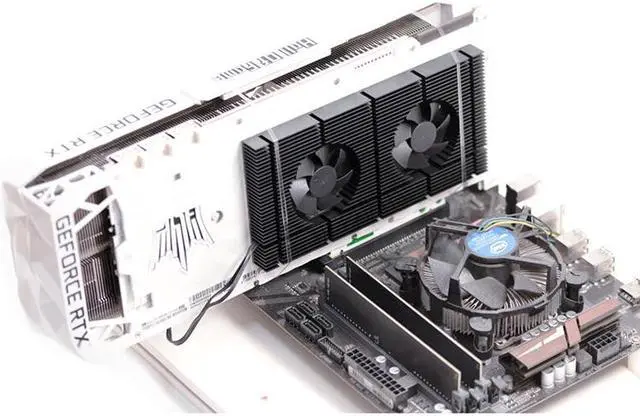

- There is video memory on the back of the 3090 graphics card, and the effect is more obvious after installing a radiator. The effect of installing a radiator without video memory on the back of the 3080 is not particularly obvious.
- Easy installation.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Body material: aluminum alloy
Body size: 90*180*15mm
Fan model: 5010 bracket
Fan speed: 1500-5000 ± 5% revolutions
Fan interface: small 4 pins, pulse width modulation speed can be adjusted
Fan air volume: 10.3CFM ± 5% (single)
Fan pressure: 2.5 mm/H2O ± 5% (single)
Maximum noise: 27.5 dB (single)
Bearing type: sleeve bearing
Wire length: 400 mm ± 10 mm Solve the high temperature problem of 3090 graphics card backplane memory Dual fan integrated graphics card backplane radiator Anodized black CNC machining Standard dual 5010 fans, radiator thickness 15mm, air volume up to 20CFM, low noise hydraulic bearing, PWM speed control possible.
Speed: 1500~5000RPM There is video memory on the back of the 3090 graphics card, and the effect is more obvious after installing a radiator. The effect of installing a radiator without video memory on the back of the 3080 is not particularly obvious. Easy installation.
Standard package: 1X radiator 1X (40mm X80mm X 0.5 mm) Tflex700 cooling pad 5X high temperature resistant rubber band The picture is a rendering, only the back plate radiator is sold.
Body size: 90*180*15mm
Fan model: 5010 bracket
Fan speed: 1500-5000 ± 5% revolutions
Fan interface: small 4 pins, pulse width modulation speed can be adjusted
Fan air volume: 10.3CFM ± 5% (single)
Fan pressure: 2.5 mm/H2O ± 5% (single)
Maximum noise: 27.5 dB (single)
Bearing type: sleeve bearing
Wire length: 400 mm ± 10 mm Solve the high temperature problem of 3090 graphics card backplane memory Dual fan integrated graphics card backplane radiator Anodized black CNC machining Standard dual 5010 fans, radiator thickness 15mm, air volume up to 20CFM, low noise hydraulic bearing, PWM speed control possible.
Speed: 1500~5000RPM There is video memory on the back of the 3090 graphics card, and the effect is more obvious after installing a radiator. The effect of installing a radiator without video memory on the back of the 3080 is not particularly obvious. Easy installation.
Standard package: 1X radiator 1X (40mm X80mm X 0.5 mm) Tflex700 cooling pad 5X high temperature resistant rubber band The picture is a rendering, only the back plate radiator is sold.
