Thermal Grizzly TG-WV-P2-H19R WireView Pro II GPU monitor Reversed TFT-IPS display 90° cable routing 12VHPWR GPU- Black
- ADVANCED GPU MONITORING FOR HIGH-END SYSTEMS - Tracks current, voltage, temperature and power draw directly on 12V-2x6 and 12VHPWR GPU

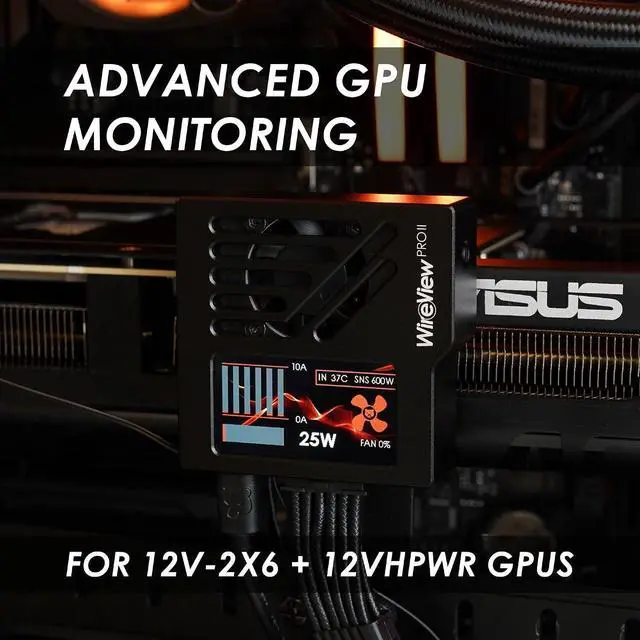

- LIVE DATA WITH PER-PIN PRECISION - Shows per-pin current values and key real-time readings on the integrated 320x170 pixel TFT-IPS display
- WARNINGS, LOGGING AND ACTIVE COOLING - Combines audible and visual alerts, 60-second data logging, temperature monitoring and a semi-passive 30 mm fan
- REVERSE VERSION FOR CLEAN CABLE MANAGEMENT - Latch on top and sense pin at the bottom; routes the cable toward the GPU cooler and also works as a 90-degree adapter

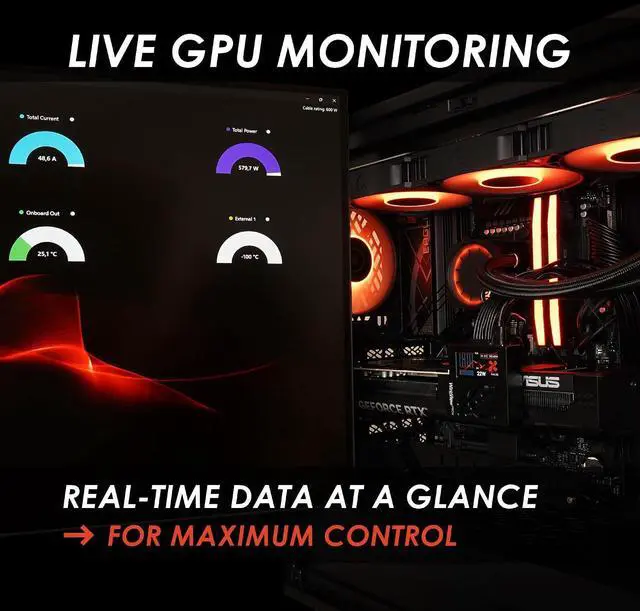

- HARDWARE-BASED OPERATION FOR GREATER SYSTEM SAFETY - Fully functional without software, optionally expandable via software and equipped with warning, logging and monitoring functions for early detection of critical load conditions
Any questions? Ask CelesteSM will help you find out quickly.
Thermal Grizzly WireView Pro II GPU 12V-2x6 Reverse: an in-line monitoring device that plugs into the 12V-2x6 power connector of a graphics card and measures the current on every single pin. This is the "Reverse" (R) version in black. Whether a card takes it or the "Normal" (N) version depends on the card's connector, so run the compatibility check below before ordering. It is also listed in white and as a Noctua Edition.
Properties

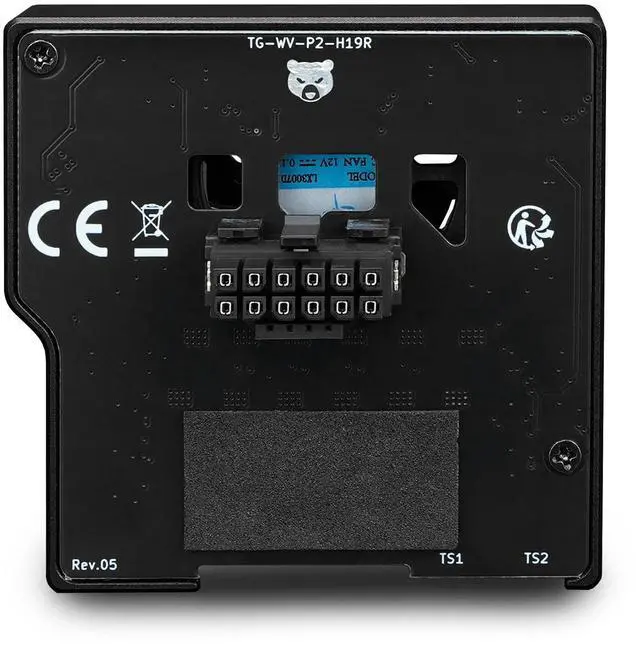

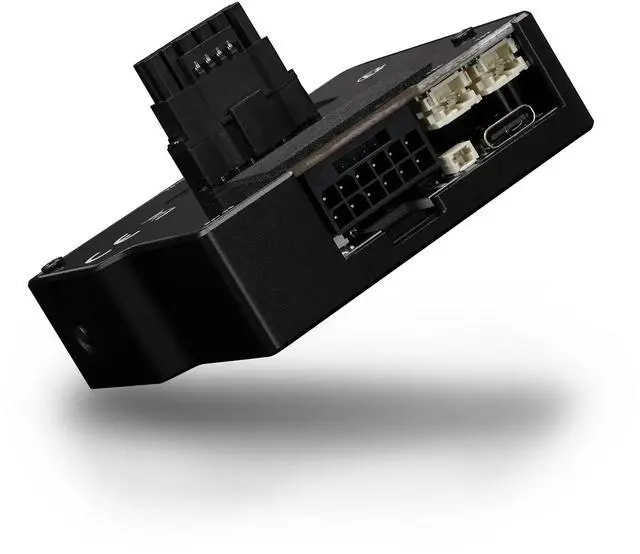

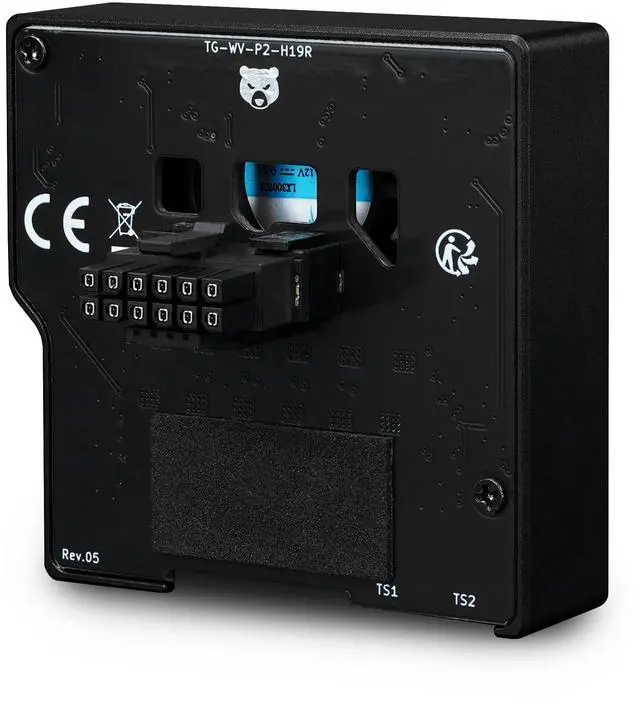

- Connector: 12V-2x6 (16-pin), "Reverse" (R) orientation, 90-degree adapter

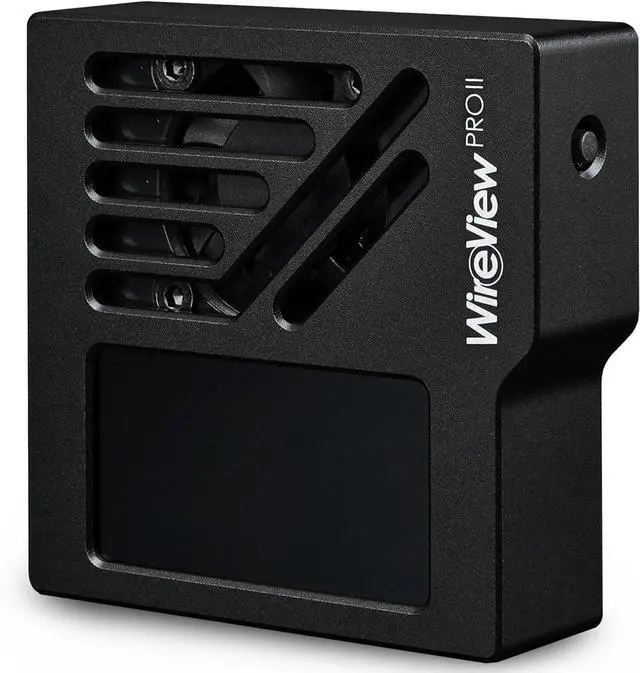

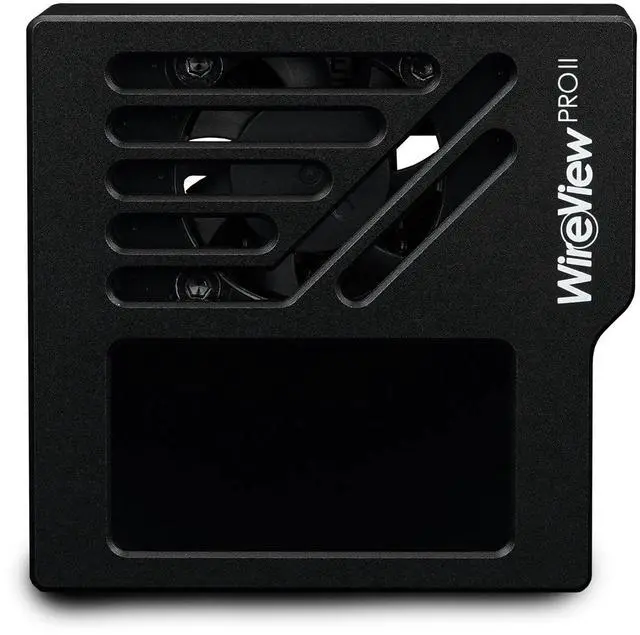

- Display: 320x170-pixel TFT-IPS color display
- Fan: Semi-passive, 30 mm
- Measurement tolerance: ±4 %
- Size: 62.5 x 65 x 20 mm
- Weight: 81.5 g, 194.5 g boxed
Normal or Reverse: check the card first

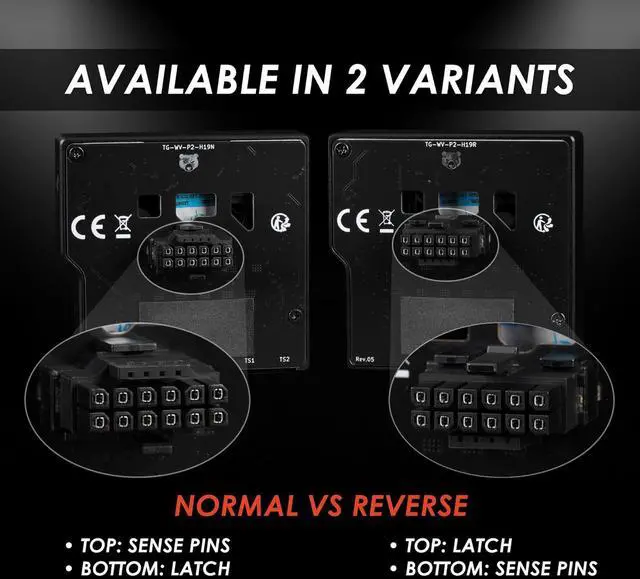

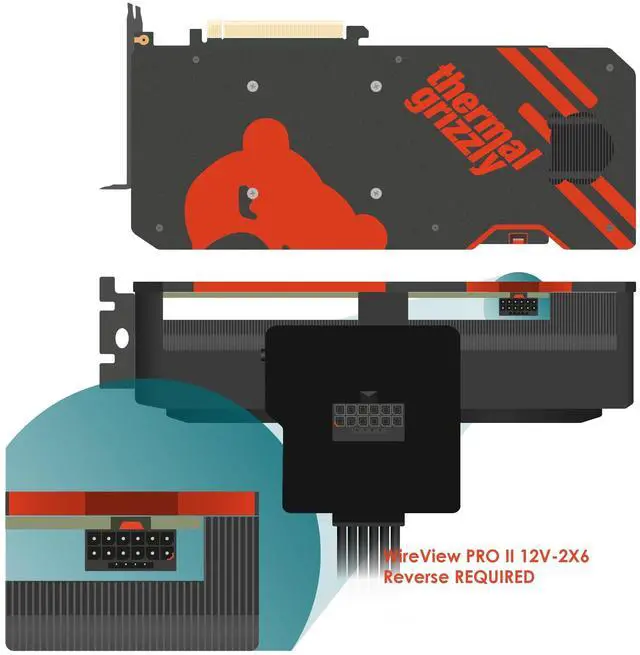

NOTE: the unit is available with the 12V-2x6 (16-pin) power connector (4x sensor + 12x power/ground) in "Normal" (N) and "Reverse" (R) versions, and the card decides between them. This is the "R" version. It is required if the graphics card has power connectors where the 12 power pins are located between the PCB and the four sensor pins (PCB - 12x power pins - 4x sensor pin). When the four sensor pins sit between the PCB and the 12 power pins instead (PCB - 4x sensor pin - 12x power pins), the card needs the "N" version.
Thermal Grizzly's Compatibility List names the tested cards for each version, RTX 5090, RTX 5080, RTX 5070 Ti, RTX 4090 and RTX 4080 models among them, plus the cards that take neither. Its technical drawing gives the dimensions for checking the clearances to the side panel of the case and to the CPU cooler.
Per-pin monitoring
Thermal Grizzly has specifically developed the unit for the demanding use of modern high-end graphics cards. It represents the most advanced iteration of the WireView Pro: an enhanced version with additional functionality. Current is not only measured as a total value, but also per each individual pin and wire of the connector, for what the manufacturer calls highest precision. That per-pin reading is what enables immediate identification of potential contact issues between the cable and graphics card. Thermal Grizzly purpose-built it to enable precise monitoring of the connector, allowing early detection of load distribution problems and helping to prevent possible damage to the card and its connector. The design is a patented development by Thermal Grizzly, protected by European patent EP4250057.

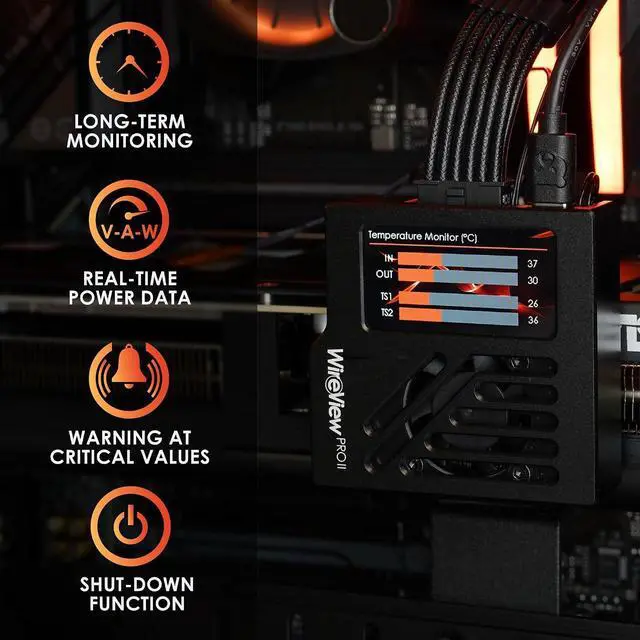

Safety-relevant parameters such as currents (A), voltages (V), temperatures (°C), and power consumption (W) are all measured continuously. Temperature monitoring happens at the input and output of the 12V-2x6 connector, and two external 10k NTC temperature sensors are included for other spots in the system. Thermal Grizzly has defined the preset threshold values as limits which should not be exceeded during regular operation, since doing so would increase the risk of thermal damage. When a threshold is exceeded, an audible alarm is triggered and a visual warning appears on the display. Automatic system shutdown can optionally be initiated as well, via the included splitter cable. The preset values can be adjusted through the configuration menu.
In the box
- WireView Pro II
- USB-C to USB 2.0 internal connection cable (60 cm)
- Y-splitter cable for power function via motherboard
- Short temperature sensor (5 cm)
- Long temperature sensor (20 cm)
