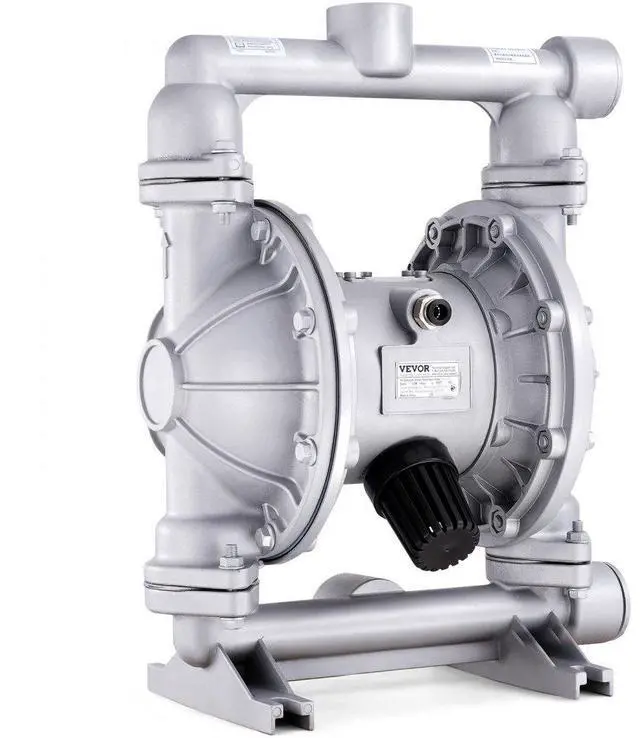

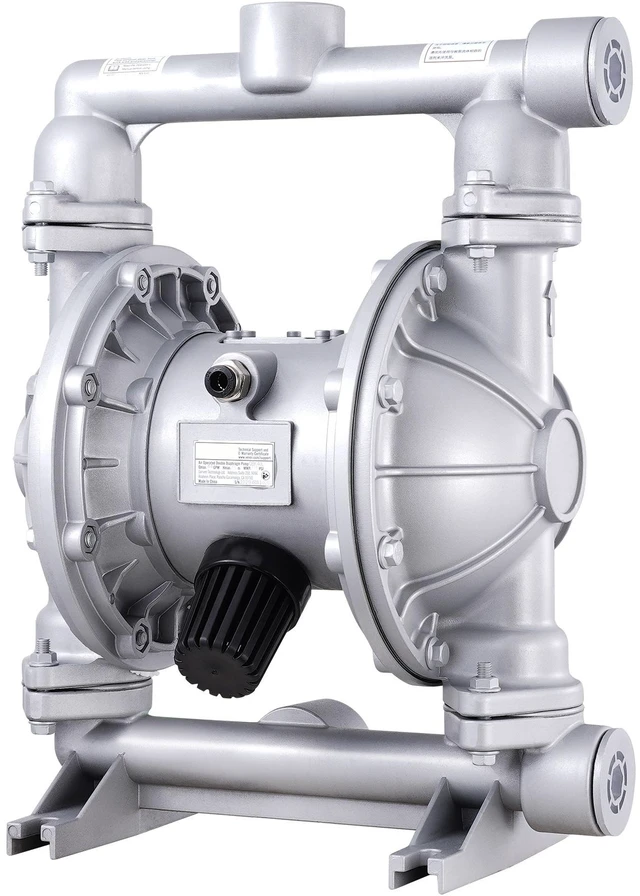

Air Operated Double Diaphragm Pump, 44GPM, Max 115PSI Air Waste Oil Pneumatic Transfer Pump with 2 Extra Diaphragms, 1-1/2 inch Inlet & Outlet Aluminum Alloy Diaphragm Pump for Diesel Grease Oil

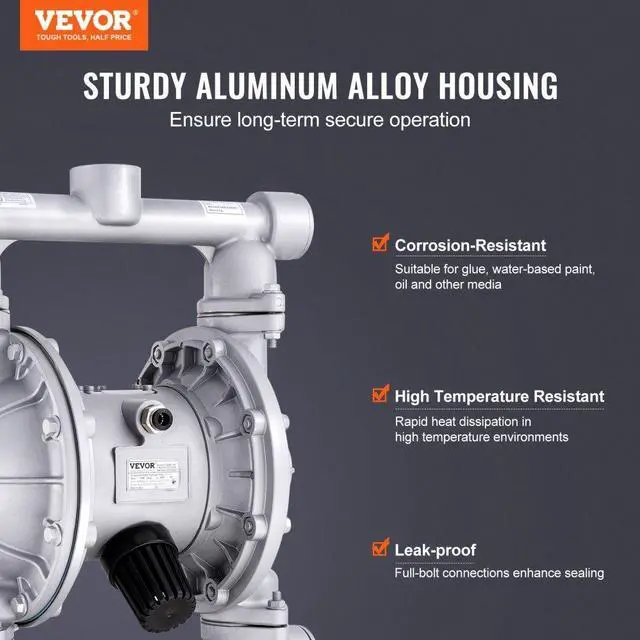

- Solid & Leak-Proof Design: Our air-operated double diaphragm pump housing is crafted with aluminum alloy and secured with a full-bolted structure, promising an unwavering bond between components for top-notch sealing. Get ready to experience a pump that's as tough as your demands!
- Premium PTFE Diaphragm: Our air operated diaphragm pump features state-of-the-art dual-layer PTFE diaphragms for exceptional corrosion resistance. Max. Flow Rate: 44 GPM. Max. Pressure: 115 PSI. Max. Head Lift: 226 ft/69 m. Ready to experience the difference? Let's power up your productivity!

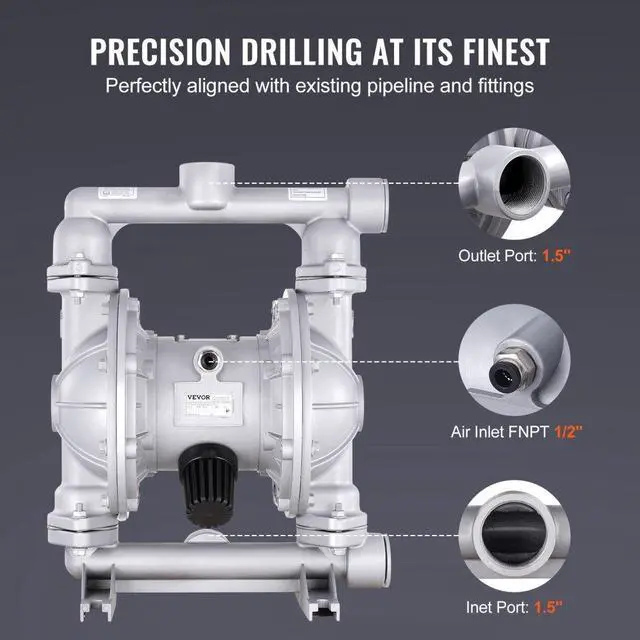

- Exceptional Pneumatic Performance: Elevate your fluid handling with our air diaphragm pump! It boasts standard inlet/outlet dimensions of 1.5 inches and an air inlet size of FNPT 1/2 inch, designed to seamlessly integrate with your existing pipelines and fittings, enhancing its pneumatic performance. Embrace the power of professional pneumatic design in your operations today!

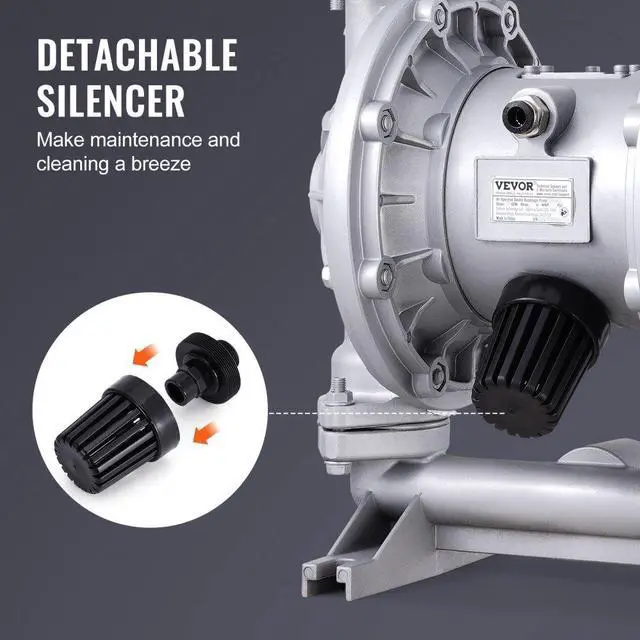

- Low Noise Operation: Our air transfer pump comes with an advanced silencer that minimizes noise to the lowest possible level, not only enhances the comfort of your working environment but also significantly reduces vibration and noise impact on the equipment itself, extending its lifespan.
- Fit for Multiple Fluids: Our waste oil pump is capable of processing a wide array of fluids from waste oil, alcohol, hydraulic oil, gasoline, diesel, and detergents to beverages.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

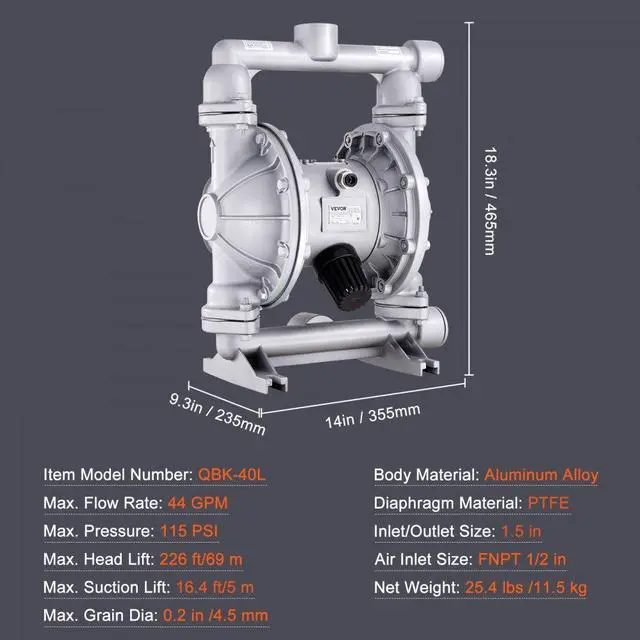

Specifications
Item Model Number: QBK-40L
Max.
Flow Rate: 44 GPM
Max.
Pressure: 115 PSI
Max.
Head Lift: 226 ft/69 m
Max.
Suction Lift: 16.4 ft/5 m
Max.
Grain Dia: 0.2 in / 4.5 mm
Body Material: Aluminum Alloy
Diaphragm Material: PTFE
Inlet/Outlet Size: 1.5 in
Air Inlet Size: FNPT 1/2in
Net Weight: 25.4 lbs / 11.5 kg
Package Content
1 x Air Operated Double Diaphragm Pump
2 x Replaceable Diaphragms
1 x User Manual
