1.5 HP Pool Pump Motor, 56Y Frame, 115V((12.8 Amps))/230V(6.4 Amps) 3450 RPM, 60Hz, 1.1 Service Factor, 90F/250V Capacitor, CCW Rotation Square Flange Replacement Motor
- Reliable Performance: 1.5HP pool pump motor runs at 3450RPM high speed, delivering high-efficiency water circulation and a refreshing pool pump system. Voltage - AC 115/230V; Amps: 12.8/6.4A ; Amps (Max Load): 14/7A ; SF: 1.1 ; Capacitor: 90F/250V ; Model Flange: 56Y.

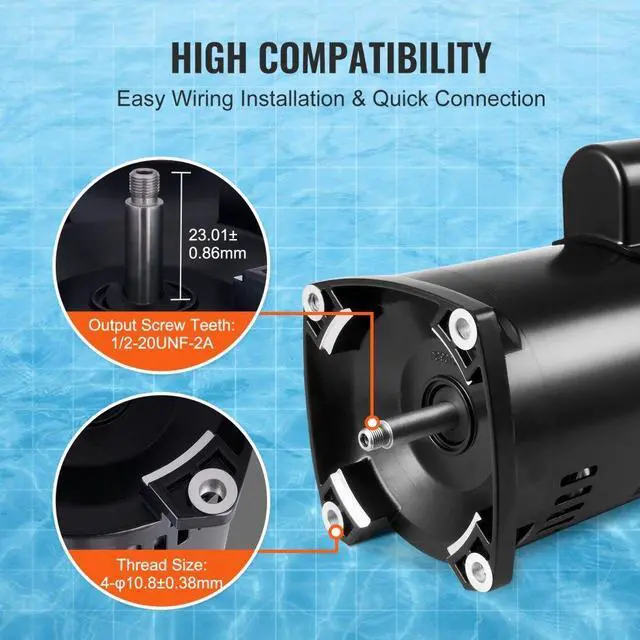

- Easy Installation: Installing our swimming pool pump motor is a breeze with a thread size of 4-10.8mm, output screw teeth of 1/2-20UNF-2A, and a 0.9-inch shaft extension. Get detailed installation instructions with the included user manual.

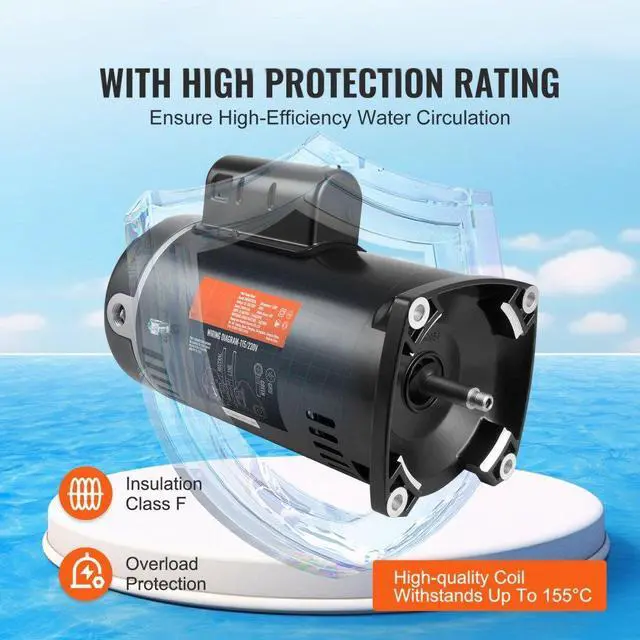

- Safety and Durability: Our 1.5HP pool pump motor is fortified with corrosion-resistant steel housing, low starting torque, and ball-bearing construction and overload protection, it ensures safe and enduring power support for pool system.

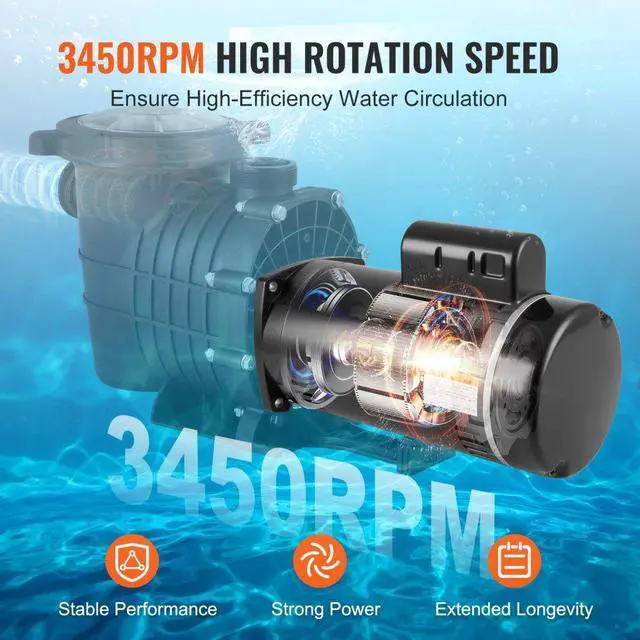

- High Efficiency, Energy-Efficient: pool pump motor combines powerful performance with minimal energy consumption, operating at 3450RPM high speed while maintaining 70db low noise level
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

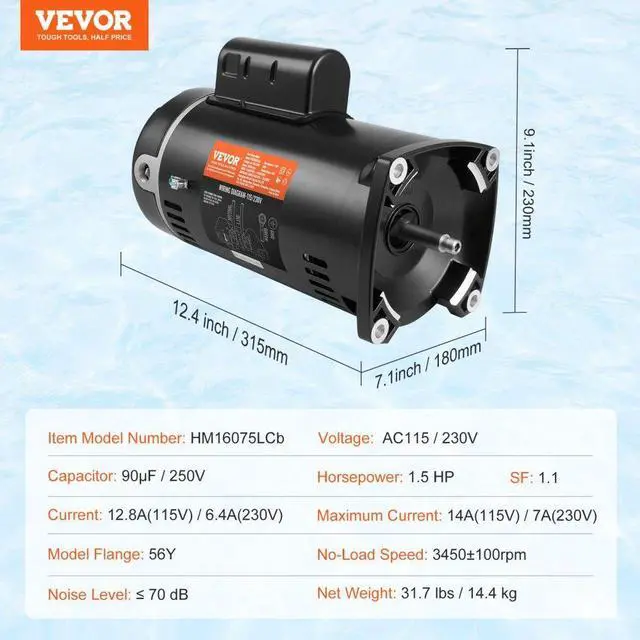

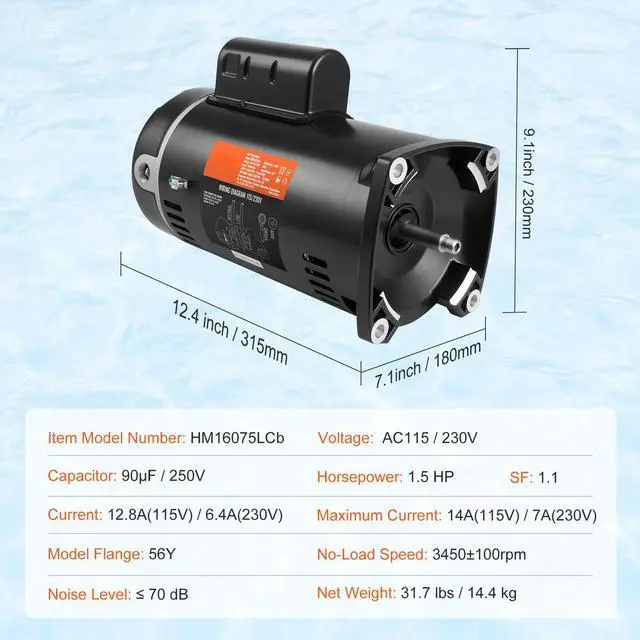

Specifications
Item Model Number: HM16075LCb
Voltage: AC 115/230V
Capacitor: 90F/250V
Horsepower: 1.5 HP
Current: 12.8A (115V) / 6.4A (230V)
Current (Max Load): 14A (115V) / 7A (230V)
Model Flange: 56Y
No-Load Speed: 3450 RPM
Noise Level: 70 dB
Product Dimensions: 12.4 x 7.1 x 9.1 inch / 315 x 180 x 230 mm
Package Content
1 x Instruction Manual
