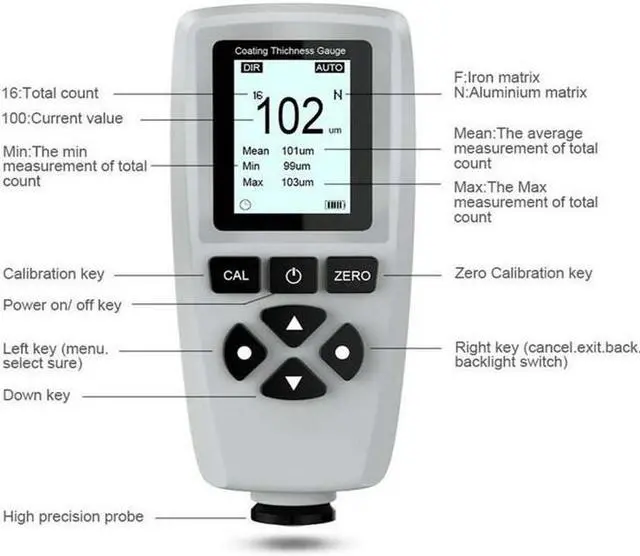

Intsupermai Coating Thickness Gauge Digital Thickness Meter with Backlight LCD Display EC-770S
- Features:
- Error: EC770 is 3% error mainly used for measuring paint film thickness, such as car paint, etc., EC770S is 2% error, more accurate, mainly used for measuring zinc plating chromium.
- The normal backlight is blue with backlight LCD dispaly. After the upper and lower limit alarm function is set, the screen will turn into a red screen.
- Probe: ordinary probe for EC770, ruby probe for EC770S, better measurement accuracy. The measuring range of this paint thickness gauge is 0 to 2000um(78.7mils). 4 general groups can store max.
- Inverted screen: long press the right dot button to switch the screen orientation.
- Widely Used: This coating thickness meter is suitable for laboratory, workshop, paint shops, automobile, shipbuilding, aircraft industries, etc.
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Parameters:
Measuring range: 0-2000um
Power: Two 7-gauge AAA batteries (without battery)
Operating temperature: 0-40?
Minimum measured area: 6 mm diameter
Minimum radius of curvature: concave 25MM convex1.5MM
Dimensions: 110MM*53MM*24MM
Alarm: Users can set up and down alarm lines. When an alarm occurs, the LCD screen will give a red alarm prompt
Minimum base thickness: 0.5MM (F probe) 0.3MM(N probe)
Calibration: Zero point calibration, and support a total of 4 point
Calibration Precision: 0um-99um(0.1um) 100um-999um(1um) 1000um-2000um(0.01um)
Computer interface: Data can be downloaded via USB port
Measuring range: 0-2000um
Power: Two 7-gauge AAA batteries (without battery)
Operating temperature: 0-40?
Minimum measured area: 6 mm diameter
Minimum radius of curvature: concave 25MM convex1.5MM
Dimensions: 110MM*53MM*24MM
Alarm: Users can set up and down alarm lines. When an alarm occurs, the LCD screen will give a red alarm prompt
Minimum base thickness: 0.5MM (F probe) 0.3MM(N probe)
Calibration: Zero point calibration, and support a total of 4 point
Calibration Precision: 0um-99um(0.1um) 100um-999um(1um) 1000um-2000um(0.01um)
Computer interface: Data can be downloaded via USB port
