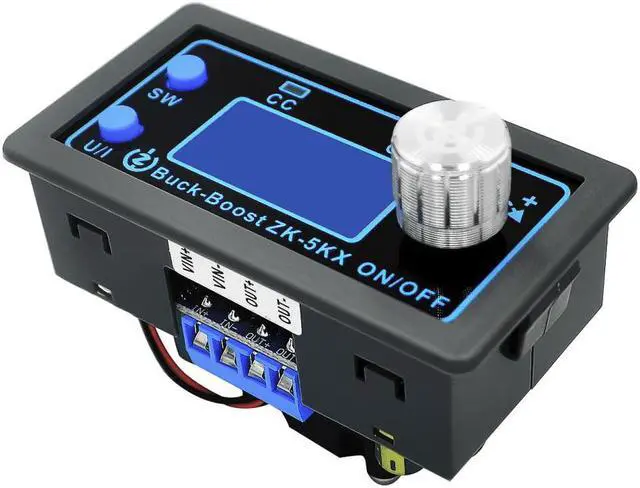

ZK-5KX DC DC Buck Boost Converter CC CV 6-30V 5A 80W 5V 6V 12V 24V Power Module Adjustable Regulated laboratory power supply

Origin:CN(Origin)
Condition:
Type:Logic ICs
Application:Computer
Operating Temperature:0-85
Supply Voltage:3-5v
Dissipation Power:1w
Package:TQFP
is_customized:Yes

Product parameter
Input voltage: 6.0-36V
Output voltage: 0.6-36V
Output current: 5A max
Output power: 80W
Voltage display resolution: 0.01V
Current display resolution: 0.001A
Conversion efficiency: about 88%
Soft start: Yes (it may fail when the module with high power load is started)
protection mechanism:
1. Input anti-reverse connection;
2. Output backflow prevention;
3. Input undervoltage protection (5.8-36V adjustable, default 5.8V)
4. Output overvoltage protection (0.6-36V adjustable, default 36V)
5. Output overcurrent protection (0 -5A adjustable, default 5A)
6. Output over power protection (0 -80W adjustable, default 80W)
7. Over temperature protection (80-110°C adjustable, default 110°C)
8. Timeout protection (0 -100h adjustable, closed by default)
9. Over-capacity protection (0 -60Ah adjustable, closed by default)
Working frequency: 120KHZ
Size: length * width * height 79mm*43mm*48mm
Weight: about 119g (including packaging)
